16.2 Ripple
Power ripple is an important parameter for evaluating DC power supply, which
indicates the ripple quantity of the output DC voltage. The ripple analysis can
measure the current value, average value, minimum value, maximum value, standard
deviation, and count value of the ripples on the power output terminal.
Click or tap the drop-down button of Type to select "Ripple".
TIP
1:1 probe is recommended for ripple measurement. For example, PVP2150 and PVP2350.
Set the Ripple Analysis Source
Click or tap the drop-down button
Source to select the desired source from the drop-
down list. The sources include CH1-CH4.
Set the Count
Click or tap the input field of Count to set the statistical count of the ripple analysis
with the pop-up virtual numeric keypad. You can also use the specified knob
indicated in the input field to set it. Its range is from 1 to 1,000. By default, it is 500.
Reset Statistics
Click or tap
Reset Stat. to clear the current data and execute statistics on the
measurement results again.
View the Statistics of the Measurement Results
Click or tap the ON/OFF tab for
Enable to enable or disable the display of the ripple
analysis results. When enabled, the statistical results will be displayed on the screen,
as shown in the figure below. Click or tap the close icon
at the upper-right corner
of the power analysis result interface to close the window.

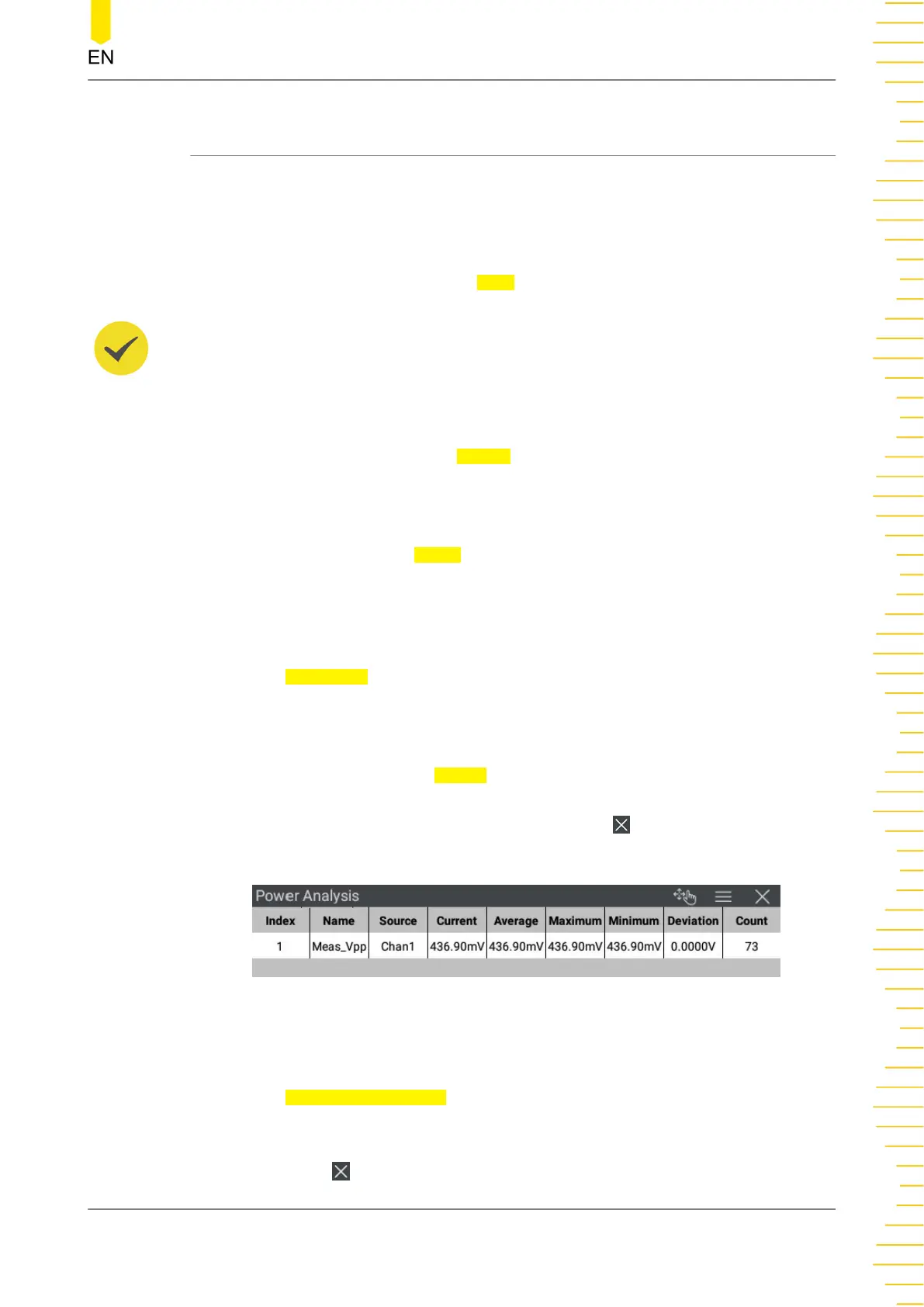

Figure 16.4 Ripple Analysis Result Display
View the Connection Diagram
Click or tap
Connection Diagram, and then the connection diagram of the ripple
analysis is displayed on the screen. Please connect the cables according to the
connection method in the diagram. To close the connection diagram window, click or
tap the close icon
at the upper-right corner of the connection diagram window.
Power Analysis (Option)
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
207
