Chart Display
The Bode plot chart display is as shown in the figure below. It shows the frequency,
gain, and phase of all sample points. Click or tap to open the bode plot setting
menu. Click or tap to close the Bode plot chart and disable the Bode function.

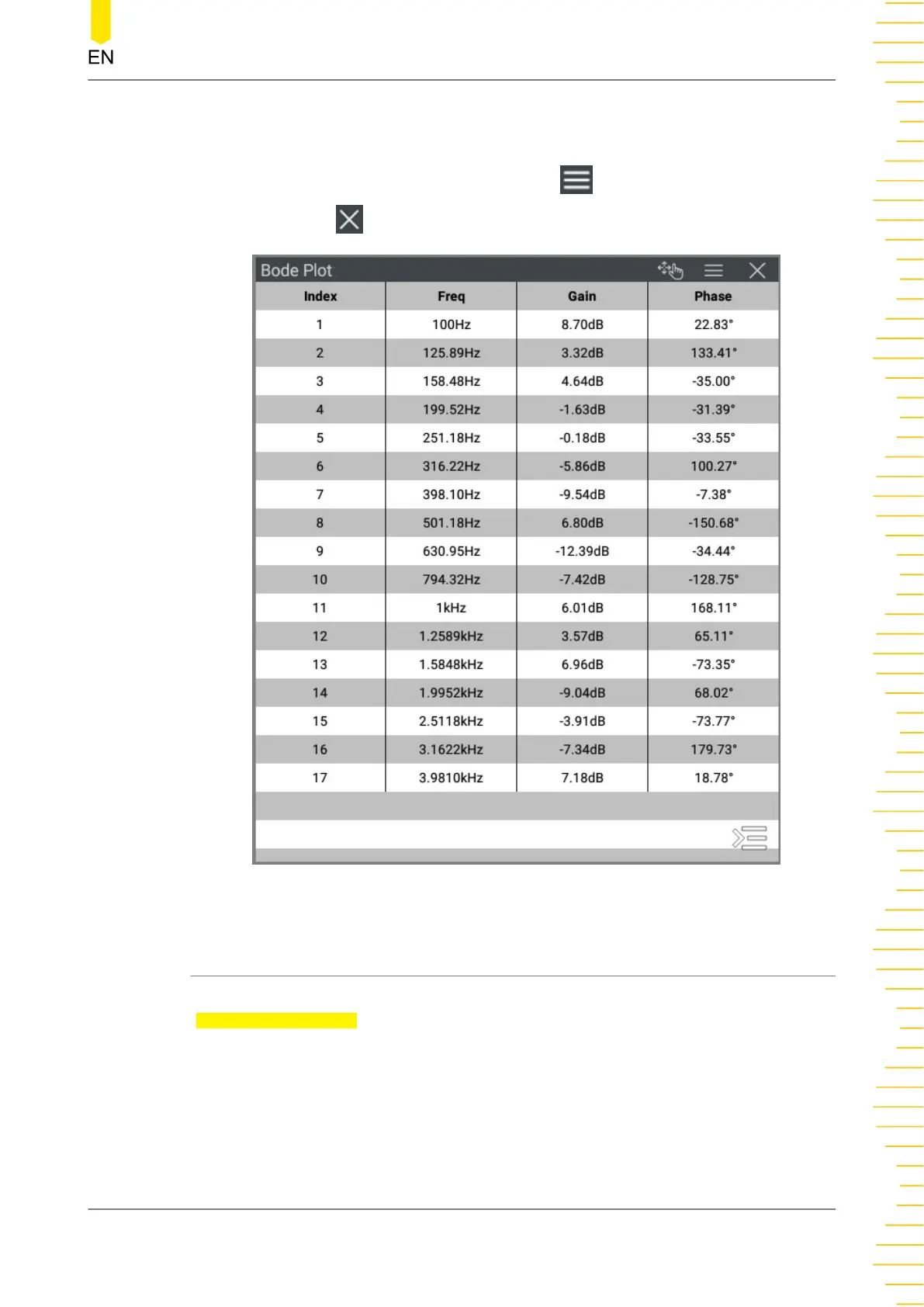

Figure 15.4 Bode Plot Chart Display
15.1.6 To View the Connection Diagram
Before enabling the Bode plot function, make a proper loop connection. Click or tap
Connection Diagram to view the loop connection diagram. According to the
connection diagram, connect the front-panel AFG output interface of the oscilloscope
to the isolation transformer. Input the output signal of the isolation transformer to
the ends of the injection resistor of the circuit under test. Then measure the signals at
the input terminal and the output terminal.
Bode Plot
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
201
