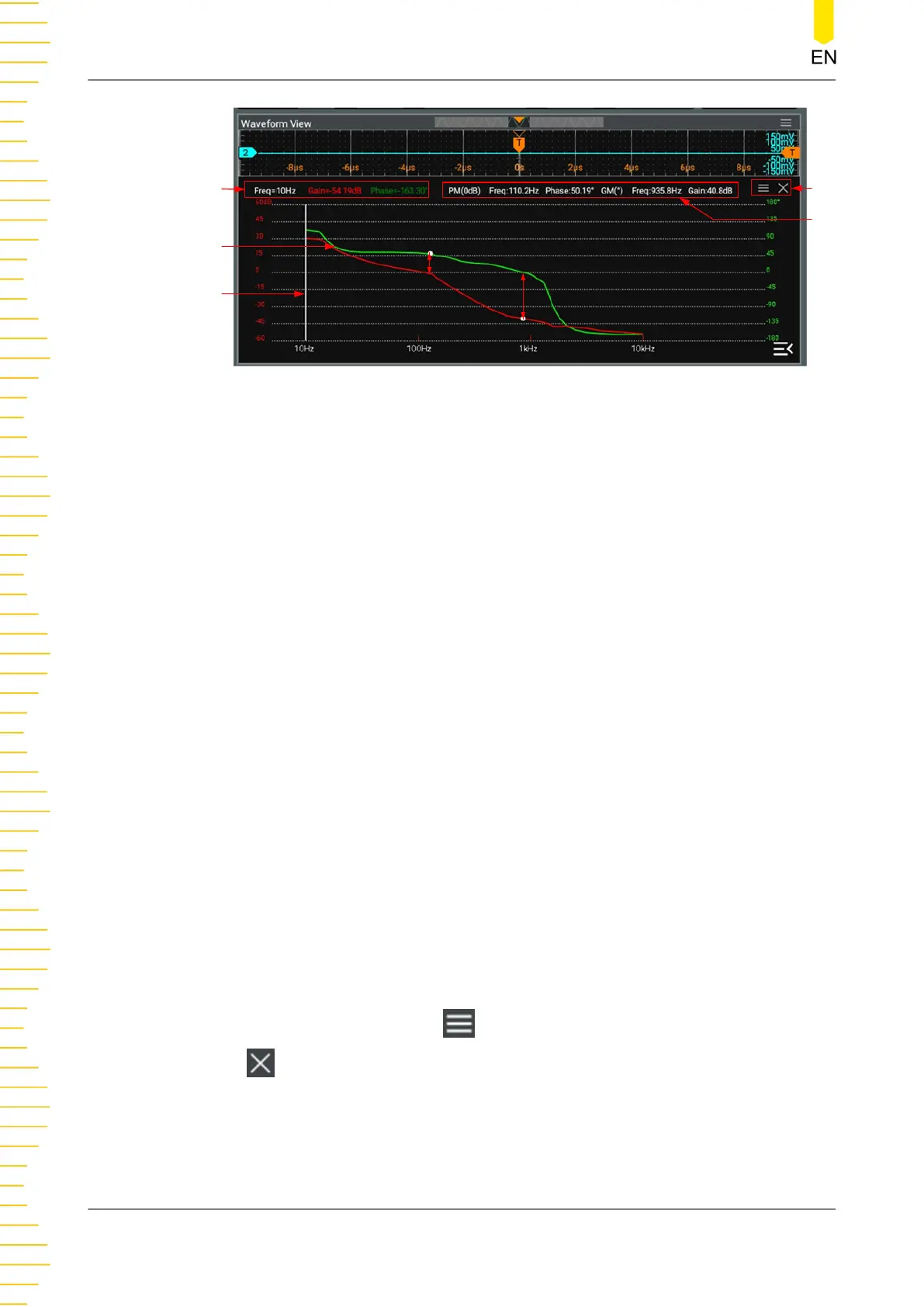

Figure 15.3 Bode Plot Displayed in Waveform Display Form
1. Cursor: rotate the specified multifunction knob to move the cursor. The cursor
information is displayed in the upper-left corner of the Bode plot.
2. Bode plot curves: magnitude-frequency curve (indicated in red) and phase-
frequency curve (indicated in green).
3. Cursor information display:
- Freq: indicates the X-axis value where the cursor is located in the Bode plot.
- Gain: indicates the Y-axis value of the crossing point between the cursor and
the red magnitude-frequency curve.
- Phase: indicates the Y-axis value of the crossing point between the cursor and
the green phase-frequency curve.
The cursor appears as a white vertical line in the Bode plot waveform display. You
can rotate the specified multifunction knob to adjust the cursor position and view
information about each point.
4. Margin result (displayed when the Bode plot operation stops):
- PM: phase margin. It is the difference in phase between the phase at 0 dB gain
frequency point and 0-degree phase.
- GM: gain margin. It is the gain measurement difference between the value at 0
dB and the frequency point at 0-degree phase. That is, GM = 0 dB - Gain
Measurement Value.
5. Operation button: click or tap
to open the Bode plot setting menu. Click or
tap
to close the Bode plot waveform display window and disable the Bode
function.
