15
Bode Plot
Bode plot is a way of graphically displaying the frequency response of a system. In
the switching power supply and operational amplifier's circuit feedback network, the
Bode plot provides the curves displaying the variation of gain and phase with the
frequency for a loop analysis. The analysis on the system's gain and phase margins
enables you to test the stability of the system.
With the built-in signal generator module, the digital oscilloscope generates the
sweep signal of a specified frequency range and outputs to the switching power
supply circuit under test. Then, the oscilloscope draws a Bode plot displaying the
variation of phase and gain with different frequencies. Click or tap the function
navigation icon
at the lower-left corner of the screen, and then select Bode Plot
to enter the Bode plot setting menu.

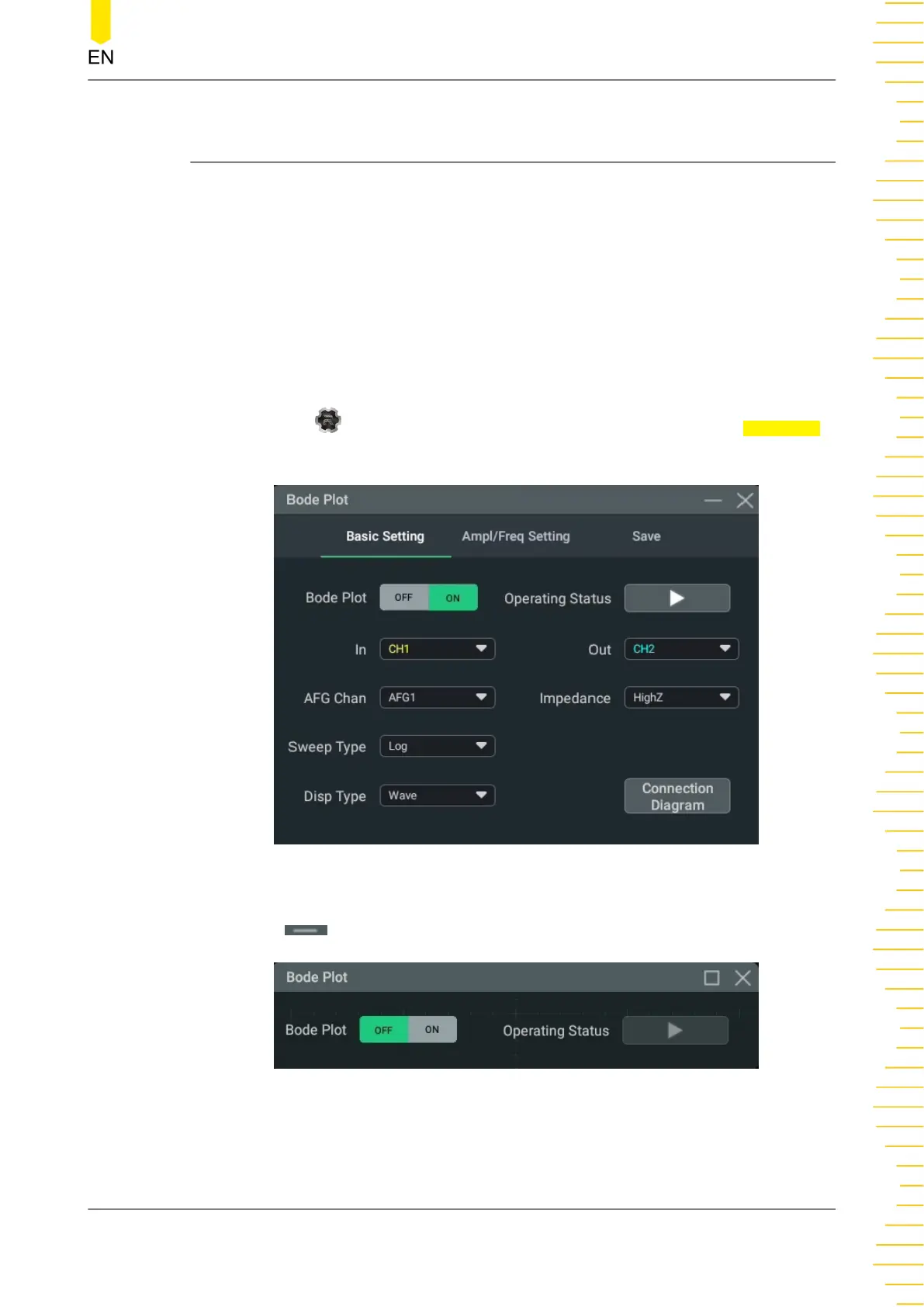

Figure 15.1 Bode Plot Setting Menu
Click or tap to minimize the Bode plot window.
Figure 15.2 Minimized Bode Plot Window
Bode Plot
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
197
