TIP
The frequency deviation plus the carrier frequency must be less than or equal to the selected
carrier's maximum frequency.
Set the Modulation Frequency
When you select the modulating waveforms other than Noise, you can set the
modulation frequency. Click or tap the input field of Mod. Freq to set the modulation
frequency with the pop-up numeric keypad. You can also use the specified knob
indicated in the input field to set it. The available range of the FM frequency is from 2
mHz to 1 MHz.
Enable the Modulation Output
Click or tap ON for Mod. State to enable the modulation function. In the Basic
Waveforms interface, click or tap ON for
Output to enable the waveform output.
Then the modulated waveforms will be output from the specified AFG terminal based
on the settings.
14.2.3 PM
PM (Phase Modulation), namely the phase of the carrier waveform changes with the
voltage of the modulating waveform.

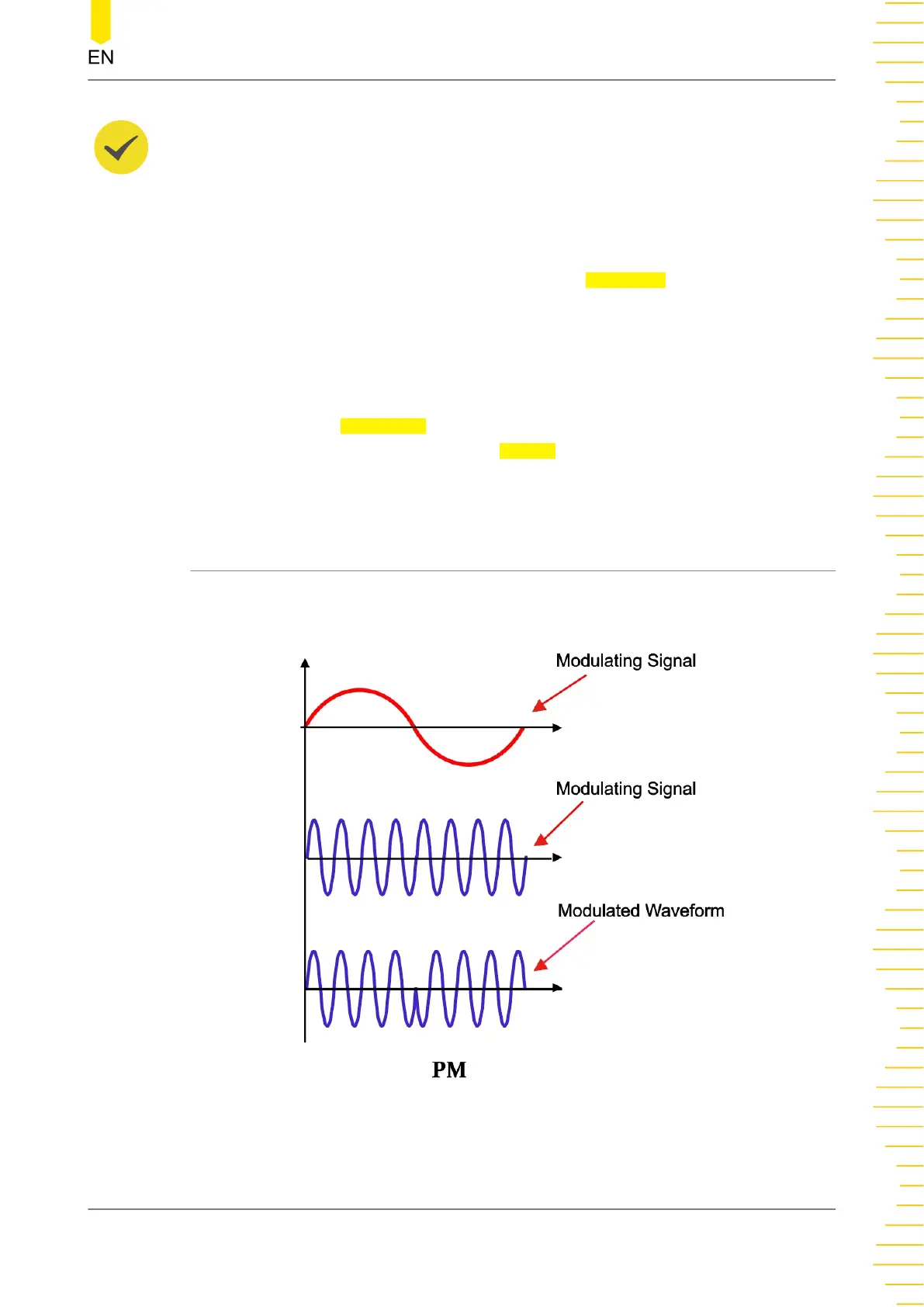

Figure 14.12 PM
Function/Arbitrary Waveform Generator (Option)
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
195
