Modulating Signal
Carrier Signal
Modulated Waveform

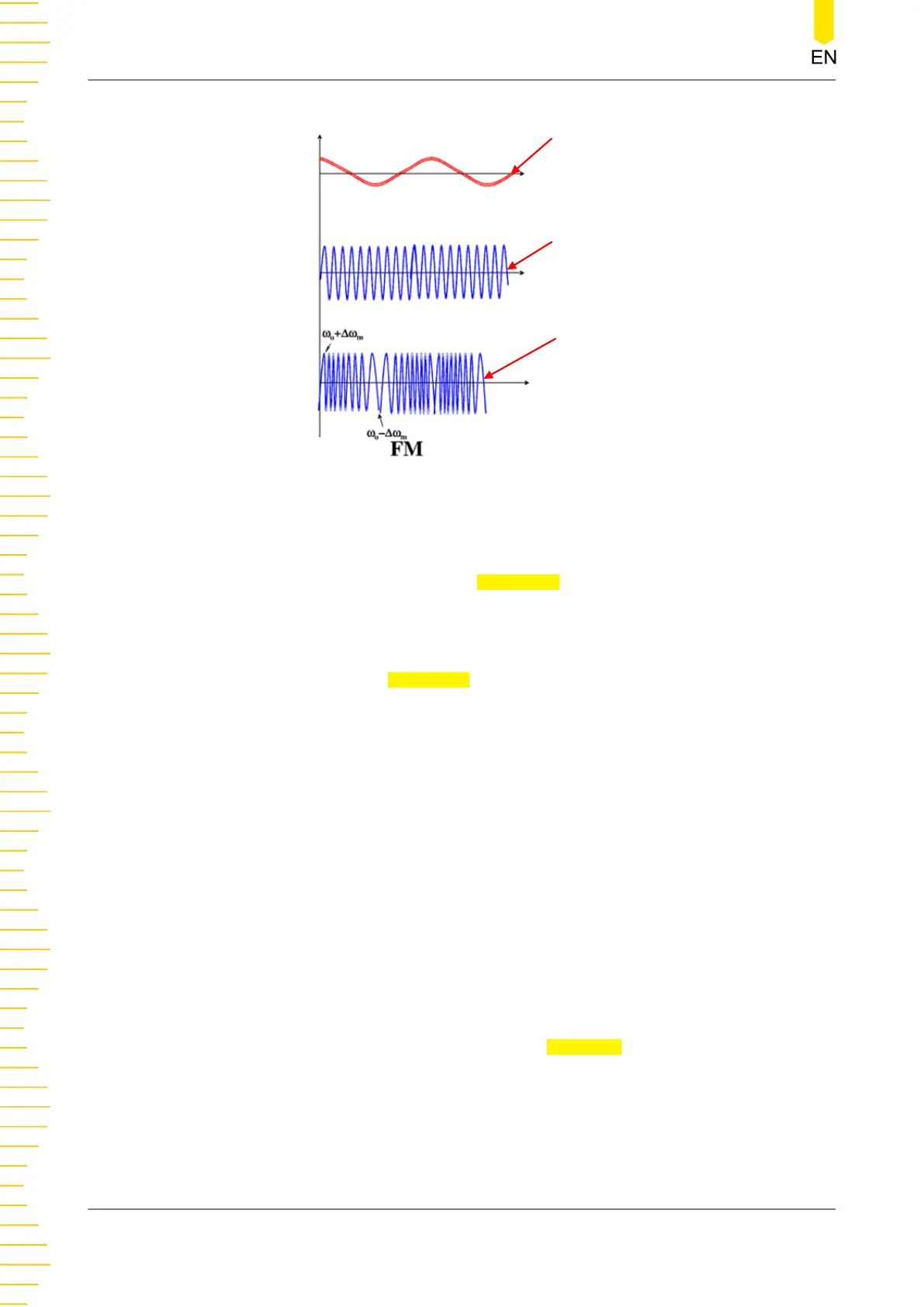

Figure 14.11 FM
Select the Modulation Type
Click or tap the drop-down button of Mod. Type to select "FM".
Select the Modulating Waveform
The instrument uses the built-in signal to perform waveform modulation. Click or tap
the drop-down button of
Waveform to select the modulating waveform. The
available waveform types include:
• Sine
• Square with 50% duty cycle
• Triangle with 50% symmetry
• UpRamp with 100% symmetry
• DnRamp with 0% symmetry
• Noise - white gaussian noise
Set the Frequency Deviation
It represents the peak variation in frequency of the modulated waveform from the
carrier frequency. Click or tap the input field of
Deviation to set the frequency
deviation with the pop-up numeric keypad. You can also use the specified knob
indicated in the input field to set it. The settable FM frequency deviation range is
from 2 mHz to the current frequency of the carrier waveform.
Function/Arbitrary Waveform Generator (Option)
MHO2000 User Guide
194
