those waveforms that are not supported as the carrier waveforms, the modulation
function is unavailable.
3. Click or tap the drop-down button of Mod Type to select the desired modulation
type. Then configure the parameter settings for the selected modulation type.
4. Set the Mod. State to "ON". The modulated signal can be output from the
specified front-panel AFG channel (G1 or G2).
The following section introduces the three modulation types.
14.2.1 AM
AM (Amplitude Modulation), namely the amplitude of the carrier waveform changes
with that of the modulating waveform, as shown in the figure below.
Modulating Signal
Carrier Signal
Modulated Waveform

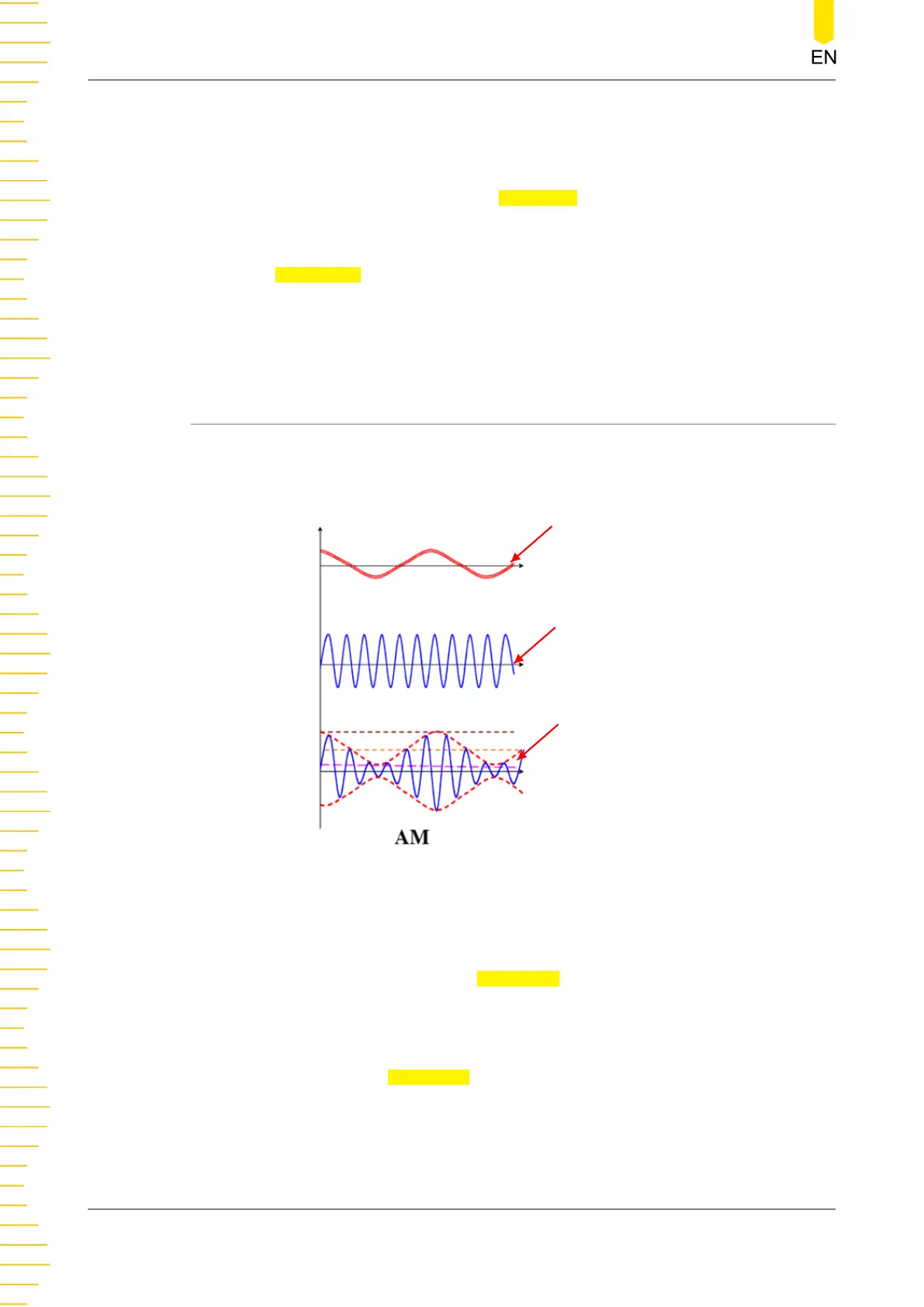

Figure 14.10 AM
Select the Modulation Type
Click or tap the drop-down button of Mod. Type to select "AM".
Select the Modulating Waveform
The instrument uses the built-in signal to perform waveform modulation. Click or tap
the drop-down button of
Waveform to select the modulating waveform. The
available waveform types include:
• Sine
• Square with 50% duty cycle
• Triangle with 50% symmetry
Function/Arbitrary Waveform Generator (Option)
MHO2000 User Guide
192
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
