14.2 Modulation
Modulation is a process of converting analog or digital signals into high-frequency
signals that are suitable for transmission. We called the original signal as the
modulating waveform; the high-frequency signal used to carry the modulating signal
is called the carrier waveform.
The AFG function supports AM, FM, and PM modulation types. The modulating signal
is the built-in waveform of AFG; the carrier waveform signal is the basic waveform
output by the AFG.
In the AFG interface (G1 or G2), click or tap the
Modulation tab to enter the
modulation setting menu.

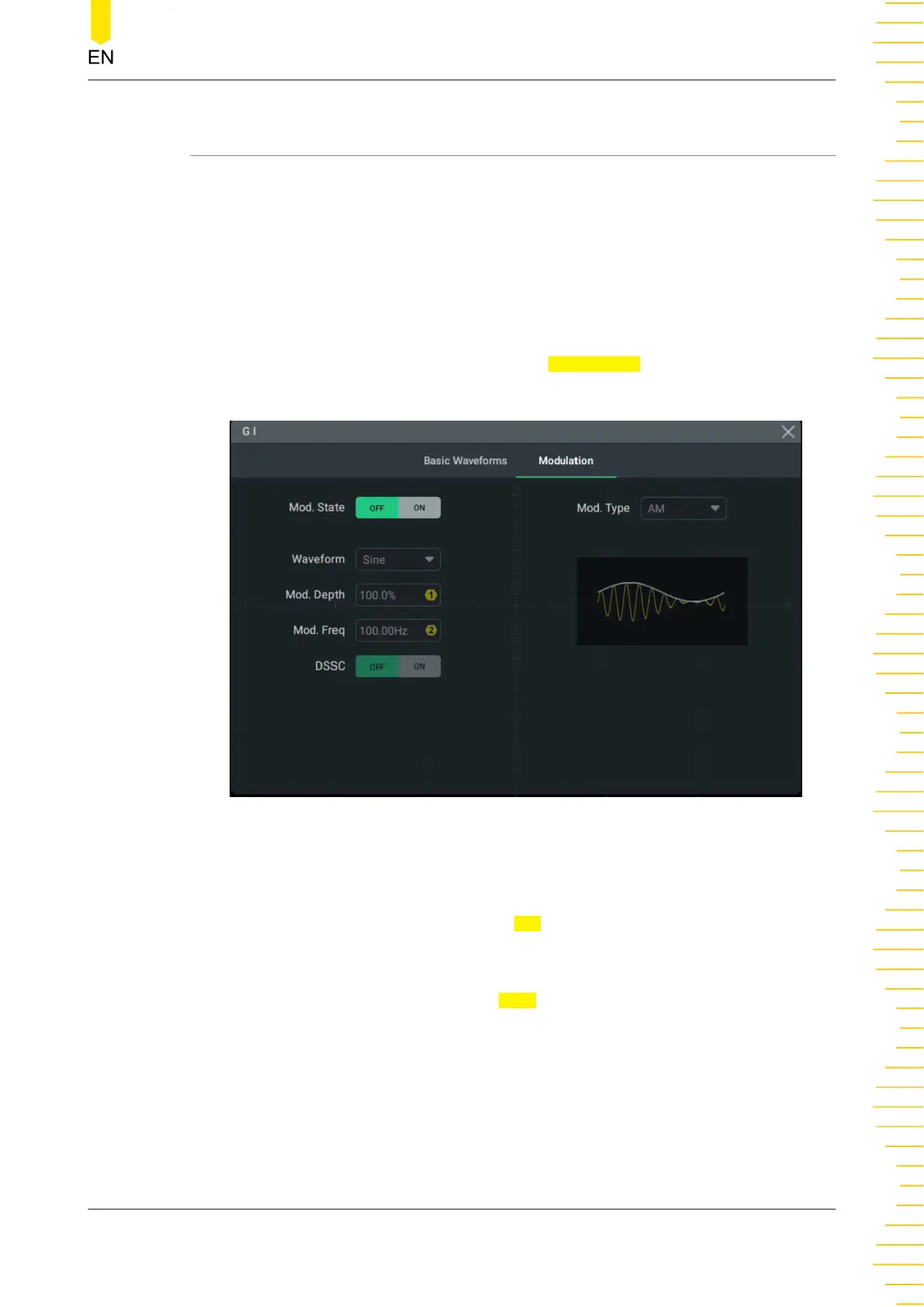

Figure 14.9 Modulation Setting Interface
Please configure the modulation settings according to the following procedures.
1. In the Basic Waveforms tab, click or tap
ON to enable the output for the specified
channel.
2. Click or tap the drop-down button of Type to select the desired waveform type.
Then configure the parameter settings for the selected waveform type. For details
of the parameter configurations, refer to
To Output Basic Waveforms
. The DC,
Noise, and Pulse waveforms are not supported as carrier waveforms. If you select
Function/Arbitrary Waveform Generator (Option)
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
191
