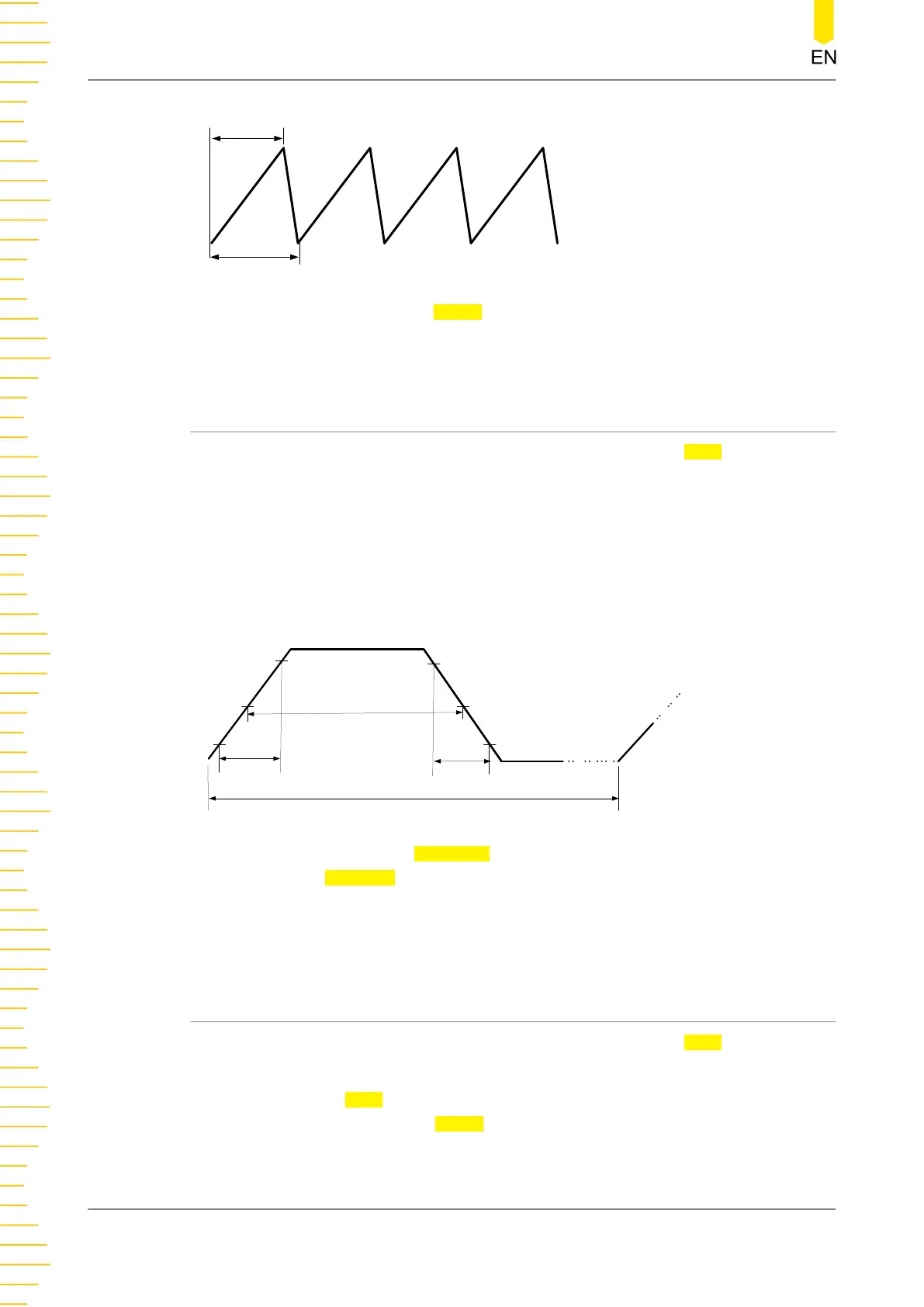

T
t
Symmetry=t/T*100%
Click or tap the of input field of Symm to set the symmetry with the pop-up numeric
keypad. You can also use the specified knob indicated in the input field to set it. The
available range of symmetry is from 0.1% to 99.9%. By default, it is is 50%.
14.1.4 Pulse
In the Basic Waveforms tab, click or tap the drop-down button of Type to select
"Pulse". Then you can set the Pulse parameters. Refer to
Sine
to set the frequency,
phase, amplitude, and offset parameters. For the duty cycle, refer to descriptions in
Square
. This section only elaborates on how to set the rising edge and falling edge.
The rising edge time is defined as the duration of the pulse amplitude rising from
10% to 90% threshold, while falling edge time is defined as the duration of the pulse
amplitude moving down from 90% to 10% threshold.
90%
10%
90%
10%
Rising Edge
Falling Edge
Pulse Width
One Cycle or Period
Click or tap the input field of Rise Edge to set the pulse rising edge time. Click or tap
the input field of Fall Edge to set the pulse falling edge time with the pop-up numeric
keypad. You also use the specified knob indicated in the input field to set the rising
and falling edge time. The rising/falling edge time ranges from 1 ps to 1 s. By default,
it is 300 ps.
14.1.5 Noise
In the Basic Waveforms tab, click or tap the drop-down button of Type to select
"Noise". Then you can set Noise parameters.
You can click or tap Amp to set the amplitude of Noise waveform. Its available range
is from 2 mV to 2 V. Click or tap Offset to set the offset of the Noise waveform. The
range of the offset is related to its amplitude value.
Function/Arbitrary Waveform Generator (Option)
MHO2000 User Guide
186
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
