two waveforms is changed. At this time, click or tap Align Phase, then the phase
deviation shown on the oscilloscope will restore to the current phase deviation
between the two waveforms automatically.
14.1.2 Square
In the Basic Waveforms tab, click or tap the drop-down button of Type to select
"Square". Then you can set the Square parameters. At this time, you can set the
parameters for the Square waveform.
Refer to
Sine
to set the frequency, phase, amplitude, and offset parameters. This
section will only elaborate on how to set the duty cycle.
Set the Duty Cycle

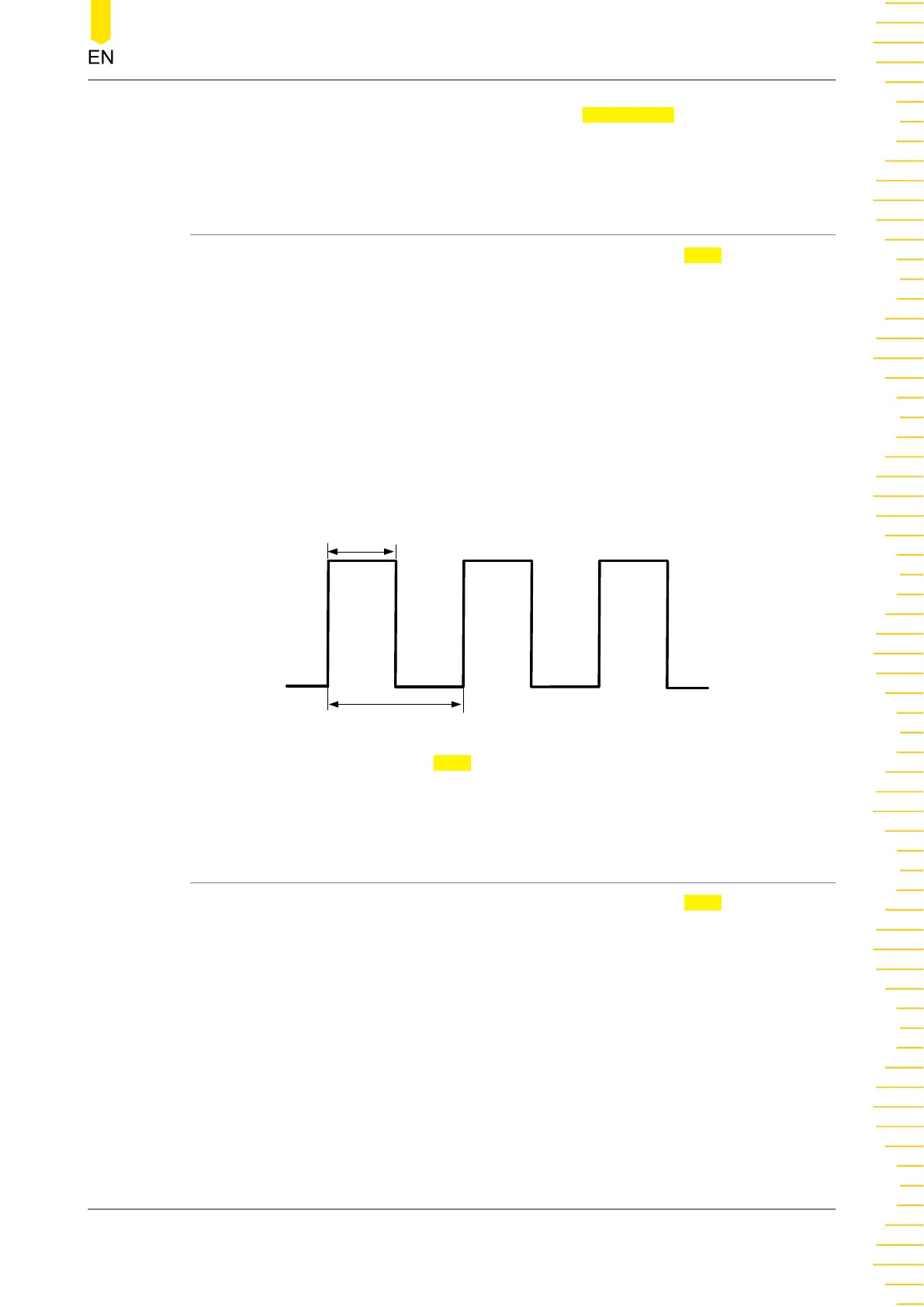

Duty cycle is defined as the percentage that the high level takes up in the whole
period, as shown in the figure below. This parameter is only available when Square is
selected.
t
T
Duty Cycle=t/T*100%
Click or tap the of input field of Duty to set the duty cycle with the pop-up numeric
keypad. You can also use the specified knob indicated in the input field to set it. The
available range of duty cycle is from 1% to 99%. By default, it is 50%.
14.1.3 Ramp
In the Basic Waveforms tab, click or tap the drop-down button of Type to select
"Ramp". Then you can set the Ramp parameters. At this time, you can set the
parameters for the ramp waveform.
Refer to
Sine
to set the frequency, phase, amplitude, and offset parameters. This
section will only elaborate on how to set the symmetry.
Symmetry
Symmetry is defined as the percentage that the rising period of the ramp takes up in
the whole period (as shown in the figure below). This parameter is only available
when Ramp is selected.
Function/Arbitrary Waveform Generator (Option)
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
185
