14.1 To Output Basic Waveforms

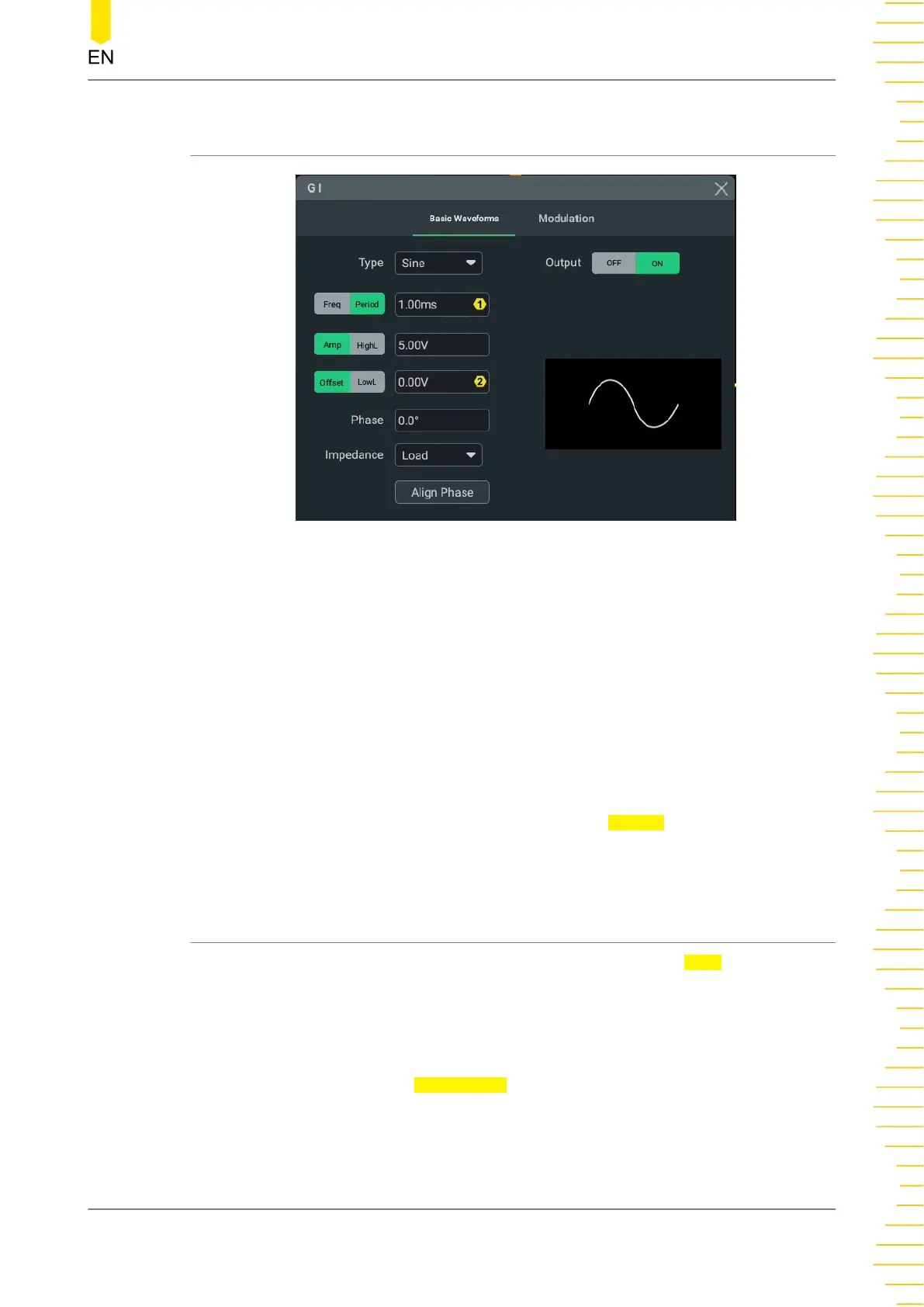

Figure 14.1 AFG Menu
The front-panel GI and GII can output different waveform types at the same time. You
can set parameters for GI and GII output channels respectively.
The built-in AFG (GI and GII) can output various types of waveforms.
• Standard waveforms: Sine, Square, Ramp, Pulse, and Noise
• Built-in waveforms: DC, Sinc, Exp.Rise, Exp.Fall, ECG1, Gauss, Lorentz, and
Haversine
After completing the waveform parameter settings, set
Output to "ON". The
waveforms set in the AFG interface can be output from the specified front-panel AFG
channel (G1 or GII).
14.1.1 Sine
In the Basic Waveforms tab, click or tap the drop-down button of Type to select
"Sine". Then you can set the Sine parameters. At this time, you can set the parameters
for the Sine waveform.
Set the Frequency/Period
Click or tap the input field of Freq/Period to set the frequency or period of the
current Sine signal with the pop-up numeric keypad. You can also use the specified
knob indicated in the input field to set it. Different waveforms have different
frequency or period (reciprocal of the frequency) ranges.
Function/Arbitrary Waveform Generator (Option)
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
183
