14
Function/Arbitrary Waveform Generator
(Option)
With an optional configuration of built-in 50 MHz Function/Arbitrary Waveform
Generator (AFG), the MHO2000 series integrates the Function/Arbitrary Waveform
Generator and the oscilloscope into one, thus providing great convenience for
engineers who need to use the Function/Arbitrary Waveform Generator and
oscilloscope at the same time. This chapter introduces how to use the built-in
Function/Arbitrary Waveform Generator option.
To enable the AFG function, perform any of the following operations:
• Press
or on the front panel to enable GI or GII, then enter the
specified setting interface.
• Click or tap the GI or GII label at the bottom of the screen to enter the specified
AFG setting interface.

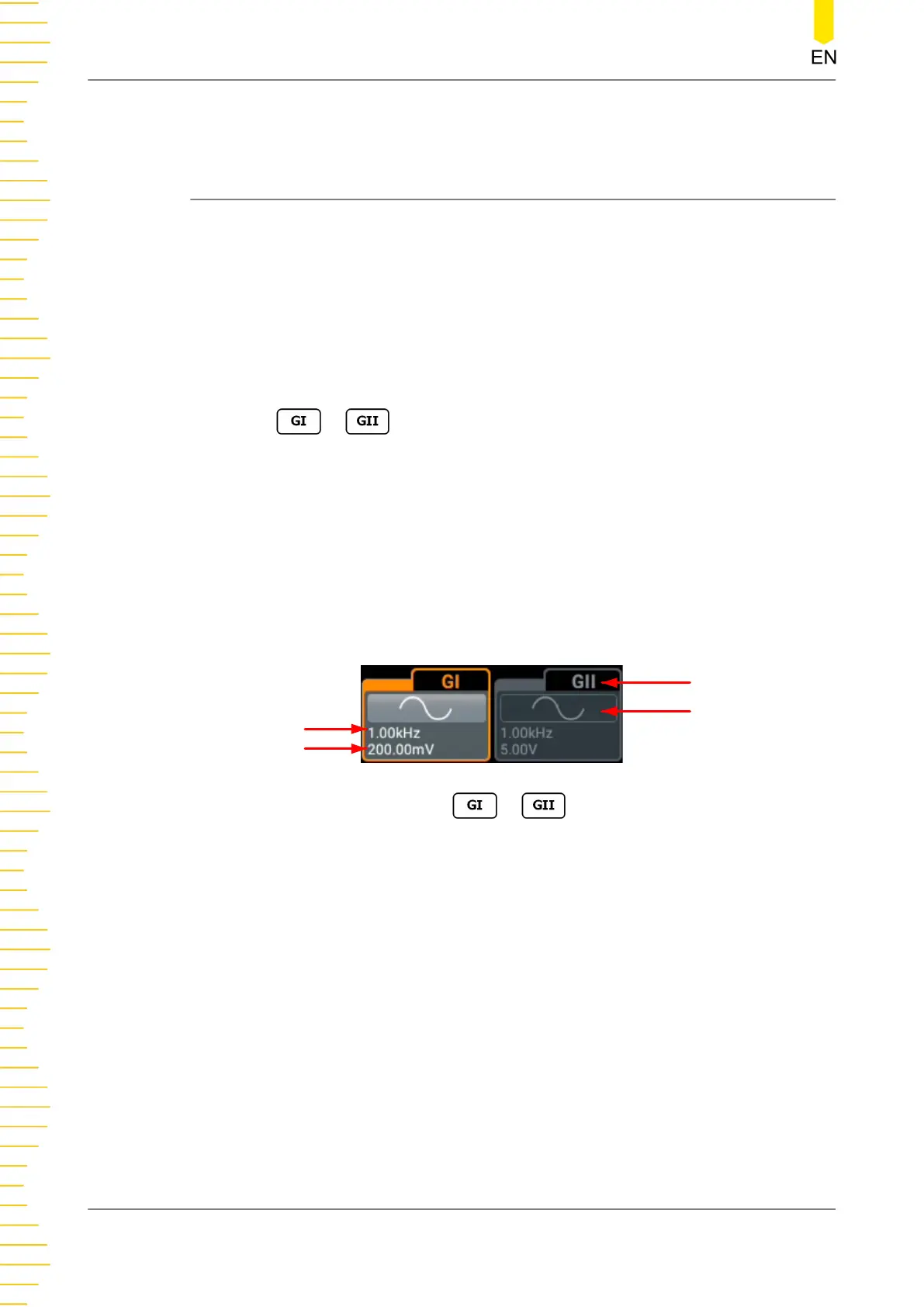

The on/off status of the specified AFG channel is indicated in its label color. When
enabled, the label is highlighted in orange, with output waveform information on it.
When disabled, the label is grayed out.
Freq/Period
Amp/HighL
Waveform Type
Output Channel
To disable the AFG function, press or on the front panel to disable GI or
GII. You can also click or tap the enabled GI or GII label at the bottom of the screen to
exit the specified AFG interface. Also, you can drag the label downward to disable the
enabled AFG channel and exit the specified AFG interface.
Function/Arbitrary Waveform Generator (Option)
MHO2000 User Guide
182
