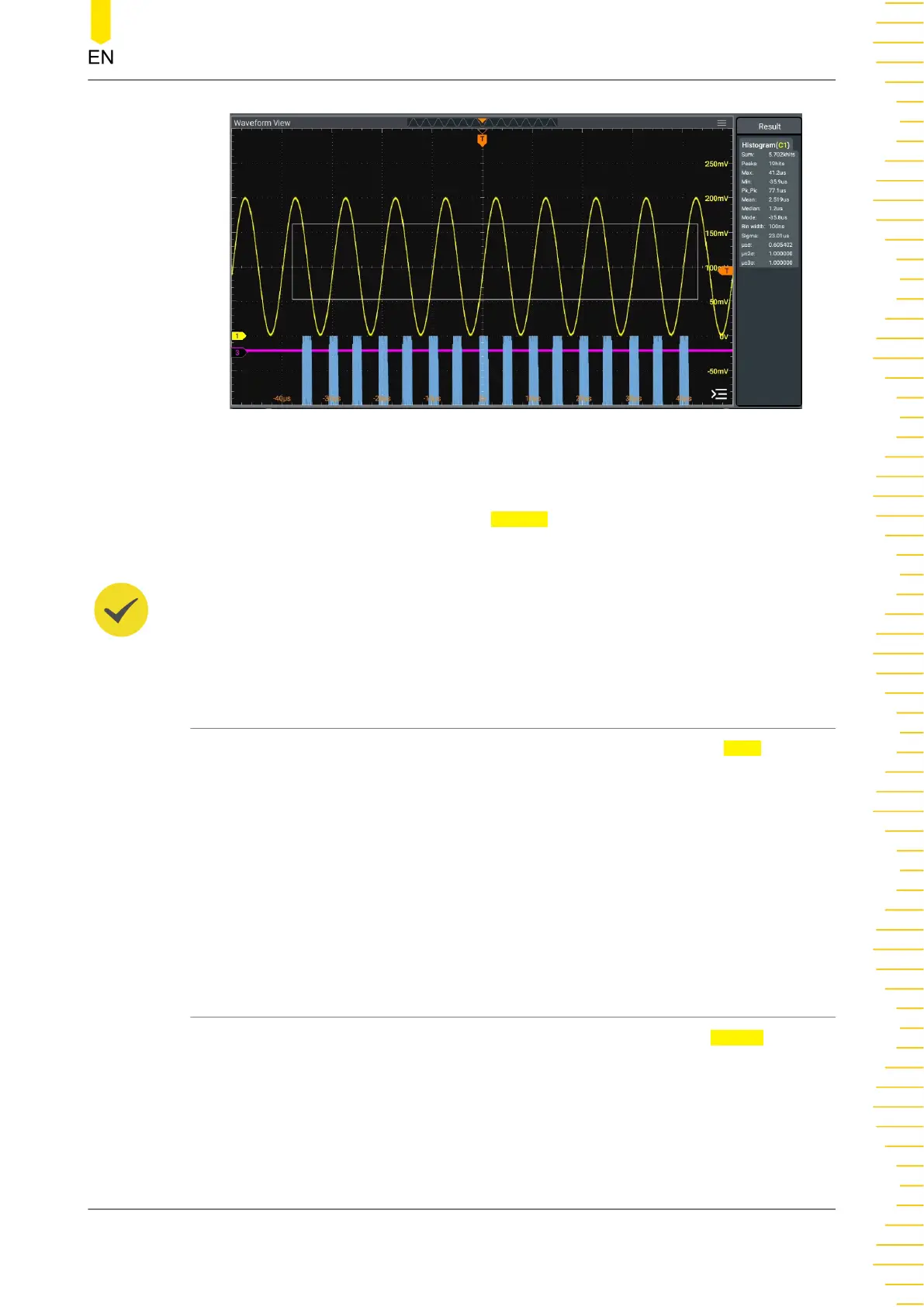

Figure 13.2 Histogram Analysis Interface
When the histogram is enabled, click or tap the histogram result list, the sub-menus
of histogram are displayed. Click or tap Setting to enter the histogram setting
interface.
TIP
For the definitions of the measurement items in the histogram result, refer to
Histogram
Analysis Results
.
13.2 To Select the Histogram Type
In the "Histogram" setting menu, click or tap the drop-down button of Type to select
the histogram type from the drop-down list.
• Horizontal: displays the number of times for statistics making in the forms of
columns in the histogram bar graph at the bottom of the graticule.
• Vertical: displays the number of times for statistics making in the forms of rows
in the histogram bar graph at the left of the graticule.
13.3 To Select the Histogram Source
In the Histogram setting menu, click or tap the drop-down button of Source to select
the desired source from the drop-down list. All the analog channels can be selected
to be the Histogram source.
Histogram Analysis
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
