Histogram Analysis
The histogram analysis function provides you a statistical view of the waveforms or
measurement results, enabling you to judge the trend of waveforms, and quickly
locate the potential problems of the signal. This series oscilloscope supports
horizontal histogram, vertical histogram and and measurement histogram.
Click or tap the function navigation icon
at the lower-left corner of the screen,
and then select Histogram to enter the histogram setting menu.

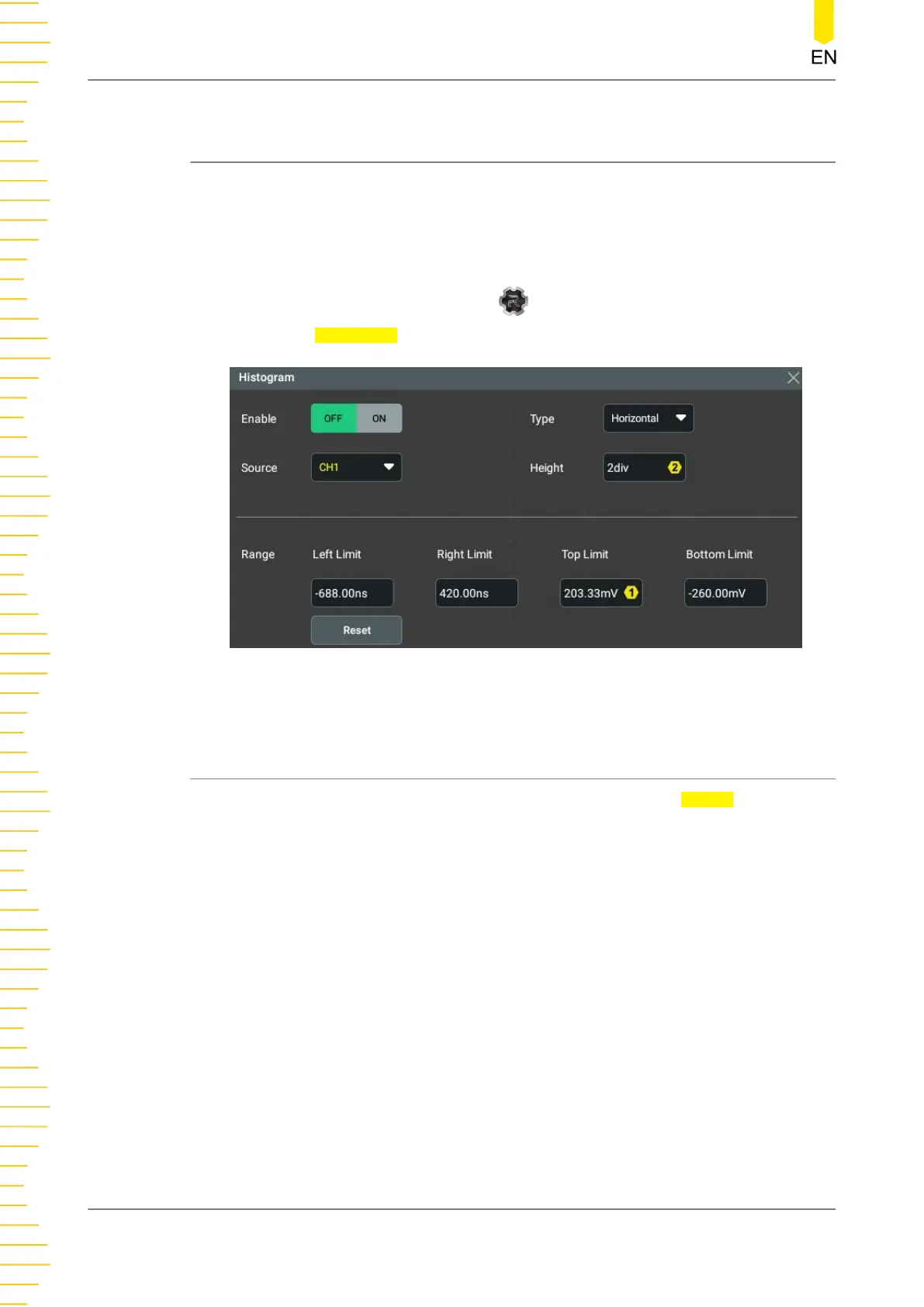

Figure 13.1 Histogram Setting Menu
13.1 To Enable or Disable the Histogram
In the "Histogram" setting menu, click or tap the ON/OFF tab for Enable to enable or
disable the histogram analysis function. When enabled, with the on-going acquisition
and measurement of the waveforms, the height of the bar graph of the histogram will
change within the set range of the histogram window to indicate the number of times
for data statistics.
Here takes the horizontal histogram as an example. When enabled, the histogram is
displayed on the screen as shown in the figure below. The histogram result is
displayed in the "Result" list at the right section of the screen.
Histogram Analysis
MHO2000 User Guide
178
