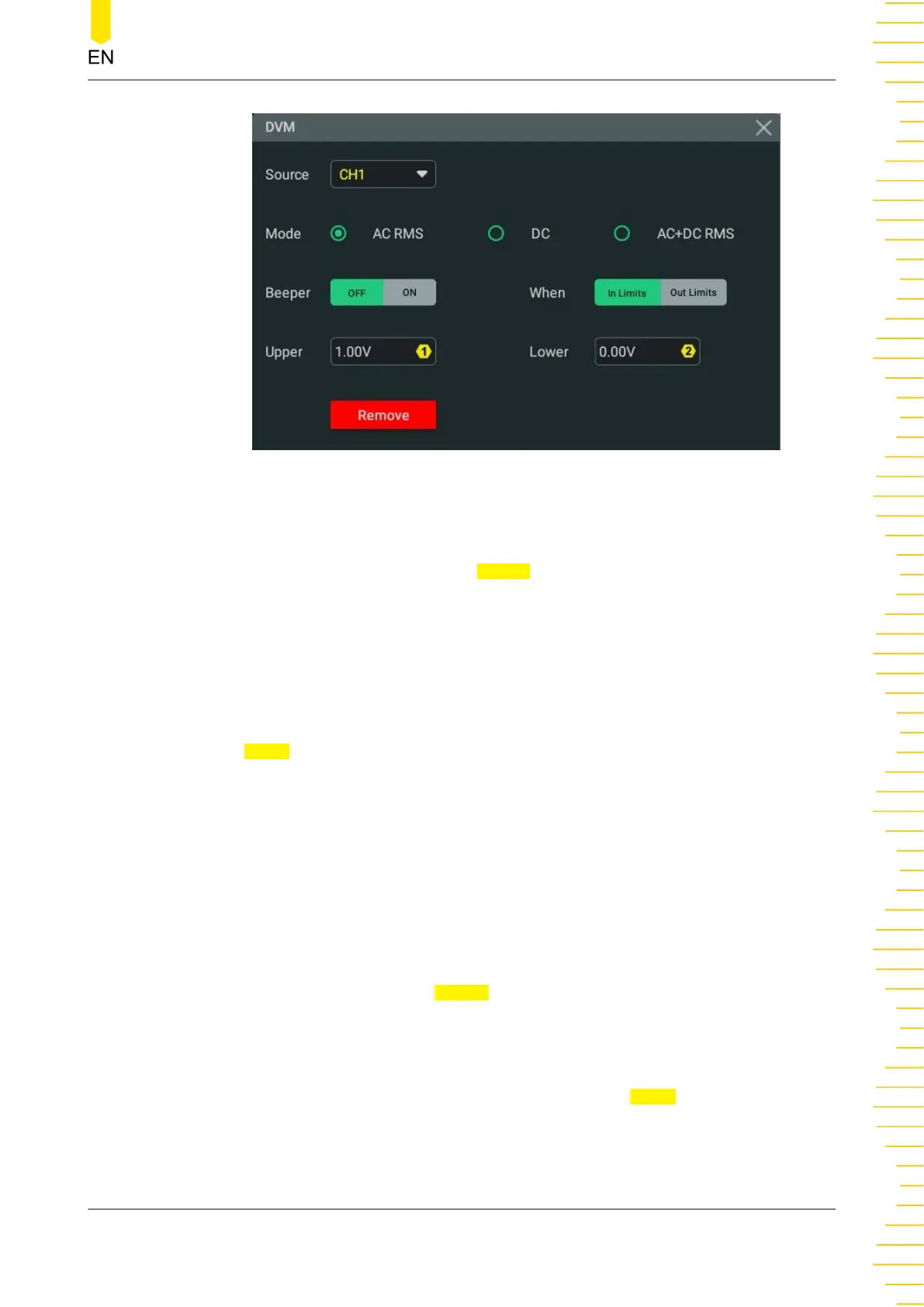

Figure 11.1 DVM Setting Menu
Select the Measurement Source
Click or tap the drop-down button of
Source to select the desired source from the
drop-down list. The analog channel (CH1~CH4) can be selected to be the
measurement source.
Even if the analog channel (CH1~CH4) is not enabled, you can still perform the DVM
measurement.
Select the Measurement Mode
In the
Mode item, you can select the DVM mode. The DVM measurement modes
include AC RMS, DC, and AC+DC RMS.
• AC RMS: displays the root-mean-square value of the acquired data, with the DC
component removed.
• DC: displays the average value of the acquired data.
• AC+DC RMS: displays the root-mean-square value of the acquired data.
Set the Limits
Click or tap the ON/OFF tab for
Beeper to enable or disable the beeper. When
enabled, you can set when ("In Limits" or "Out Limits") to sound an alarm.
• Limits Condition Setting
Click or tap to select the desired condition under the
When menu. The limits
conditions include "In Limits" and "Out Limits".
- In Limits: when the voltage value is within the limits, you can enable or
disable the beeper to sound an alarm.
Digital Voltmeter (DVM) and Frequency Counter
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
169
