Digital Voltmeter (DVM) and Frequency
Counter
This series oscilloscope provides a built-in digital voltmeter (DVM) and frequency
counter, which enable you to perform more accurate measurements, improving user
experience in counter and frequency measurement.
11.1 Digital Voltmeter (DVM)
The built-in DVM of this series oscilloscope provides 4-digit voltage measurements
on any analog channel. DVM measurements are asynchronous from the oscilloscope's
acquisition system and are always acquiring. To enable the DVM measurement,
perform the following operations:
• Click or tap the function navigation icon > DVM to enable DVM
measurements.
• Click or tap the DVM button on the toolbar to enable DVM measurements.
• Press the front-panel key and then select DVM in the displayed "Analyse"
menu to enable the DVM measurements.
After the DVM measurement is enabled, the "DVM" label displaying the current
voltage value and voltage mode appears in the "Result" list at the right section of the

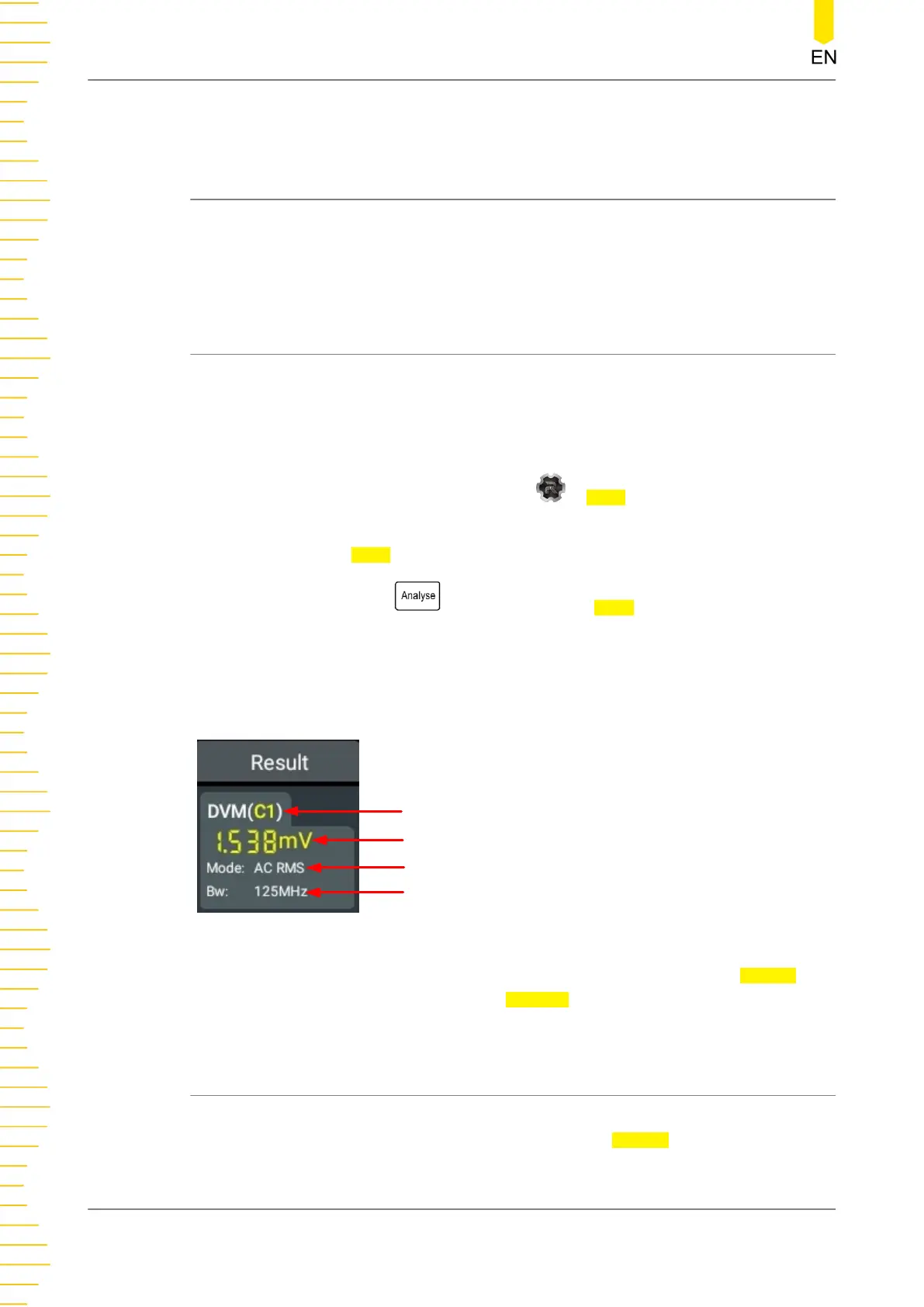

screen, as shown in the figure below.
Source
Voltage Value
Mode
DVM Bandwidth
The voltage value above shows the measurement extrema over the last 3 seconds.
Click or tap the "DVM" label and then a window is displayed. Click or tap
Setting to
enter the DVM setting menu. Click or tap Remove to remove the DVM measurement
results and exit the DVM measurement.
11.1.1 Measurement Settings
After the DVM measurement is enabled, the DVM result list is displayed. Click or tap
the result list, the sub-menus are displayed. Click or tap Setting to enter the DVM
setting menu.
Digital Voltmeter (DVM) and Frequency Counter
MHO2000 User Guide
168
