- Out Limits: when the voltage value is outside of the limits, you can enable
or disable the beeper to sound an alarm.
• Upper/Lower Limit Setting
Click or tap the input field of Upper to set the upper limit of the voltage with the
pop-up numeric keypad. You can also use the specified knob to set it.
Click or tap the input field of Lower to set the lower limit of the voltage with the
pop-up numeric keypad. You can also use the specified knob to set it.
The available range of the upper limit is from 1 nV to 500 V. By default, it is 1 V. The
available range of the lower limit is from -500 V to 990.00 mV. By default, it is 0 V.
11.1.2 To Remove the Measurement
Click or tap the DVM label in the result list, then the sub-menus are displayed. Click or
tap Remove to remove the measurement results and exit the DVM measurement. You
can also click or tap Remove in the DVM setting menu to remove the measurement
results.
11.2 Frequency Counter
The frequency counter analysis function provides frequency, period, or edge event
counter measurements on any analog channel.
You can enable the counter in the following ways:
• Click or tap > Counter to enable the counter.
• Click or tap the Counter button on the toolbar to enable the counter.
• Press the front-panel key and then select Counter in the displayed
"Analyse" menu to enable the counter.

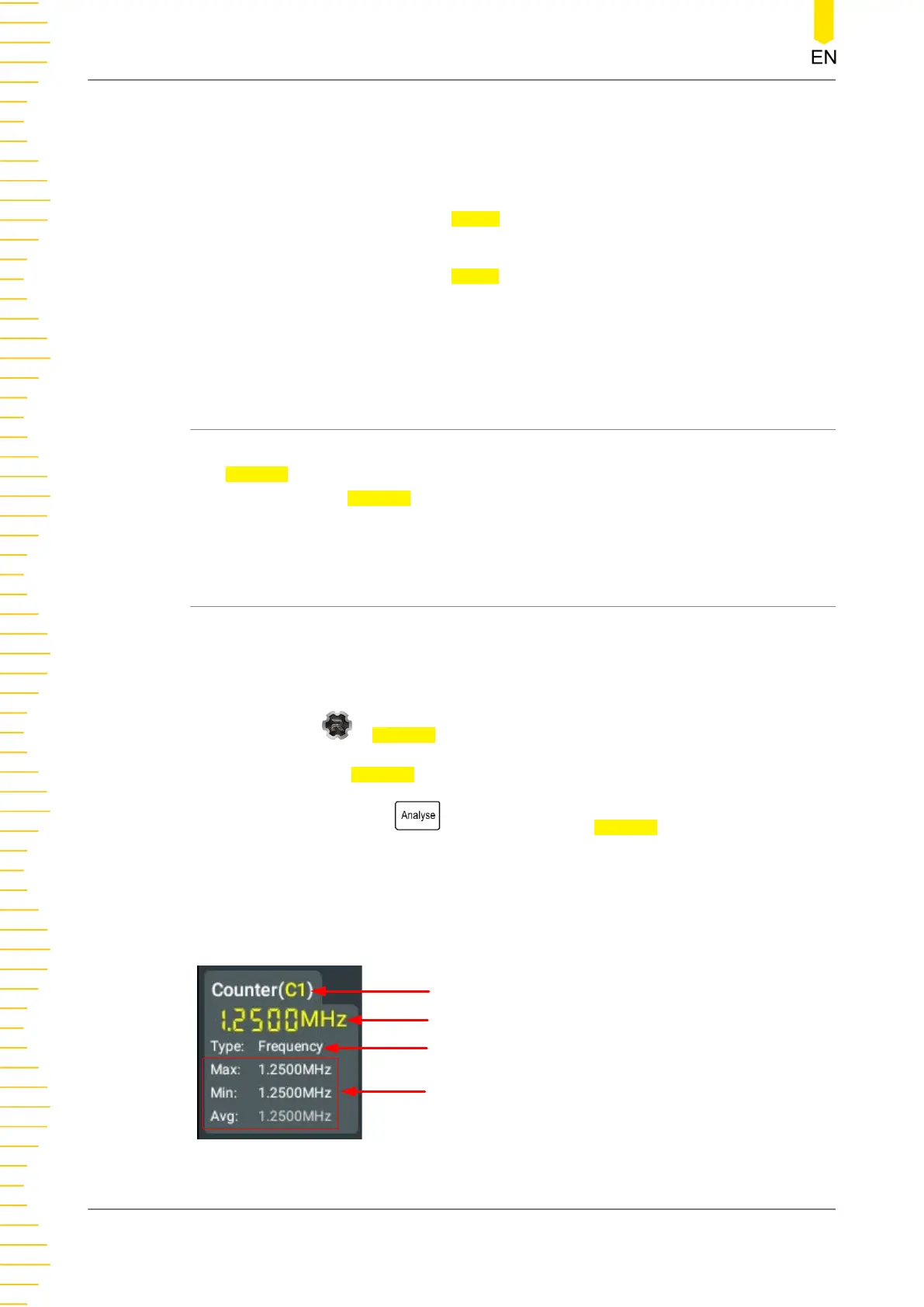

After the counter is enabled, the "Counter" label displaying the counter measurement
results appears in the "Result" bar at the right section of the screen, as shown in the
figure below.
Source
Value
Measurement Item
Results
Digital Voltmeter (DVM) and Frequency Counter
MHO2000 User Guide
170
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
