9.5 Digital Filter
In the Math menu, click or tap the drop-down button of Operator to select the
desired math operation. The digital filter supported by this oscilloscope includes: low-
pass filter, high-pass filter, band-pass filter, and band-stop filter.
• LowPass: only allows the signals whose frequencies are lower than the current
upper limit frequency to pass.
• HighPass: only allows the signals whose frequencies are higher than the current
lower limit frequency to pass.
• BandPass: only allows the signals whose frequencies are higher than the current
lower limit frequency and lower than the current upper limit frequency to pass.
• BandStop: only allows the signals whose frequencies are lower than the current
lower limit frequency or higher than the current upper limit frequency to pass.

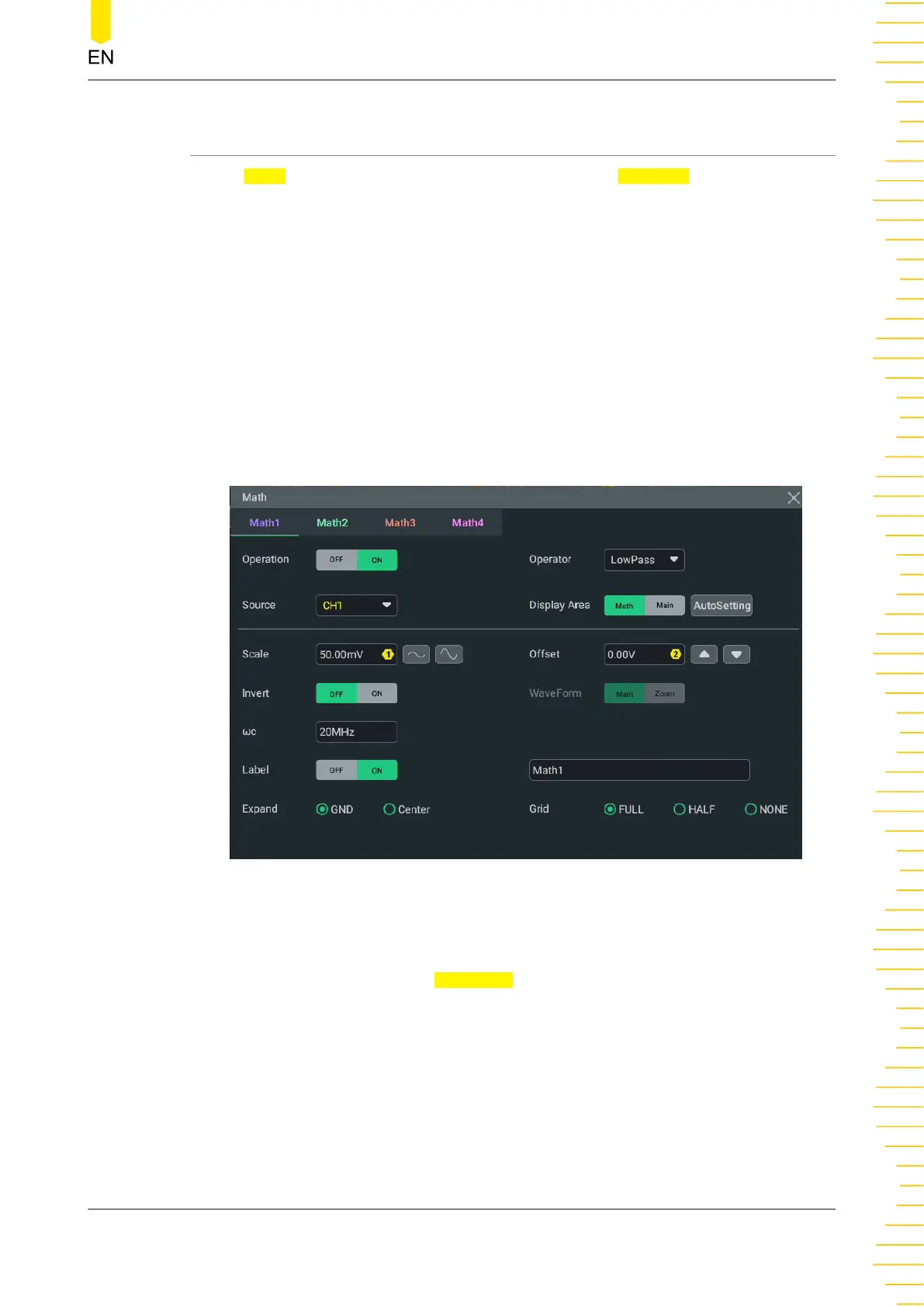

Figure 9.11 Digital Filter Menu
Operation Result Display Window
Click or tap the ON/OFF tab for Operation to enable or disable the display of the
operation result window. The source and the vertical scale parameters are displayed
at the top of the window, as shown in the figure below.
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
141
