Source
Vertical Scale
Label
Sample Rate

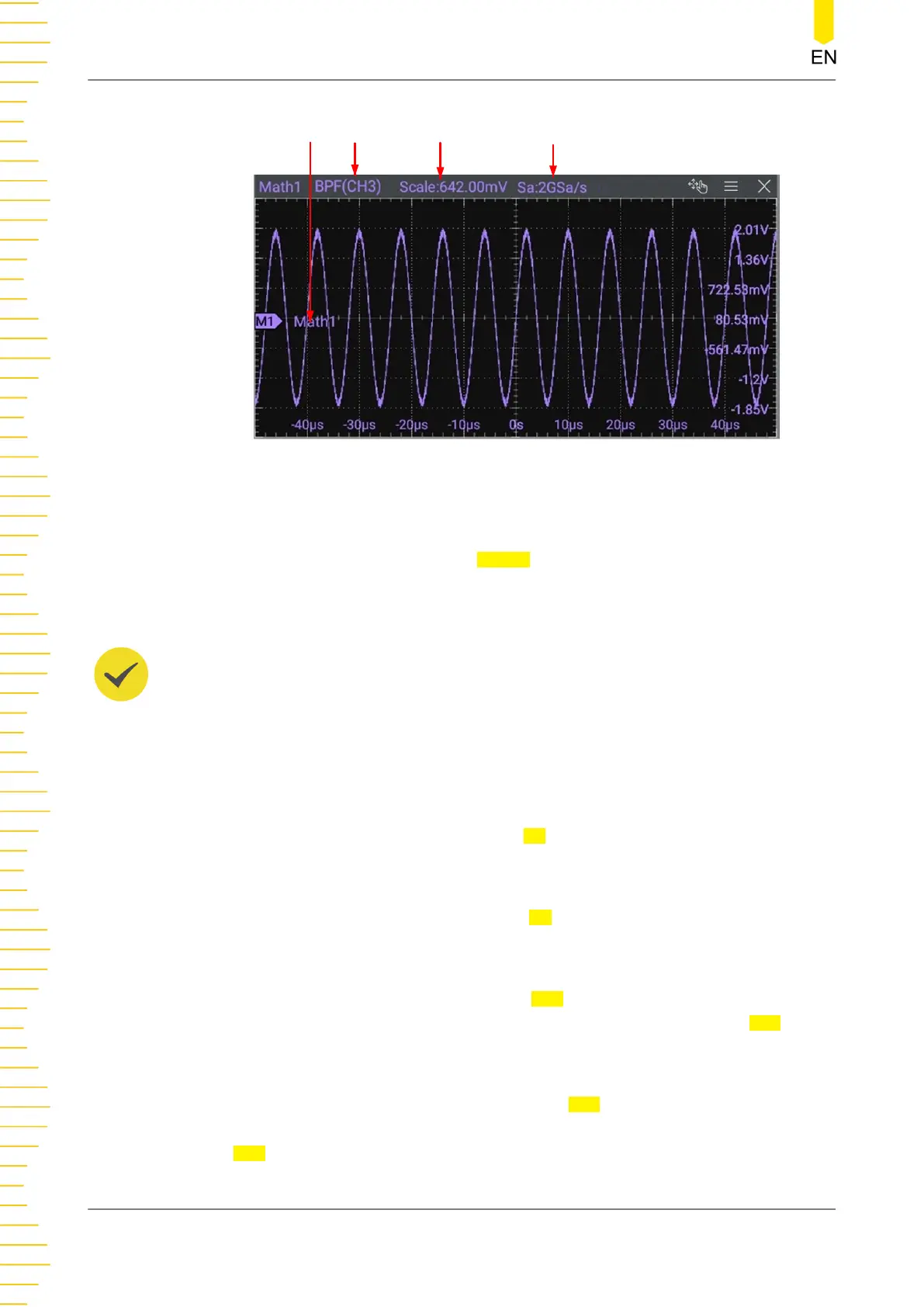

Figure 9.12 Digital Filter Operation Result Display Window
Source
Click or tap the drop-down button of Source to select CH1-CH4 or Ref1-Ref10. When
a source channel is selected, the selected channel automatically switches to the ON
state.
TIP
In addition to CH1~CH4 and Ref1~Ref10, the available sources for Math2 also include Math1;
the sources for Math3 also include Math1 and Math2; the sources for Math4 also include
Math1, Math2, and Math3. The selected Math channel and operation status will automatically
be enabled.
Frequency Limit
• LowPass: click or tap the input field of ωc and use the pop-up numeric keypad
to set the upper frequency limit. You can also use the specified knob indicated in
the input field to set the value.
• HighPass: click or tap the input field of
ωc and use the pop-up numeric keypad
to set the lower frequency limit. You can also use the specified knob indicated in
the input field to set the value.
• BandPass: click or tap the input field of
ωc1 and use the pop-up numeric
keypad to set the lower frequency limit. Click or tap the input field of ωc2 and
use the pop-up numeric keypad to set the upper frequency limit. You can also
use the specified knob indicated in the input field to set the value.
• BandStop: click or tap the input field for the
ωc1 menu item and use the pop-
up numeric keypad to set the lower limit frequency. Click or tap the input field of
ωc2 and use the pop-up numeric keypad to set the upper frequency limit. You
can also use the specified knob indicated in the input field to set the value.
Math Operation
MHO2000 User Guide
142
