Operation Result Display Window
Click or tap the ON/OFF tab for Operation to enable or disable the display of the
logic operation result window. The source and the waveform sizes parameters are
displayed at the top of the window, as shown in the figure below.
Source Waveform SizeLabel

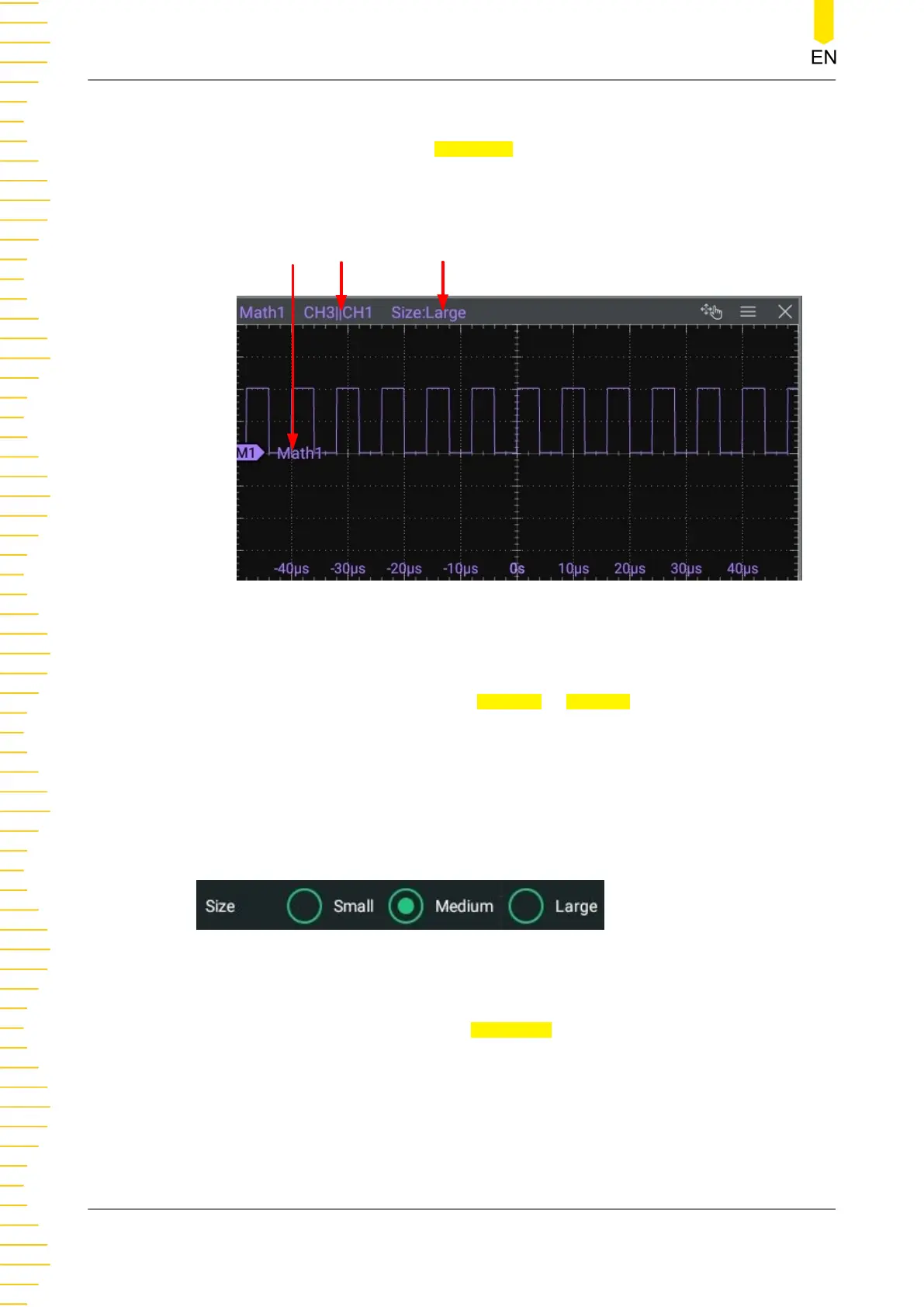

Figure 9.10 Logic Operation Result Display Window
Source
Click or tap the drop-down button of SourceA or SourceB to select analog channels
or digital channels. When a source channel is selected, the selected channel
automatically switches to the ON state.
Wave Size
Click or tap to select "Small", "Medium", or "Large" as the the waveform display
mode.
Sensitivity
Sets the sensitivity of the digital signal converted from the analog signal on the
source. Click or tap the input field of Sensitivity to set the sensitivity with the pop-up
numeric keypad. You can also use the specified knob to set it.
Threshold
Sets the threshold of the channel source. Click or tap the input field to set the
sensitivity with the pop-up numeric keypad. You can also use the specified knob to
set it.
Math Operation
MHO2000 User Guide
140
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
