TIP
In addition to CH1~CH4 and Ref1~Ref10, the available sources for Math2 also include Math1;
the sources for Math3 also include Math1 and Math2; the sources for Math4 also include
Math1, Math2, and Math3. The selected Math channel and operation status will automatically
be enabled.
9.3 FFT Operation
FFT (Fast Fourier Transform) is used to transform time-domain signals to frequency-
domain components (frequency spectrum). This oscilloscope provides FFT operation
function which enables you to observe the time-domain waveform and spectrum of
the signal at the same time. FFT operation can facilitate the following works:
• Measure harmonic components and distortion in the system;
• Display the characteristics of the noise in DC power;
• Analyze vibration.
In the Math menu, click or tap the drop-down button of Operator to select FFT to
enter the FFT operation menu, as shown in the figure below.

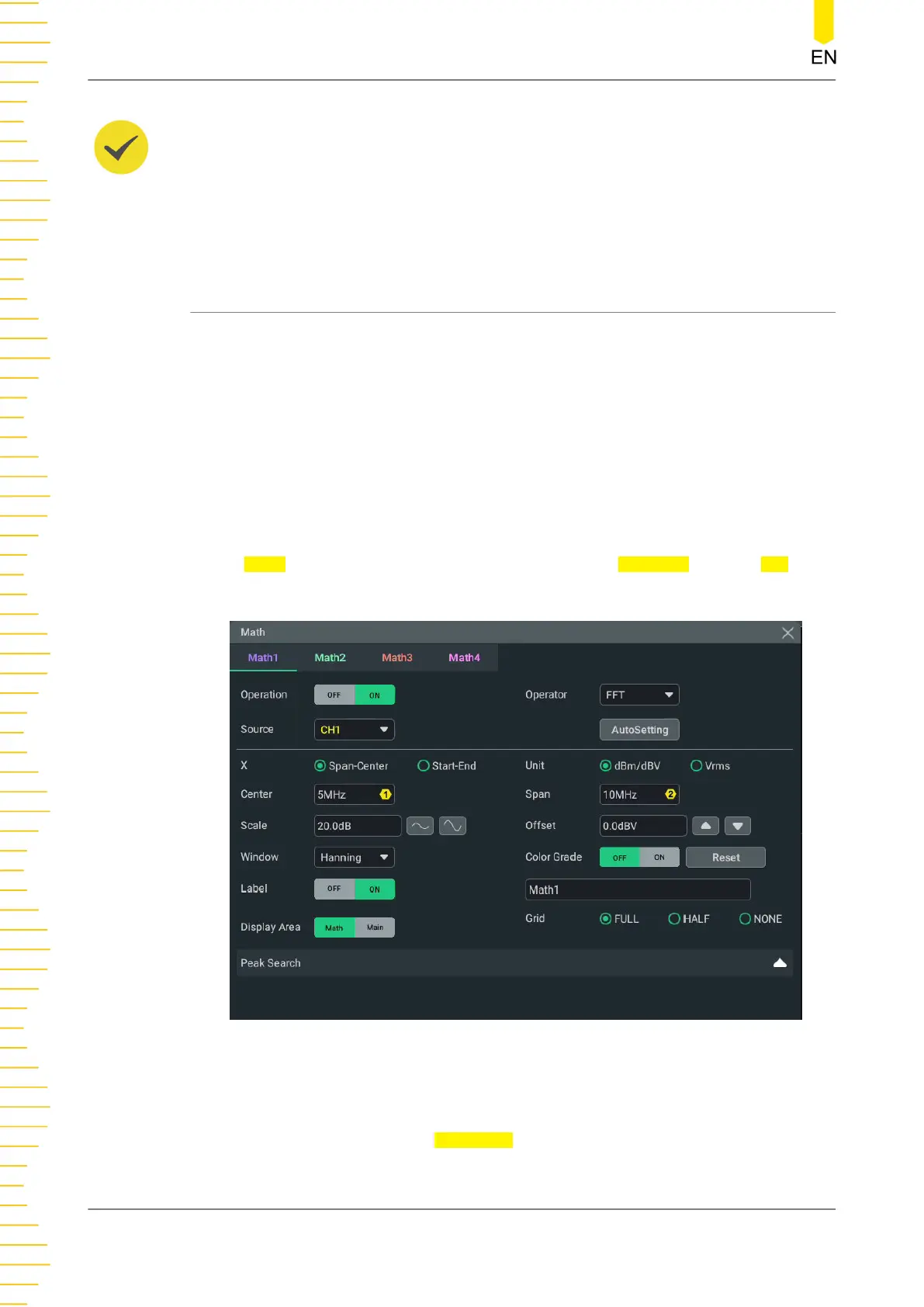

Figure 9.6 FFT Operation Menu
Operation
Click or tap the ON/OFF tab for Operation to enable or disable the FFT operation
result window. The parameters such as center frequency, span, and FFT resolution
Math Operation
MHO2000 User Guide
134
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
