(RBW) are displayed at the top of the window, as shown in the figure below. Of which,
FFT resolution is the quotient of the sample rate and the number of FFT points. If the
number of FFT points is a fixed value (65535 at most), then the lower the sample rate,
the higher the resolution.
Source
Center
Frequency
Label
Sample
Rate
Frequency
Span
Resolution

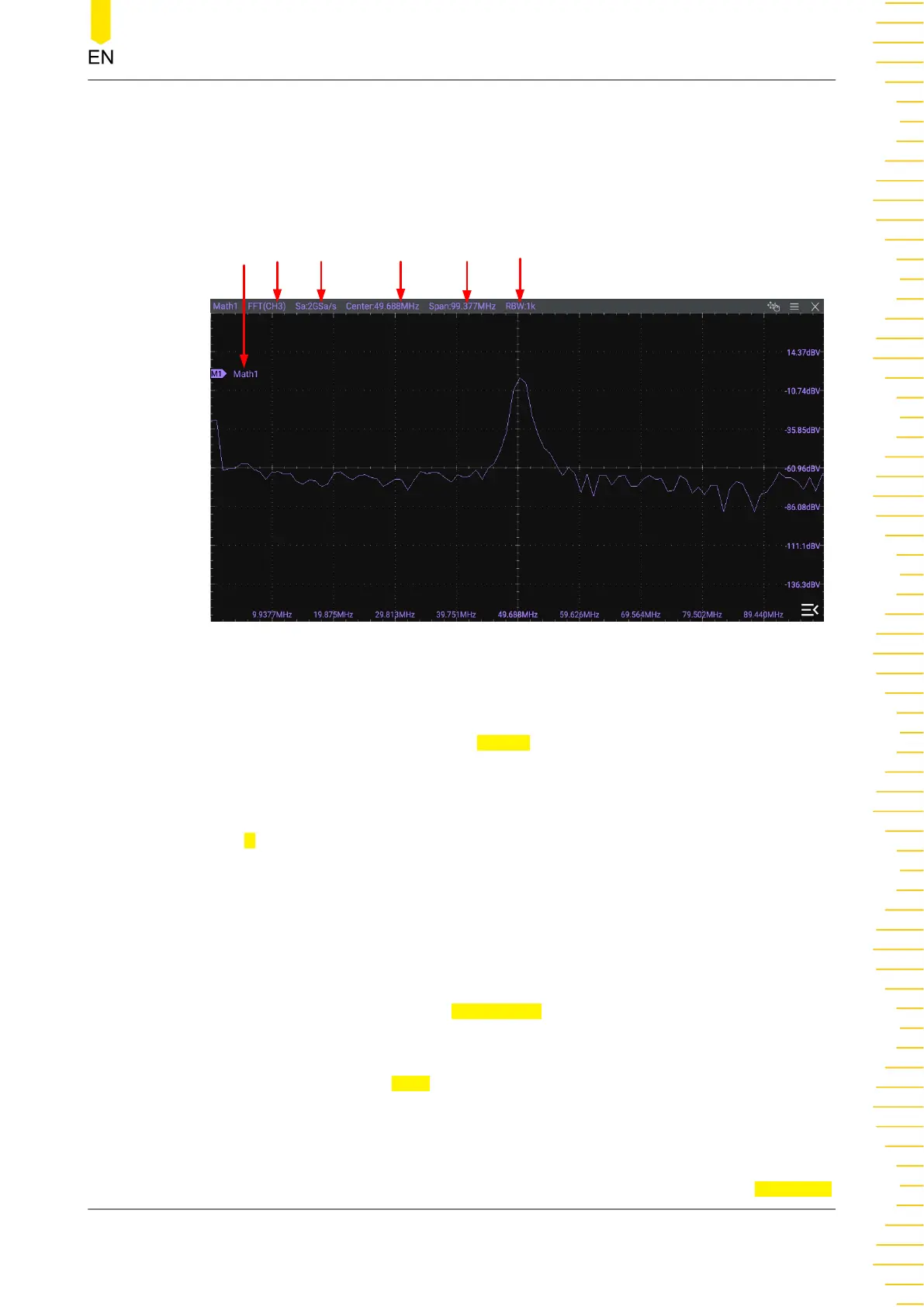

Figure 9.7 FFT Operation Window
Source
Click or tap the drop-down button of Source to select CH1-CH4. When a source
channel is selected, the selected channel automatically switches to the ON state.
Frequency Range
In the
X item menu, select "Span-Center" (frequency span to center frequency) or
"Start-End" (start frequency to stop frequency) as a frequency range mode.
• Span-Center (span to center frequency): Span specifies the frequency range
represented by the width from the frequency at the left side of the window to
the frequency at the right side of the window. Divide the frequency span by 10
to obtain the frequency per division.
Click or tap the input field of
Center Freq to set the frequency of the frequency-
domain waveform relative to the horizontal center of the window. You can also
use the specified knob to set the value. Its range is from 5 Hz to 1 GHz. Click or
tap the input field of
Span to set the set the frequency span with the pop-up
numeric keypad. You can also use the specified knob to set it. Its range is from
10 Hz to 1 GHz.
• Start-End (start frequency to stop frequency): Start frequency refers to the
frequency at the left side of the window. Click or tap the input field of
Start Freq
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
135
