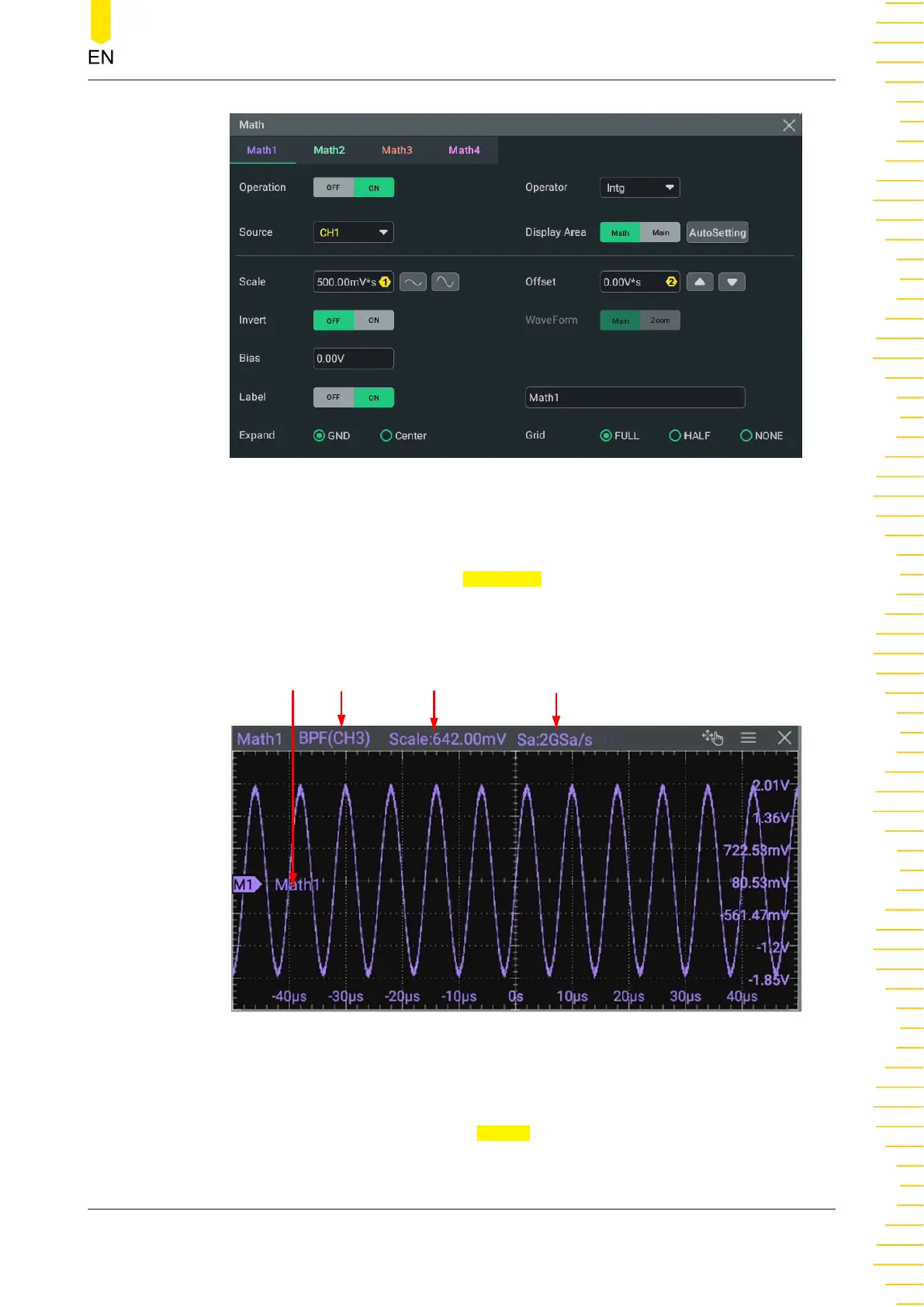

Figure 9.4 Function Operation Menu
Operation Result Display Window
Click or tap the ON/OFF tab for the
Operation menu to enable or disable the display
of the operation result window. The source and the vertical scale parameters are
displayed at the top of the window, as shown in the figure below.
Source
Vertical Scale
Label
Sample Rate
Figure 9.5 Function Operation Result Display Window
Source
Click or tap the drop-down button of
Source to select CH1-CH4 or Ref1-Ref10. When
a source channel is selected, the selected channel automatically switches to the ON
state.
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
133
