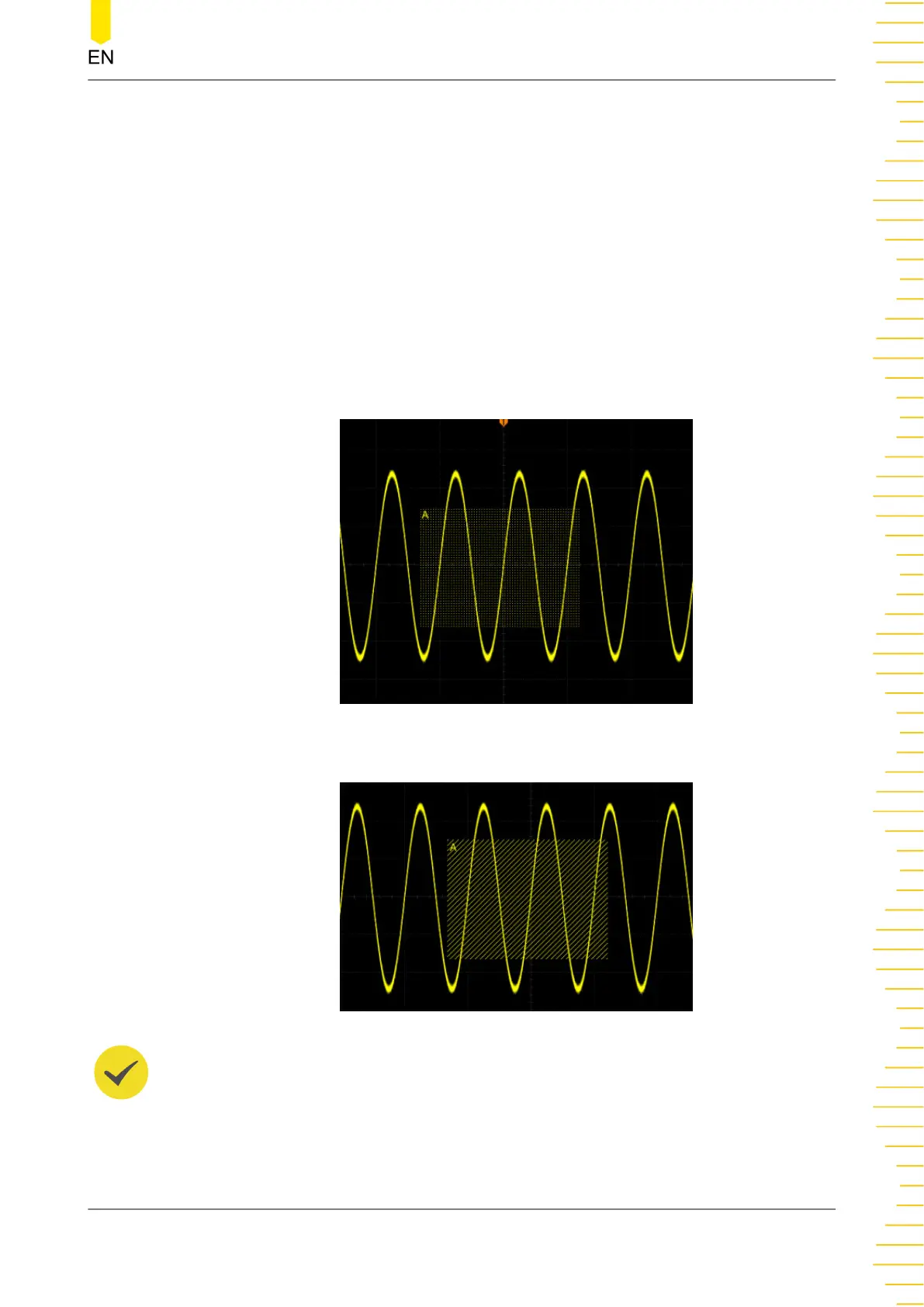

Enable or Disable the Trigger Zone
Click or tap the ON/OFF tab for Zone A and Zone B to enable or disable the specified
trigger zone in the waveform view. They can be controlled indepently.
Select the Source
Selects the source for trigger zone A and B. The available sources are CH1-CH4. The
color of the zone name and the zone frame are the same as that of the the selected
channel.
Select the Trigger Condition
If you enable Zone A, select CH1 as Source A and select "Intersect" as the condition,
as shown in the figure below.
If you enable Zone A, select CH1 as Source A and select "Intersect" as the condition,
the following figure is displayed.
TIP
If both trigger zone A and trigger zone B are enabled, the the logic "And" operation is the final
trigger condition.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
127
