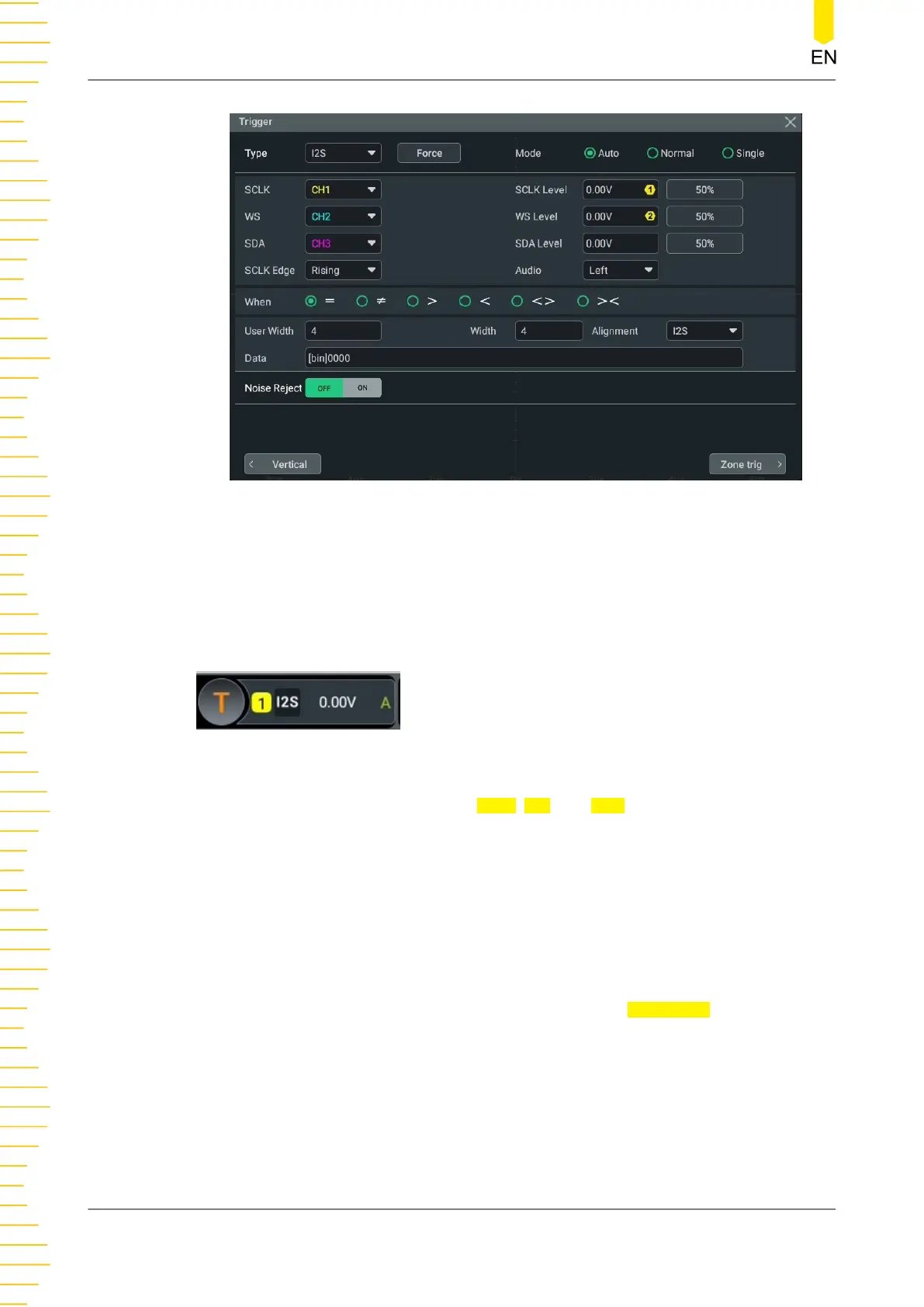

Figure 8.41 I2S Trigger Setting Menu
After selecting the trigger type, then the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Source Selection
Click or tap the drop-down button of SCLK, WS, and SDA to select the analog
channel or the digital channel as the source of SCLK, WS, and SDA respectively. For
the available channels, refer to descriptions in "
Trigger Source
". The current trigger
source is displayed in the trigger information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Edge Type
Selects the desired clock edge from the drop-down list of
SCLK Edge.
• Rising: samples the SDA data on the rising edge of the clock.
• Falling: samples the SDA data on the falling edge of the clock.
To Trigger the Oscilloscope
MHO2000 User Guide
120
