• Data&ID: triggers when the frames with the specified ID and data that meet the
preset conditions are both found.
When Data&ID is selected, you need to set the Data, Bytes, and ID.
• Sleep: triggers when the sleep frame is found.
• Wakeup: triggers when the wakeup frame is found.
• Error: triggers on the specified type of error frame. Click or tap the drop-down
button of
Error Type to select the error type: Sync, Even Odd, or Check Sum.
8.7.19 I2S Trigger (Option)
In I2S trigger, the oscilloscope searches for the specified data value and take it as the
condition for identifying the trigger. You need to specify the serial clock line (SCLK, 1
pulse is found on the clock line once 1 bit of digital audio data is sent), frame clock
line (WS, used for switch the audio channel data), and serial data line (SDA, used for
transmit audio data represented in binary (2's complement)).

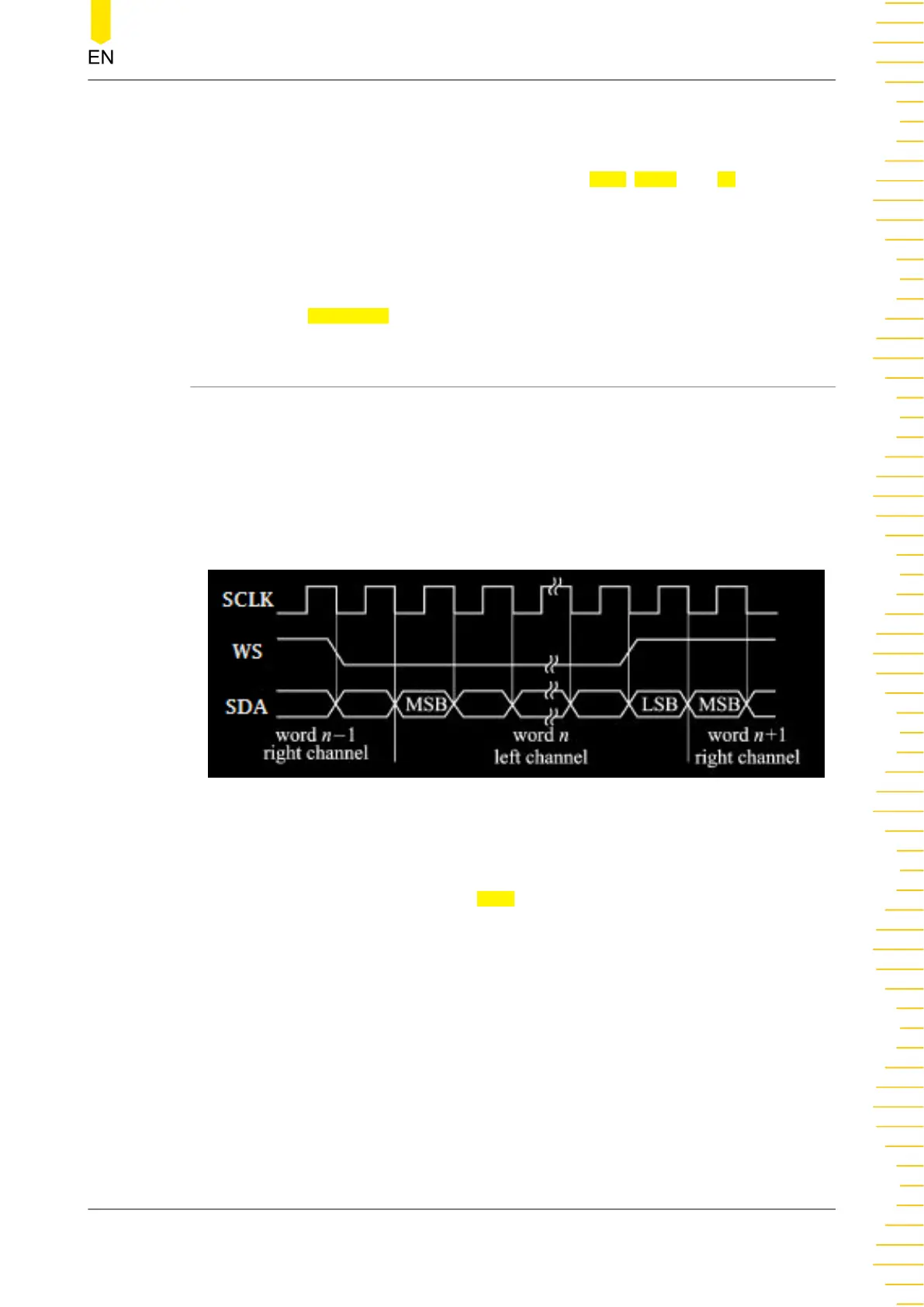

Below is the sequential chart of I2S bus.
Figure 8.40 Sequential Chart of I2S Bus
Trigger Type
Click or tap the drop-down button of Type to select "I2S" from the drop-down list.
Then set the parameters for I2S trigger.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
119
