Baud Rate
Click or tap the drop-down button of Baud to select the preset baud rate. The
available baud rates include 1.2 kbps, 2.4 kbps, 4.8 kbps, 9.6 kbps, 19.2 kbps, and etc.
You can also self-define the baud rate.
Sample Position

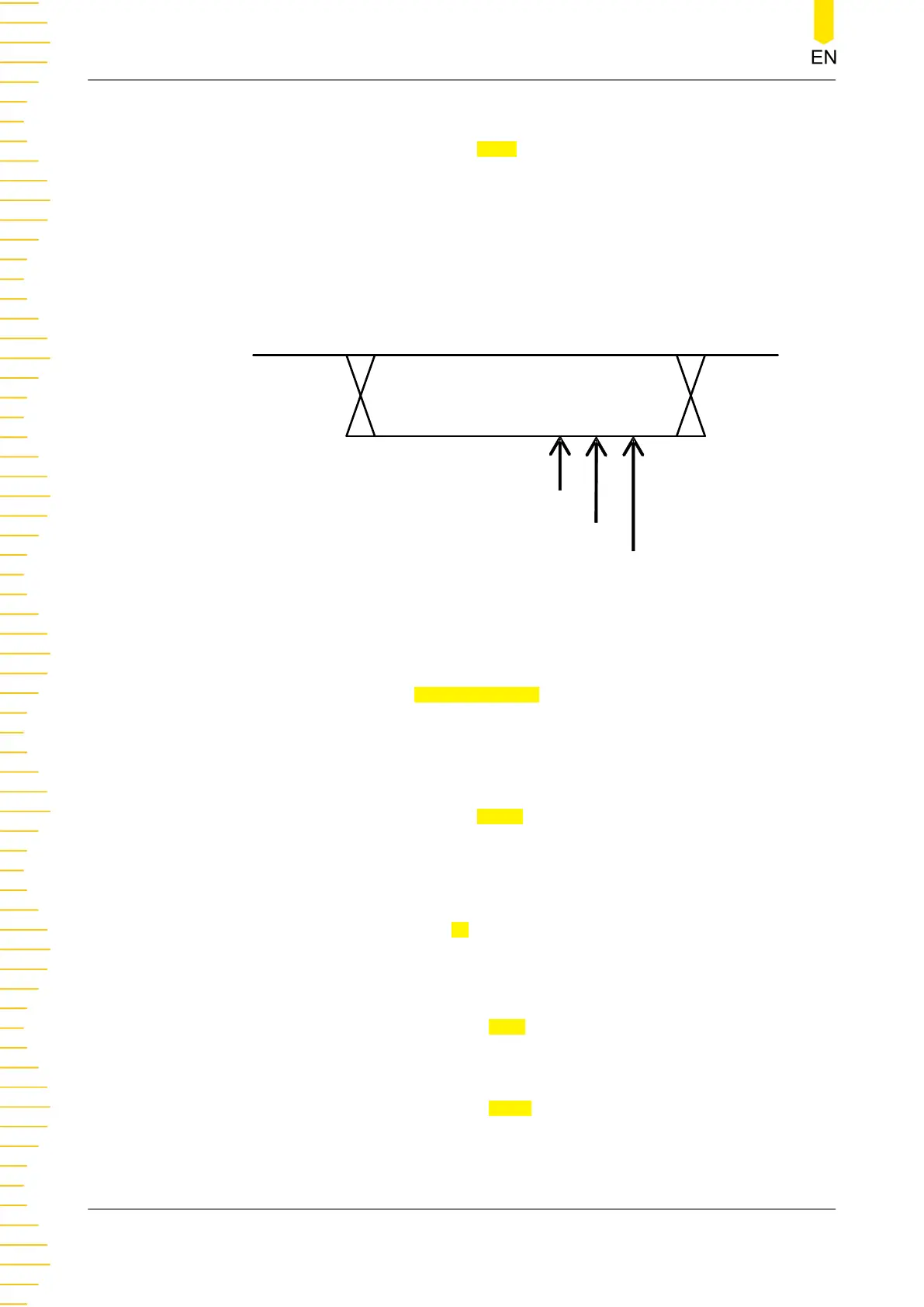

Sample Position is a point within a bit's time. The oscilloscope samples the bit level at
this point. The sample position is represented by the proportion of "the time from the
start of the bit to the sample position" to the "bit time", as shown in the figure below.
One Bit
60%
70%
80%
Figure 8.39 Sample Position (LIN Trigger)
Click or tap the input field of Sample Position to set the sample position of the LIN
trigger with the pop-up numeric keypad. You can also use the specified knob to set it.
Its settable range is from 10% to 90%.
Trigger Condition
Click or tap the drop-down button of
When to set the the desired trigger condition.
• Sync: triggers on the last bit of the sync field.
• ID: triggers when the frames with the specified ID are found.
Click or tap the input field of
ID to set ID value with the pop-up numeric keypad.
You can also use the specified knob to set it.
• Data: triggers when the data that meet the preset conditions are found.
- Click or tap the input field of
Data, and then the "Format" interface is
displayed. You can set the data bit that needs to be operated on. For
details, refer to descriptions in
I2C Trigger
.
- Click or tap the input field of Bytes to set the length of data with the pop-
up numeric keypad. You can also use the specified knob to set it. Its range
is from 1 to 8.
To Trigger the Oscilloscope
MHO2000 User Guide
118
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
