Trigger Type
Click or tap the drop-down button of Type to select "LIN" from the drop-down list.
Then set the parameters for LIN trigger.

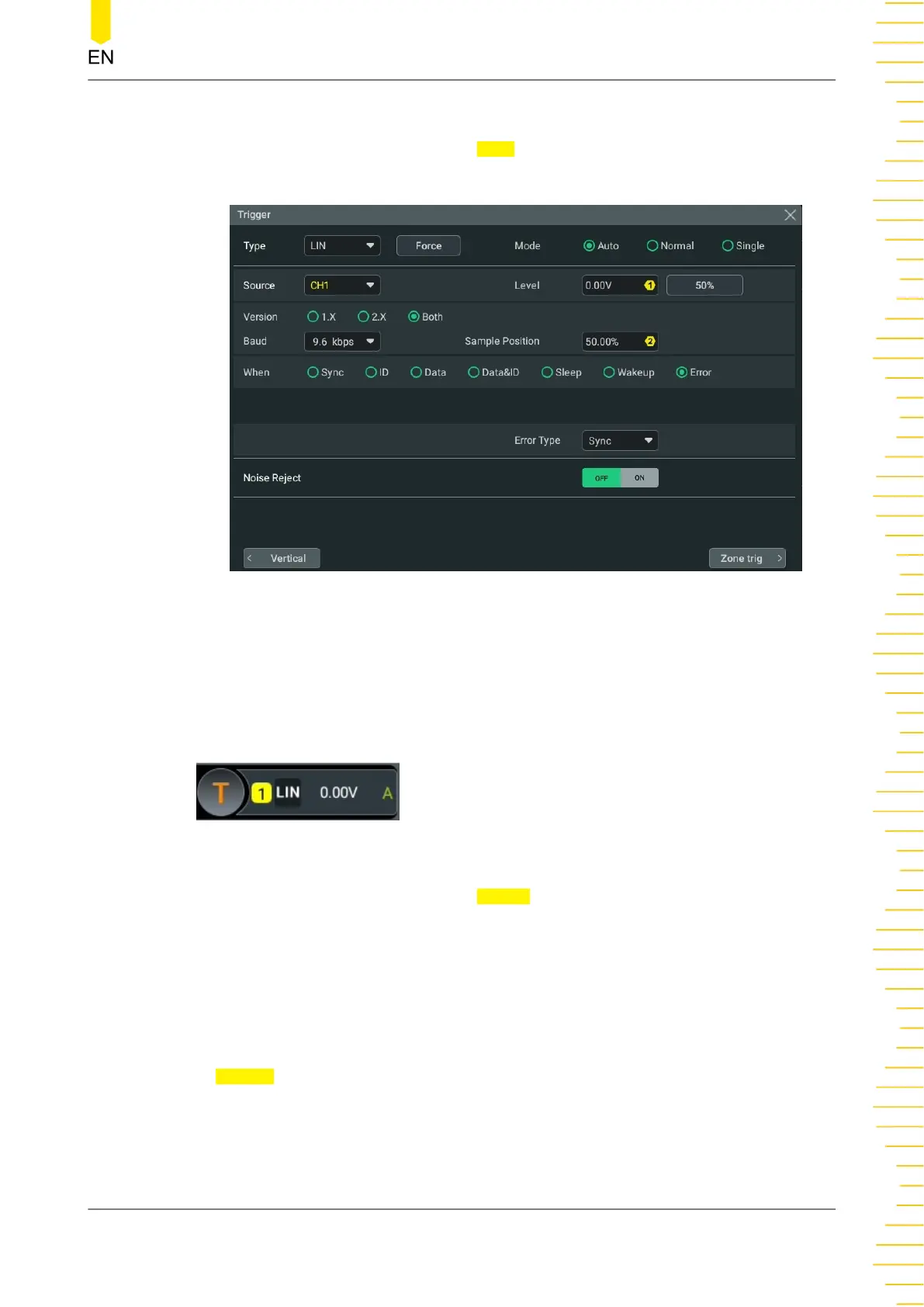

Figure 8.38 LIN Trigger Setting Menu
After selecting the trigger type, then the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Select the Source
Click or tap the drop-down button of Source to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Protocol Version
In
Version, select the protocol version that matches the signal under test. The
available versions include 1.X, 2.X and Both.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
117
