• Post: triggers on the specified position of the FlexRay bus. Select Post as the
trigger condition, and then click or tap its drop-down button to select "TSS End",
"FSS_BSS End", "FES End", or "DTS End" from the drop-down list.
• Error: triggers when an error occurs to the FlexRay bus. Click or tap the drop-
down button of
Error to select the error type. It includes "Head CRC Err", "Tail
CRC Err", "Decode Err", and "Random Err".
• Frame: triggers on the frame of FlexRay bus.
- Click or tap the drop-down button of
Frame to select the frame type. The
types of frames include null, Syns, Start, and All.
- Click or tap the drop-down button of Define to select "ID" or "Cyc Count".
When you select "Cyc Count", set the following parameters: Cyc Comp,
Count Min, and Count Max. Click or tap the drop-down button of
Cyc
Comp to select the comparison conditions. The available choices include =,
≠, >, <, ><, and <>. When a certain condition is selected, click or tap the
input field of Count Min or Count Max to set the min. count or max. count.
When you select "ID", set the following parameters: ID Comp, ID Min, and
ID Max. Click or tap the drop-down button of
ID Comp to select the
comparison conditions. The available choices include =, ≠, >, <, ><, and
<>. When a certain condition is selected, click or tap the input field of
ID
Max or ID Min to set the value. You can also use the specified knob to set it
with the pop-up numeric keypad.
As the occurrence possibility of specified FlaxRay frame is very low, it is
recommended that you set the oscilloscope to "Normal" trigger mode when the
trigger condition is set to "Frame", so as to prevent the instrument from triggering
automatically while waiting for the specified frame. The same goes for "Error" trigger
condition.
8.7.18 LIN Trigger (Option)
This oscilloscope can trigger on the sync field of LIN signal, and can also trigger on
the specified identifier, data, or frame.

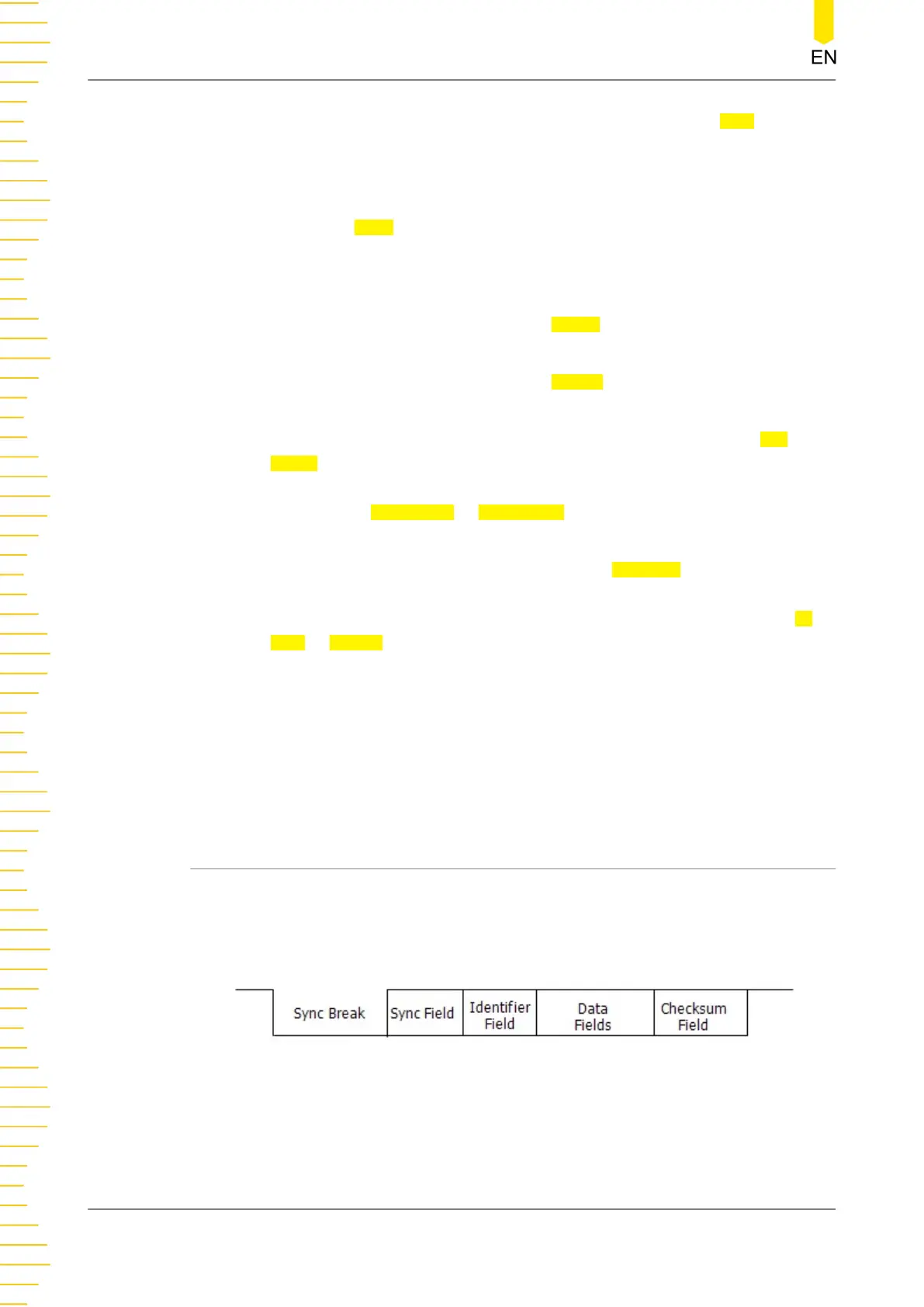

The data frame format of the LIN bus is as shown in the figure below.
Figure 8.37 Data Frame Format of the LIN Bus
To Trigger the Oscilloscope
MHO2000 User Guide
116
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
