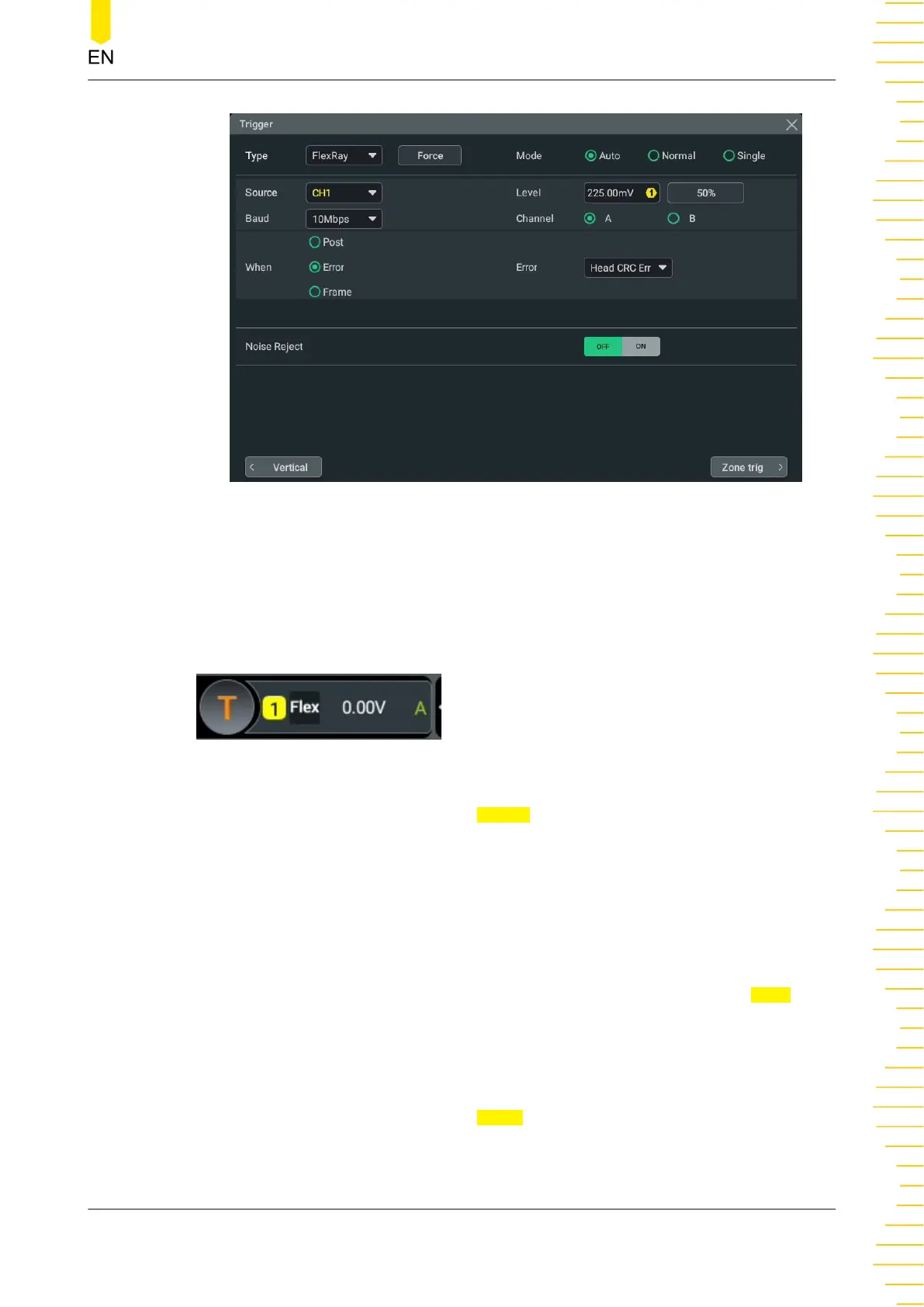

Figure 8.36 FlexRay Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed in the trigger
information label at the top of the screen, as shown in the figure below. The
information will change based on the trigger settings.
Select the Source
Click or tap the drop-down button of
Source to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Baud Rate
You can set the baud rate of the signal. Click or tap the drop-down button
Baud to
select a FlexRay baud rate that matches the FlexRay bus signal. The available baud
rates include 2.5 Mbps, 5 Mbps, and 10 Mbps.
Trigger Condition
Click or tap the drop-down button of
When to set the trigger condition.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
115
