• Answer Error: triggers on the answer error frame.
• Check Error: triggers on the check error frame.
• Format Error: triggers on the format error frame.
• Random Error: triggers on the random error frame, such as the format error
frame, answer error frame, etc.
8.7.17 FlexRay Trigger (Option)
This series oscilloscope can trigger on the specified frame, symbol, error, or position
of the FlexRay bus. FlexRay is a type of differential serial bus configured with three
consecutive segments (i.g. packet header, payload, and packet trailer). Its data
transmission rate is up to 10 Mb/s. Each frame contains a static segment and a
dynamic segment, and ends with the bus idle time.

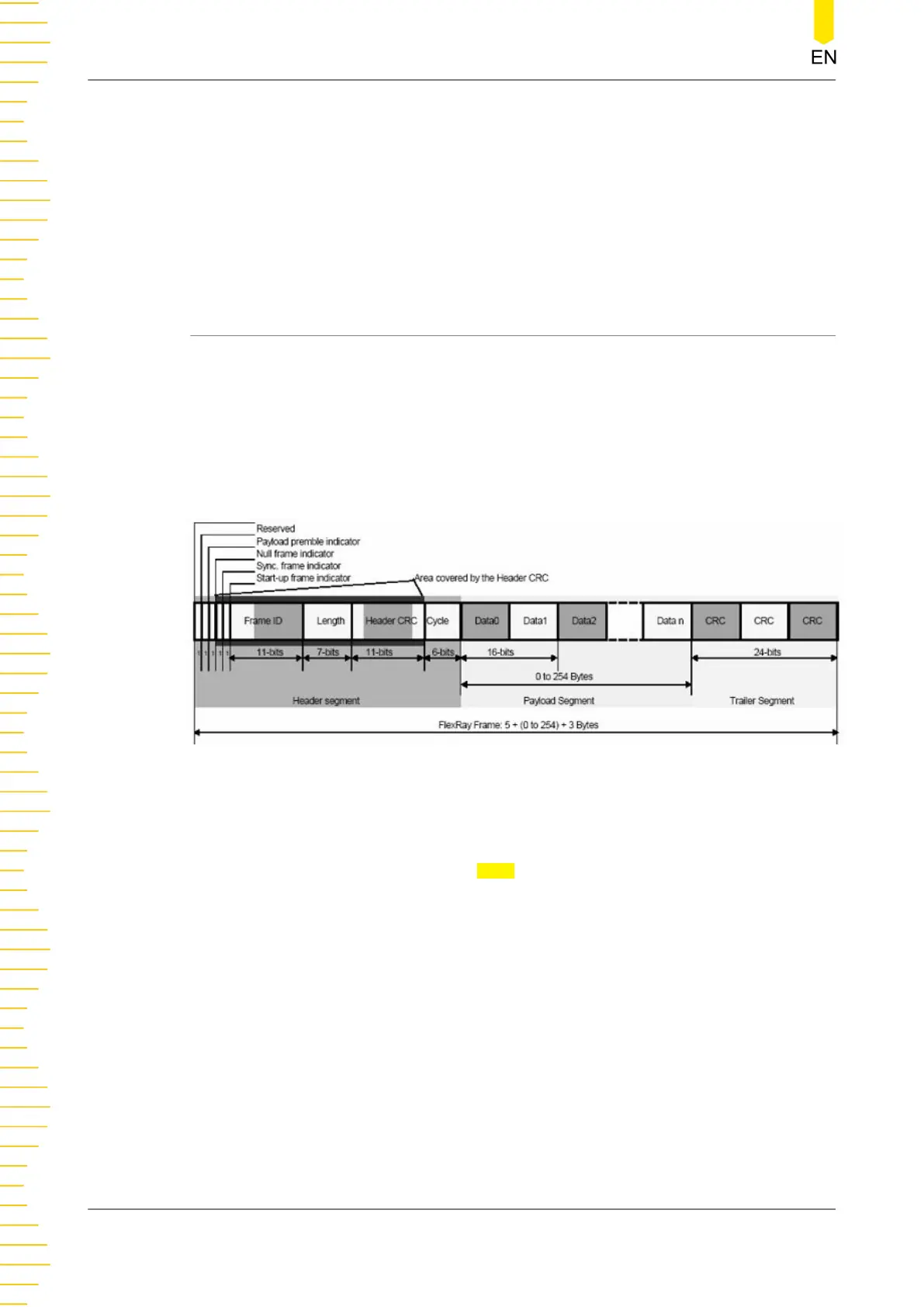

Its format is as shown in the figure below.
Figure 8.35 Frame Format of FlexRay Bus
Trigger Type
Click or tap the drop-down button of Type to select "FlexRay" from the drop-down
list. Then set the parameters for FlexRay trigger.
To Trigger the Oscilloscope
MHO2000 User Guide
114
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
