RIGOL
M300 Quick Guide
14
Insert the Module into the Main Frame
Turn the main frame off; and then, insert the modules following the instructions
below.
As shown in Figure 6, there is a golden circuit board edge on the top and bottom of
the module. Align the two edges with the sliding chutes (as pointed out by the
arrows in the figure below) in the main frame slot and push the module in until you
hear a sound. At this point, interface 2 is connected to the main frame.
Note: For module that needs to be connected to the signal under measurement,
please refer to “Measurement Connections” to connect the external terminal
block and the signals under measurement before inserting it into the mainframe.

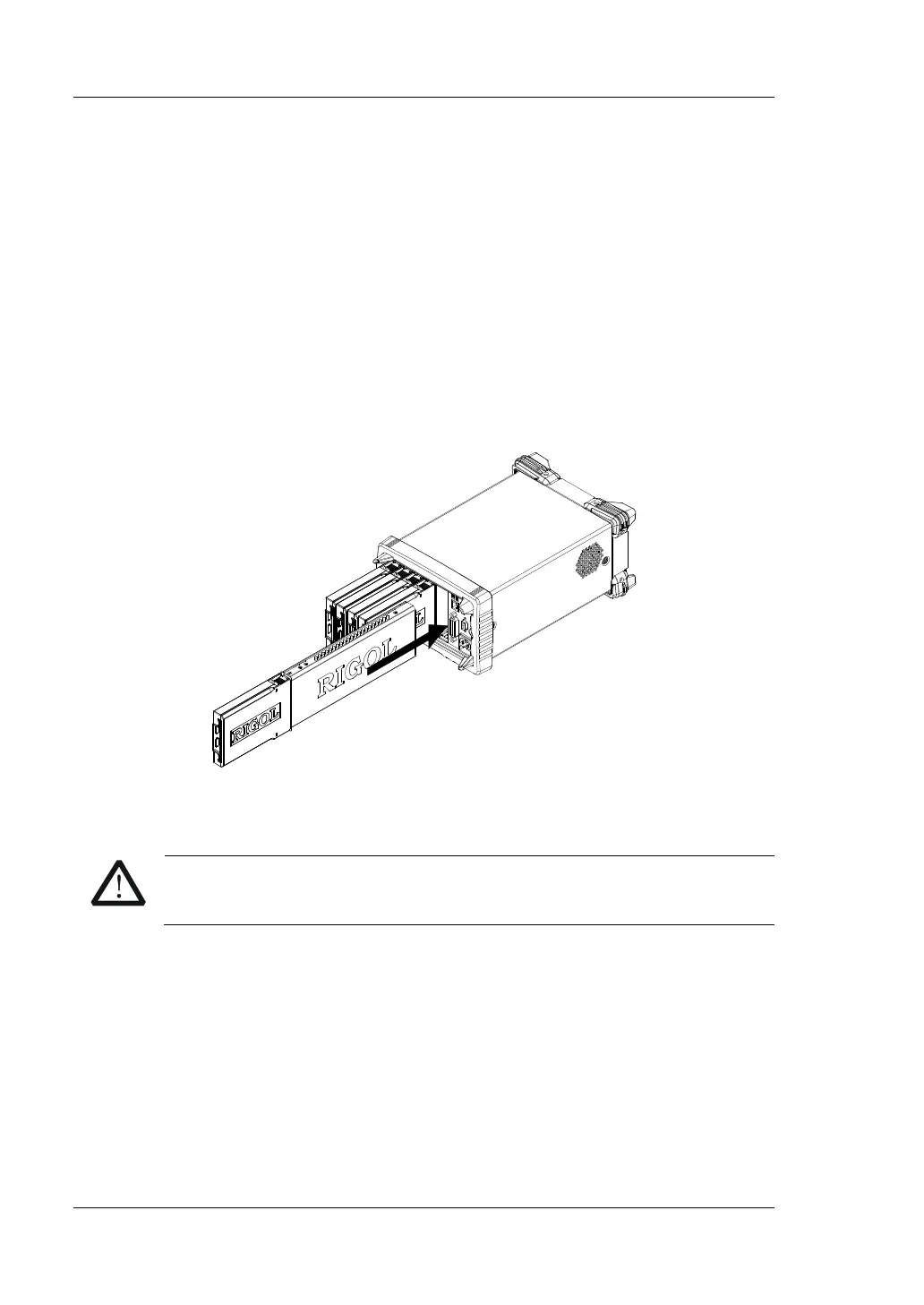

Figure 7 Insert the Module into the Main Frame
CAUTION
All the modules of M300 do not support hot-plugging. Please turn the
main frame off before inserting the modules into the main frame.
