918 Roll Groover
999-998-946.10_REV D
6
ods for the specific service conditions, including chemical
and temperature, should be completed before any instal-
lation is attempted.
Standard Equipment
Refer to the RIDGID catalog for details on accessories
supplied with specific machine catalog numbers.
Assembly
WARNING
To reduce the risk of serious injury during use,
follow these procedures for proper assembly.
Assembling 918 to Bases for Various
Machines
1. Mount the 918 on appropriate machine base, align-
ing with
1
/2" holes. When installing on the 1224 base,
install the spacer plate between the base and 918.
Insert two
1
/2" bolts from underside of base and
securely tighten with
3
/4" Wrench.
2. Mount the hydraulic pump on the base and secure
with four
1
/4" bolts, securely tighten with
7
/16" wrench.
For the 1224 base, the pump bracket will need to be
mounted to the base, and the pump attached to the
pump bracket.
3. Mount the stabilizer on the base. Insert two
3
/8"
screws through the base and securely tighten with
5
/16" hex key.
4. For the 1233/300 Compact, loosely attach the rail
clamp to the underside of the base.
5. See Figures 2 - 5 for details.

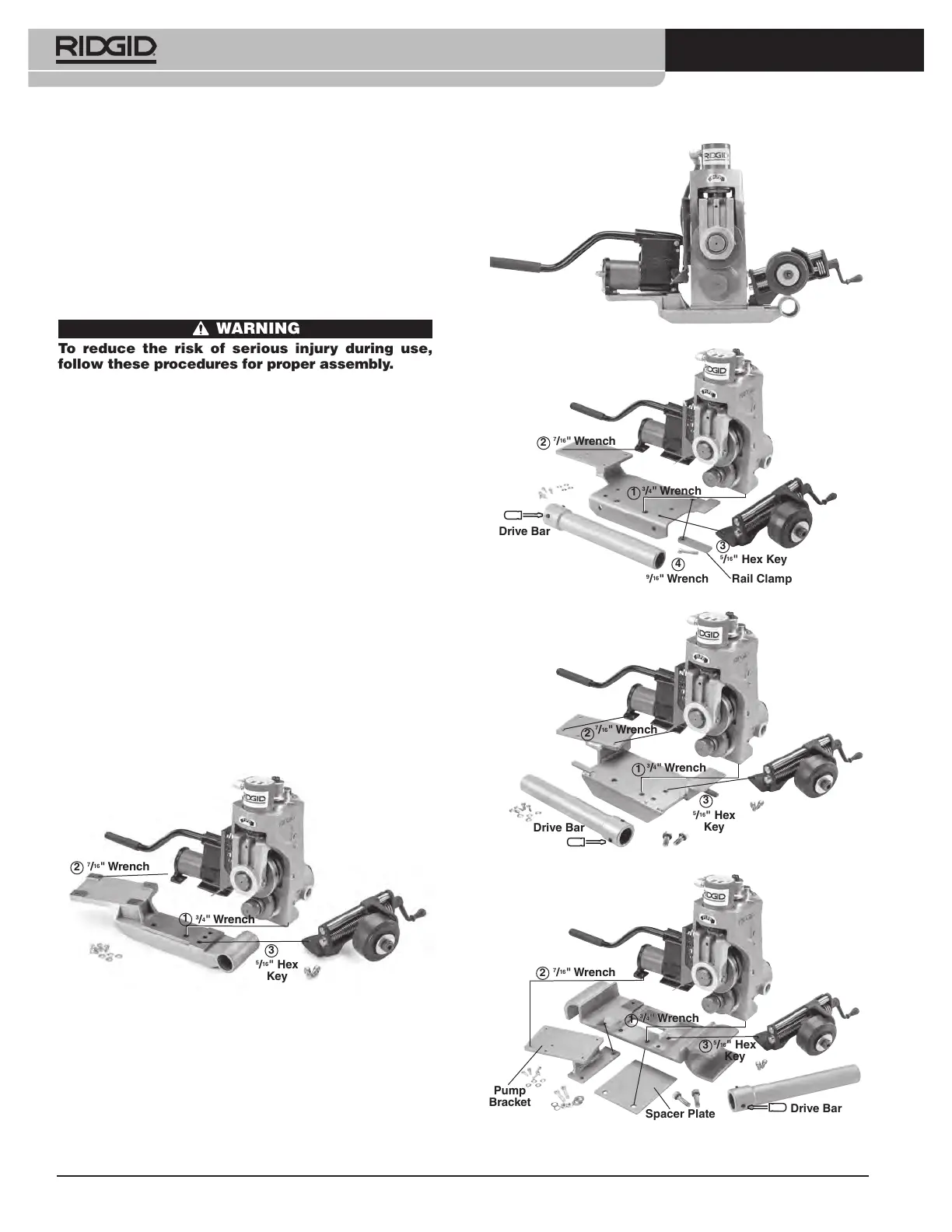

Figure 2A – Assembling 918 to 300 PD Base
Figure 2B – Assembling 918 to 300 PD Base
Figure 3 – Assembling 918 to 300 Compact/1233 Base
Figure 4 – Assembling 918 to 535 Base
Figure 5 – Assembling 918 to 1224 Base
7
/
16
" Wrench
3
/
4
" Wrench
5
/
16
" Hex
Key
2
1
3
7
/
16
" Wrench
3
/
4
" Wrench
5
/
16
" Hex Key
2
1
3
Drive Bar
9
/
16
" Wrench
4
7
/
16
" Wrench
3
/
4
" Wrench
5
/
16
" Hex
Key
2
1
3
Drive Bar
Rail Clamp
7
/
16
" Wrench
5
/
16
" Hex
Key
2
1
3
Drive Bar
Pump
Bracket
3
/
4
" Wrench
3
/
4
" Wrench
Spacer Plate
