5
918 Roll Groover
999-998-946.10_REV D
The 918 Roll Groover typically includes two groove and
drive roll sets for grooving pipe:
• 2"-6" schedule 10 and 40 steel pipe
• 8"-12" schedule 10 and 8" Schedule 40 steel pipe
Other materials can be grooved – see tables in appendix.
Other groove and drive shaft sets are required for other
sizes and copper tubing.
A two-stage hydraulic hand pump is used to advance the
groove roll into the pipe to form grooves. A groove depth
gauge is provided to aid in groove set up and an adjust-
ment nut is included to control groove diameter.
An adjustable stabilizer is provided to aid in maintaining
tracking and control of the pipe during grooving, espe-
cially pipe lengths approaching the 8" minimum pipe
length.
The groover can be driven by a variety of RIDGID ma-
chines. Different mounting kits are required for each
machine.

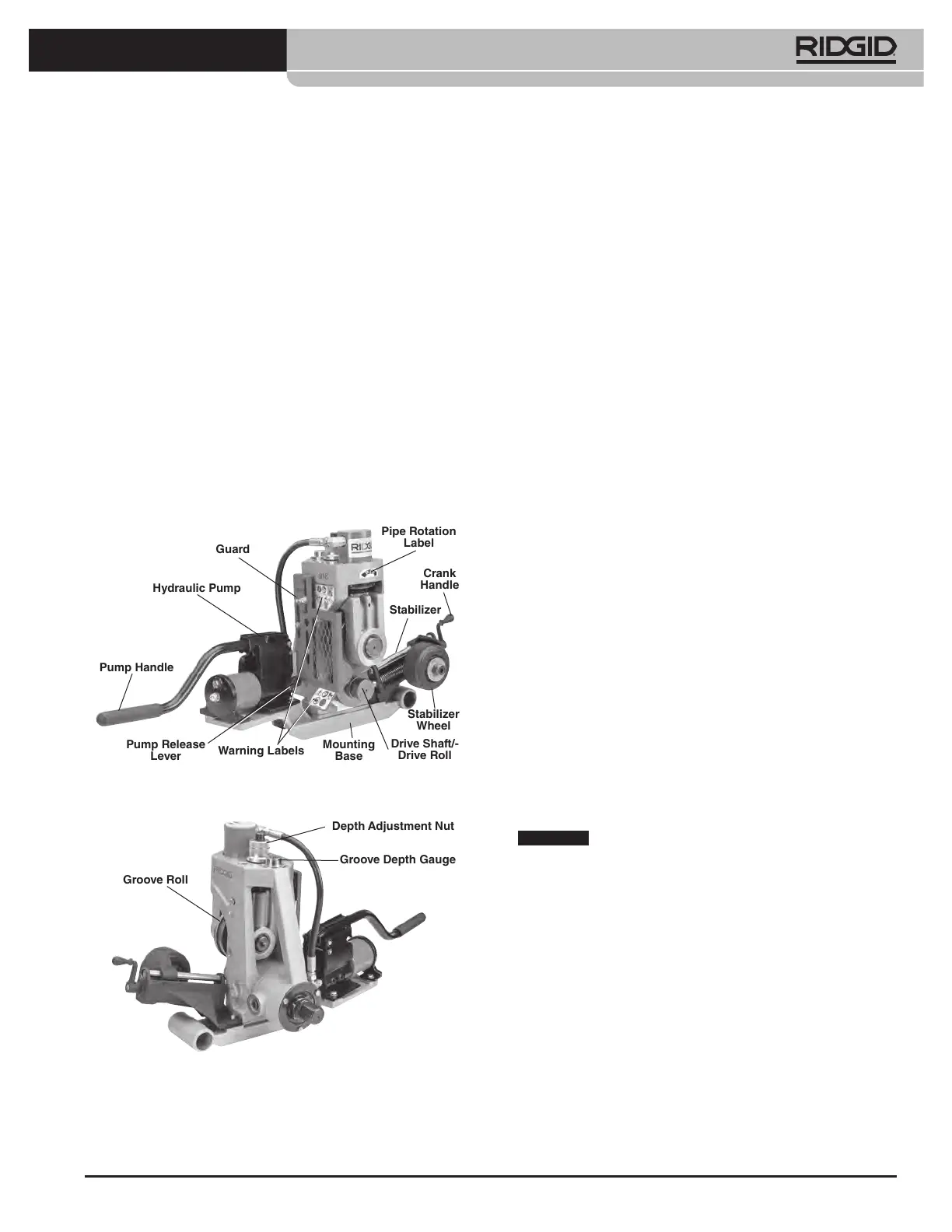

Figure 1A – 918 Roll Groover
Figure 1B – 918 Roll Groover
Specications
Materials, Pipe ......... Steel, Stainless Steel, Aluminum
and PVC
Capacity
Standard Groove
Roll Sets ................ 2"-6" schedule 10 and 40 steel pipe
Optional Groove
Roll sets ................. 8"-12" schedule 10 and 8" Sched-
ule 40* steel pipe
1
1
/4" to 1
1
/2" schedule 10 and 40
steel pipe
2" - 6" Copper Tube (Type K, L, M,
& DWV)
Refer to the Table I, II and III for oth-
er materials and wall thicknesses
Groove Diameter
Adjustment ............... Groove Depth Gauge and Depth
Adjustment Nut
Actuation .................. 2 Stage Hydraulic Hand Pump
Stabilizer .................. Manually adjusted, for 2
1
/2" to 12"
Pipe
Mounting Bases
Available .................. RIDGID 300 Power Drive
RIDGID 1224 Threading Machine
RIDGID 535A/M Threading Ma-
chine
RIDGID 300 Compact/1233
Threading Machine
Weight (918, 300 PD Base,
Stabilizer) ................. 82 lbs. (37 kg)
Dimensions (918, 300 PD Base,
Stabilizer) WxDxH ... 35" x 14" x 17.5"
(889 mm x 356 mm x 445 mm)
*Do not use to groove 8" schedule 40 steel pipe harder than 150 BHN. This may
result in improperly formed/out of specification grooves.
When properly used, the Model 918 Roll
Groover is designed to make grooves in 1" - 12" pipe
that are dimensionally within the specifications of AWWA
C606-15. Improper use of this equipment can make
out of specification grooves and damage the pipe and
equipment.
Selection of appropriate materials and joining methods
is the responsibility of the system designer and/or in-
staller. Before any installation is attempted, careful evalu-
ation of the specific service environment, including chem-
ical environment and service temperature, should be
completed. Selection of improper materials and methods
could cause system failure.
Stainless steel and other corrosion resistant materials
can be contaminated during installation, joining and form-
ing. This contamination could cause corrosion and pre -
mature failure. Careful evaluation of materials and meth-
5
Guard
Crank
Handle
Hydraulic Pump
Pipe Rotation
Label
Stabilizer
Stabilizer
Wheel
Drive Shaft/-
Drive Roll
Mounting
Base
Warning Labels
Pump Handle
Pump Release
Lever
Depth Adjustment Nut
Groove Roll
NOTICE
Groove Depth Gauge
