19
918 Roll Groover
999-998-946.10_REV D
19
Changing Drive Shaft/Drive Roll
The 918 has two styles of drive shaft. A one piece drive
shaft (used on the 2"-6" and 8"-12" sizes) and the two
piece unit consisting of a drive shaft and interchangeable
drive roll (used for the 1", 1
1
/4" to 1
1
/2" and 2"-6" Copper
sizes). See Figure 27.

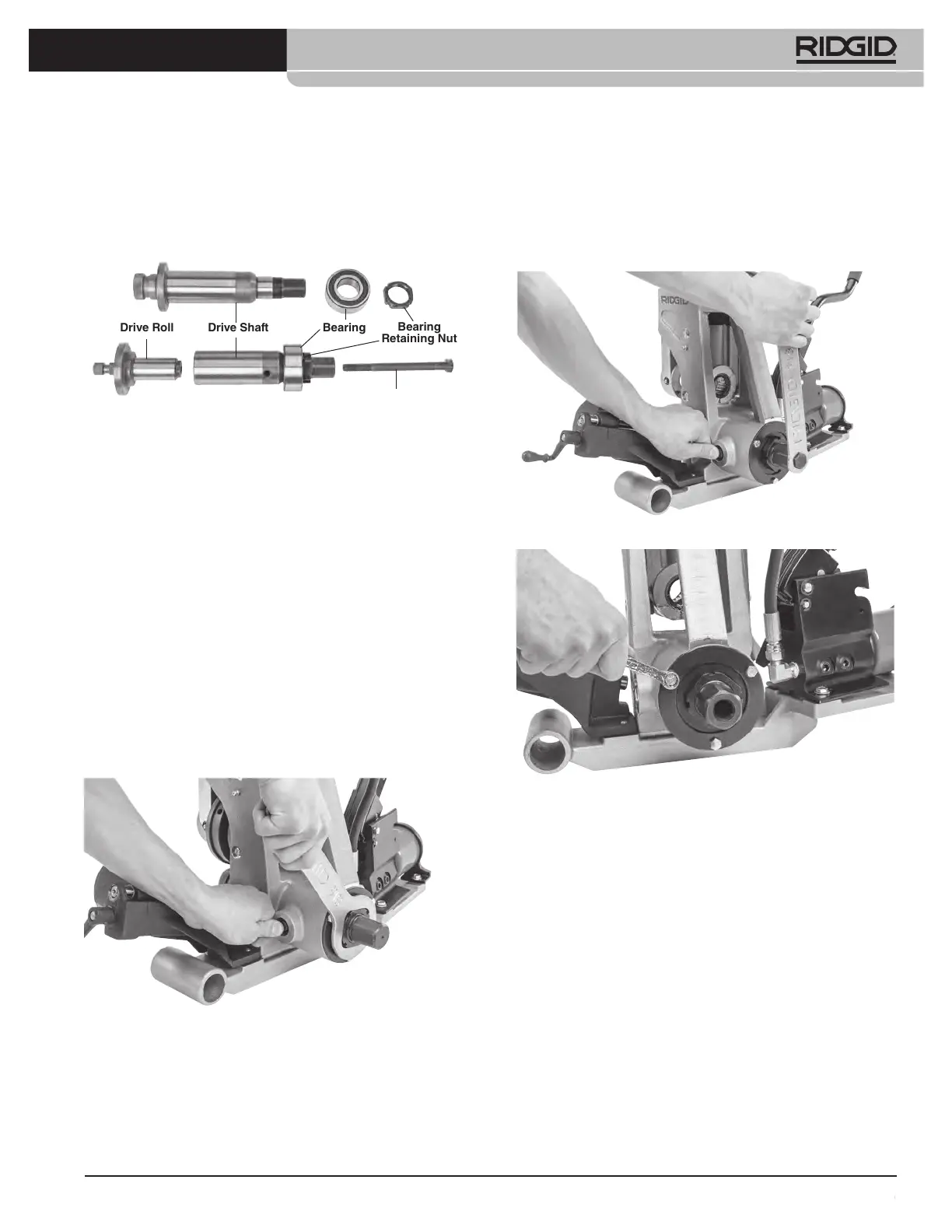

Figure 27 – One Piece Drive Shaft (Top), Two Piece Drive
Shaft (Bottom)
1. Remove the groove roll.
2. Manually rotate the drive shaft while applying pressure
to the spindle lock pin until the lock pin engages the
spindle lock hole in the driveshaft.
Changing Drive Shaft
3. With the spindle lock engaged, use the box wrench to
remove the drive shaft bearing retaining nut (Figure
28).
4. Release pressure on the spindle lock pin, allowing to
retract.
5. Remove the drive shaft from the front of the groover.
6. Reverse steps to install. Make sure parts are clean to
keep dirt out of bearings. Lubricate bearings before
use.
Figure 28 – Engaging Spindle Lock and Removing Drive
Shaft Retaining Nut
Changing Drive Roll (Two-Piece Drive Shafts)
1. With the spindle lock engaged, use the 15/16" hex in
the box wrench to loosen the draw bolt.
2. Tap draw bolt head with a soft face mallet to release
drive roll from drive shaft.
3. Unthread draw bolt from drive roll, remove drive roll
from front of groover.
4. Reverse steps to install. Make sure drive roll is fully
seated in the drive shaft and draw bolt is secure.
Figure 29 – Engaging Spindle Lock and Loosen Draw Bolt
Figure 30 – Removing Retaining Plate Hex Screws
Changing One Piece Drive Shaft to Two Piece Drive
Shaft
1. Remove the one piece driveshaft.
2. Remove the rear bearing retaining plate screws and
the plate, see Figure 30.
3. Remove the rear bearing out of the back of the 918
housing.
4. Install the two piece drive shaft assembly into the back
of the 918 housing. Make sure parts are clean to keep
dirt out of bearings.
5. Reinstall the rear bearing retaining plate and screws.
6. Install the required drive roll. Lubricate bearings before
use.
Drive Roll
Drive Shaft
Bearing
Bearing
Retaining Nut
