918 Roll Groover
999-998-946.10_REV D
18
• Lubricate the groover at grease fittings (See Figure
23). Add grease until a small amount pushes out.

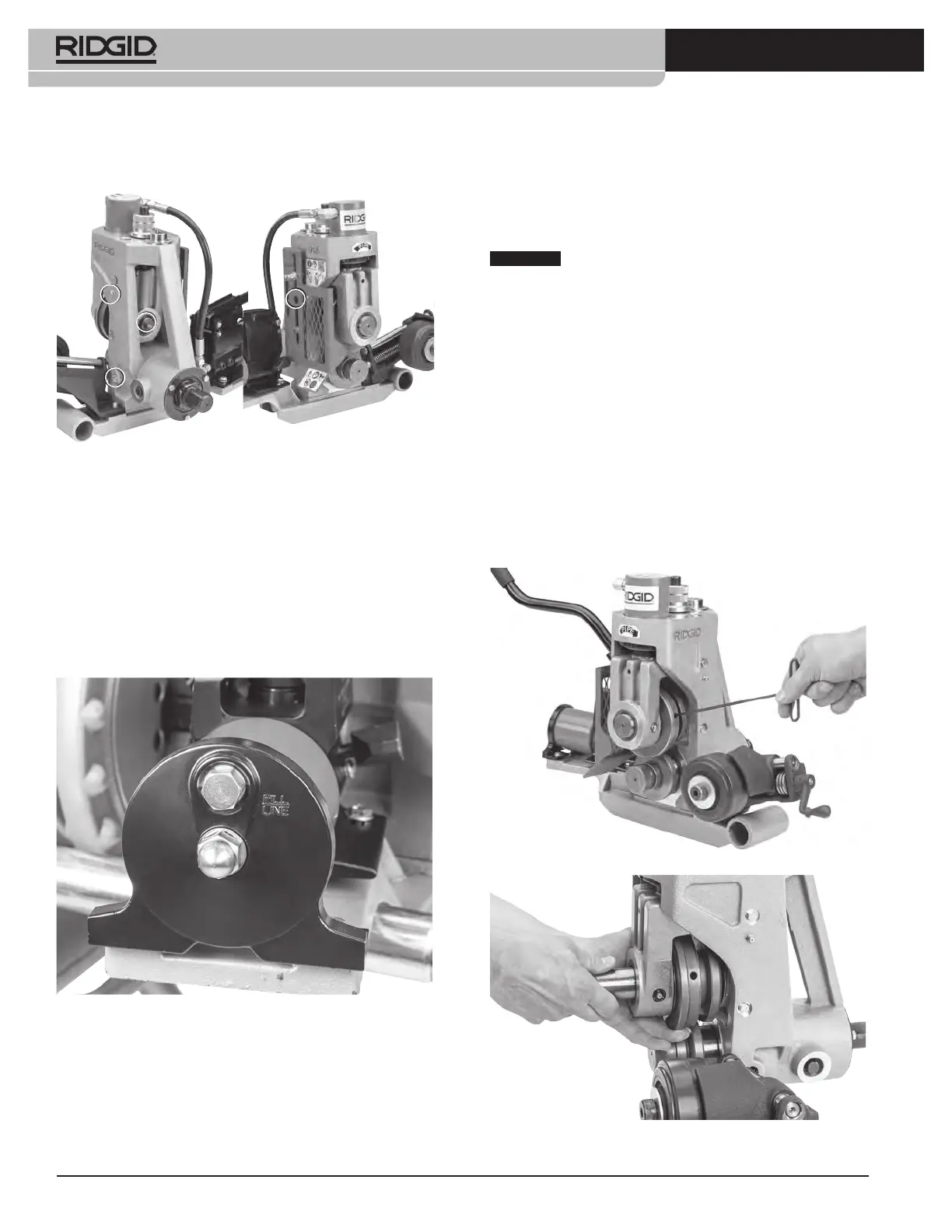

Figure 23 – Grease Fittings
• Apply a light lubricating oil to pivot points and areas of
relative motion, such as the depth adjustment nut and
the stabilizer feedscrew. Wipe any excess lubricant
from exposed surfaces.
Hydraulic Fluid Level
Remove the reservoir filler cap (Figure 24). The oil level
should come to the fill line when the pump is resting on
its base and the ram is fully retracted. Use only ISO 15
hydraulic oil.
Figure 24 – Reservoir Filler Cap
Once a year, or more often with heavy use or use in
dusty conditions, the hydraulic oil should be changed. To
drain oil, remove the reservoir filler cap and drain the oil
in a container. Properly dispose of the used hydraulic oil
per the Safety Data Sheet (SDS) and local requirements.
Hydraulic system may need air bled after changing fluid.
To bleed hydraulic system, position ram lower than pump
by tipping the machine on its side. Extend and return the
cylinder piston several times to permit air to return to the
pump reservoir.
Changing Roll Sets
When changing roll set, always make sure
drive roll and groove roll markings match. Mismatched
parts can make improper grooves and cause leaks.
Always change rolls as sets – do not mix rolls from dif-
ferent sets.
If installed, remove the roll groover from power drive or
threading machine and place on a stable workbench.
Properly support the rolls and shafts while replacing.
Changing Groove Roll
1. Fully retract the groove roll.
2. Fully retract the stabilizer wheel.
3. Loosen groove roll set screw (Figure 25). Grasp
groove roll and remove upper shaft and groove roll
from groover (Figure 26).
Figure 25 – Loosening Grooving Roll Set Screw
Figure 26 – Removing Retaining Shaft and Groove Roll
NOTICE
