2. Connection to liquid gas
A certified rubber hose should be used to connect the device to the cylinder.
To connect the gas cylinder, use a reducer with a nominal gas pressure of 37 mbar
Connect the rubber conduit to the appliance spigot using a 0.5 m section of steel installation pipe (seamless).
The length of the hose must not exceed 1.5 meters without any kinks or twists.
The hose must not run close to sharp edges or objects with sharp ends.
The hose should not be routed near sources of high temperature.
The cable must be accessible to allow inspection for abrasion or wear along its entire length.
If the hose is not perfectly tight and gas is leaking, do not try to repair it: replace it with a new one.
Check the hose for expiry date (marked with a series on the hose itself).
ATTENTION! Installation and replacement of gas cylinders should be carried out away from sources of ignition.

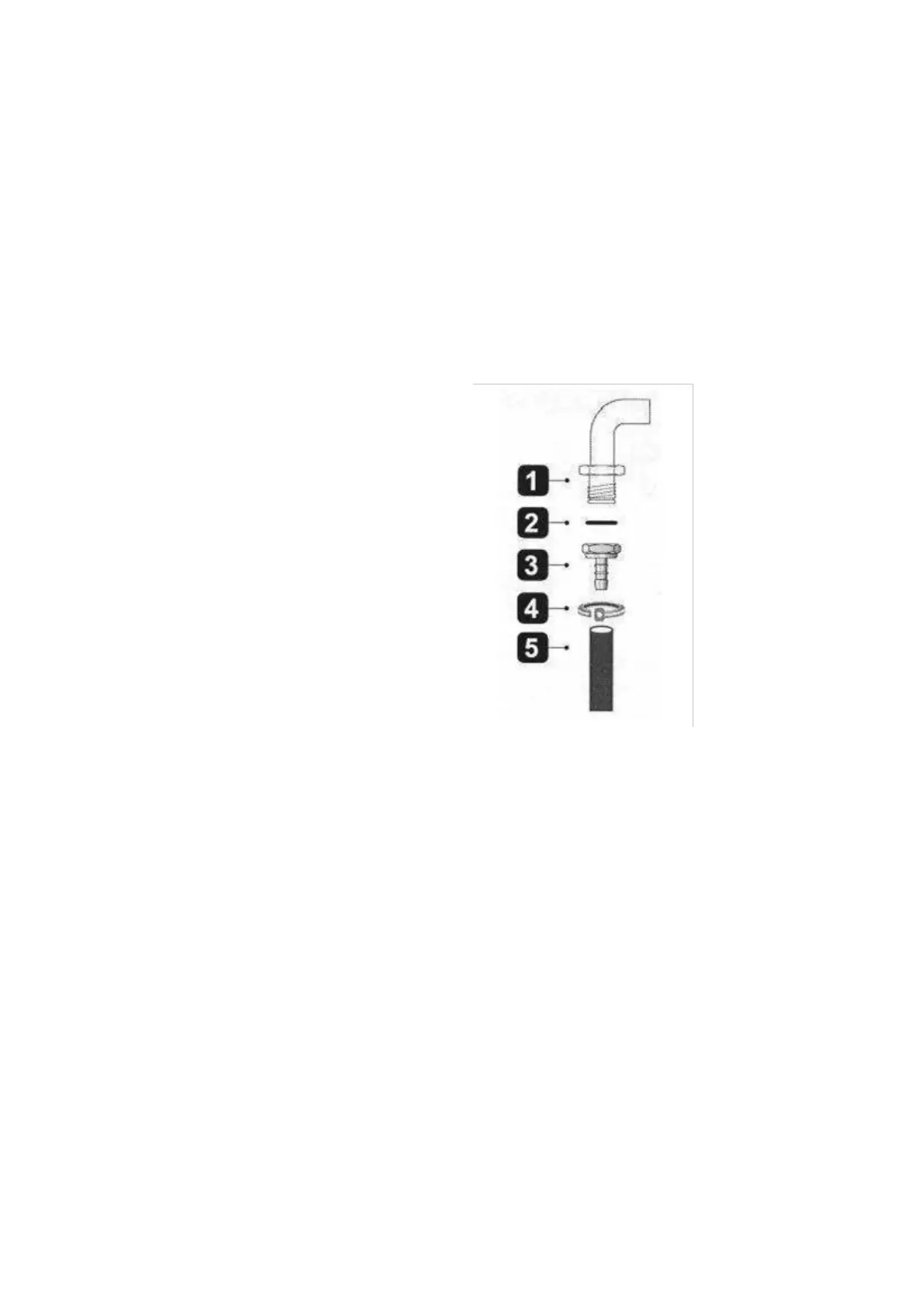

1. Nipple G1/2
2. Silicone gasket
3. G1/2 connector
4. Clamp
5. Rubber hose (inner diameter 8 mm)
The correct routing of the gas supply hose
1. Power cord
2. Gas supply hose
3. Clamp
ATTENTION!
Each time you connect the appliance to gas cylinder, check the tightness of the cylinder valve and the connection
of the reducer with cylinder and its operation.
ATTENTION!
1. It is unacceptable to check tightness using an open flame (e.g. a match or light up). There is a risk of
explosion! You can use soapy water to check for leaks
2. Periodically check the condition of the hose and the tightness of the connection, in accordance with
applicable regulations
3. The rubber hose should not touch hot appliance elements.
ATTENTION! CONNECTION BY RUBBER HOSES COMPLIANT WITH CURRENT REGULATIONS IS ONLY ALLOWED IF
THE ENTIRE LENGTH OF THE HOSE IS POSSIBLE TO CONTROL
The device is made in the second category and can operate on two types of gas II2E3B/P.
By default, the device is set to gas from family 2.
2E – high-methane natural gas GZ20 - 20mbar (factory setting).
The device can be powered by gas from family 3: 3B/P – propane butane.
In order to adapt the device to propane-butane (PB/P) gas, the nozzles must be replaced.
