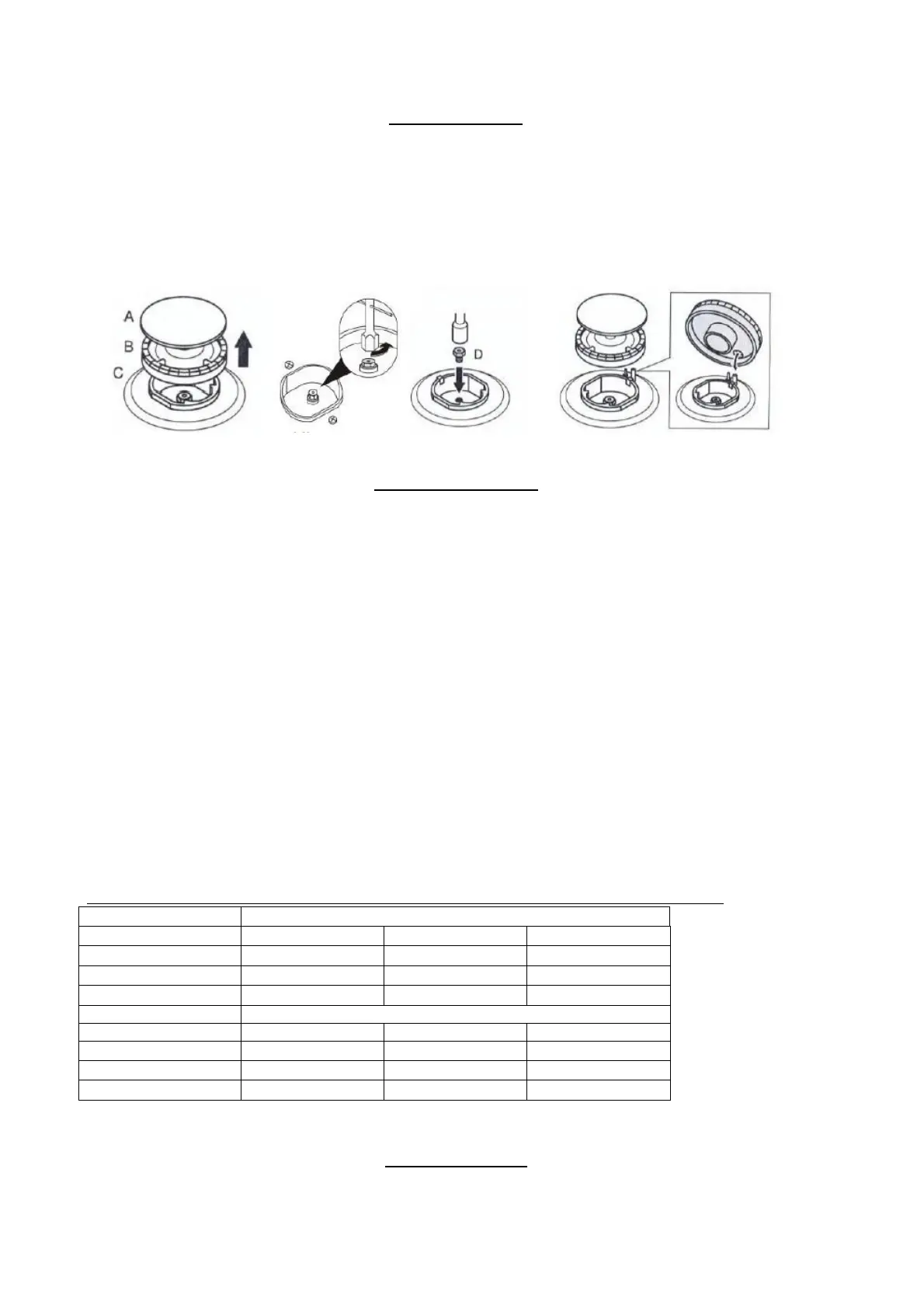

REPLACING NOZZLES
To replace the nozzles:
1. Wait until the appliance cools down
2. Remove the grate
3. Remove the burner caps
4. Unscrew the nozzles using a socket wrench "7" and replace them with nozzles adapted to the feed gas
5. Install the burner caps and grate
FLAME ADJUSTMENT
The valves are adjusted by adjusting the economy flame. To do this, you should:
• turn the knob to turn on the adjustable valve
• set the knob to position ,,low flame”
• in position ,,low flame”, remove the knob from the valve
• turn the adjustment screw and observe the flame
The flame should be set at such a height that it does not go out in the event of a slight breeze and when quickly
switched from full flame inversely. A properly adjusted flame should have the shape of a green-blue cone,
approximately 2-4 mm high.
Place the knob on the valve.
ATTENTION!
If there are visible changes in gas pressure in the gas installation, the safety flame should be adjusted at
low pressure so that the burner does not go out during normal use.
POWER TABLE AND NOZZLE DIAMETERS DEPENDING ON THE TYPE OF SUPPLY GAS
Gas type
Burner
2E - G20 – 20 mbar
Small
Middle
Large
Diameter injector [mm]
0,72
0,97
1,15
Nominal input [kW]
0,90
1,55
2,60
Gas consumption [m
3
/h]
0,086
0,148
0,248
Gas type
Burner
3B/P-G30 37mbar
Small
Middle
Large
Diameter injector [mm]
0,50
0,60
0,75
Nominal input [kW]
1,10
1,70
2,60
Gas consumption [g/h]
79
124
189
COMMON FAULTS
1. Ignition does not ignite the gas or does not always ignite it
• Check if the appliance is connected to the electricity network
