44
ATTENTION!
The appliance can be connected to gas on the right or left side. Screw the cap (4) onto the unused supply
pipe - see COMPLETION, FIG. II. After connecting the appliance to the gas installation, check whether gas is
leaking from under the cap.
1. Natural gas connection
The appliance can be connected to the gas installation "rigidly" or using a certified flexible metal hose.
The maximum length of the flexible hose should not exceed 2.0 m.
The hose should not come into contact with any moving parts and should not pass through a space where
there is not enough space.
When connecting to a rigid piping system, take care to not cause stress at any point in the installation or in any
part of the device.
At the end of installation, perform a gas leak test using a soapy solution.

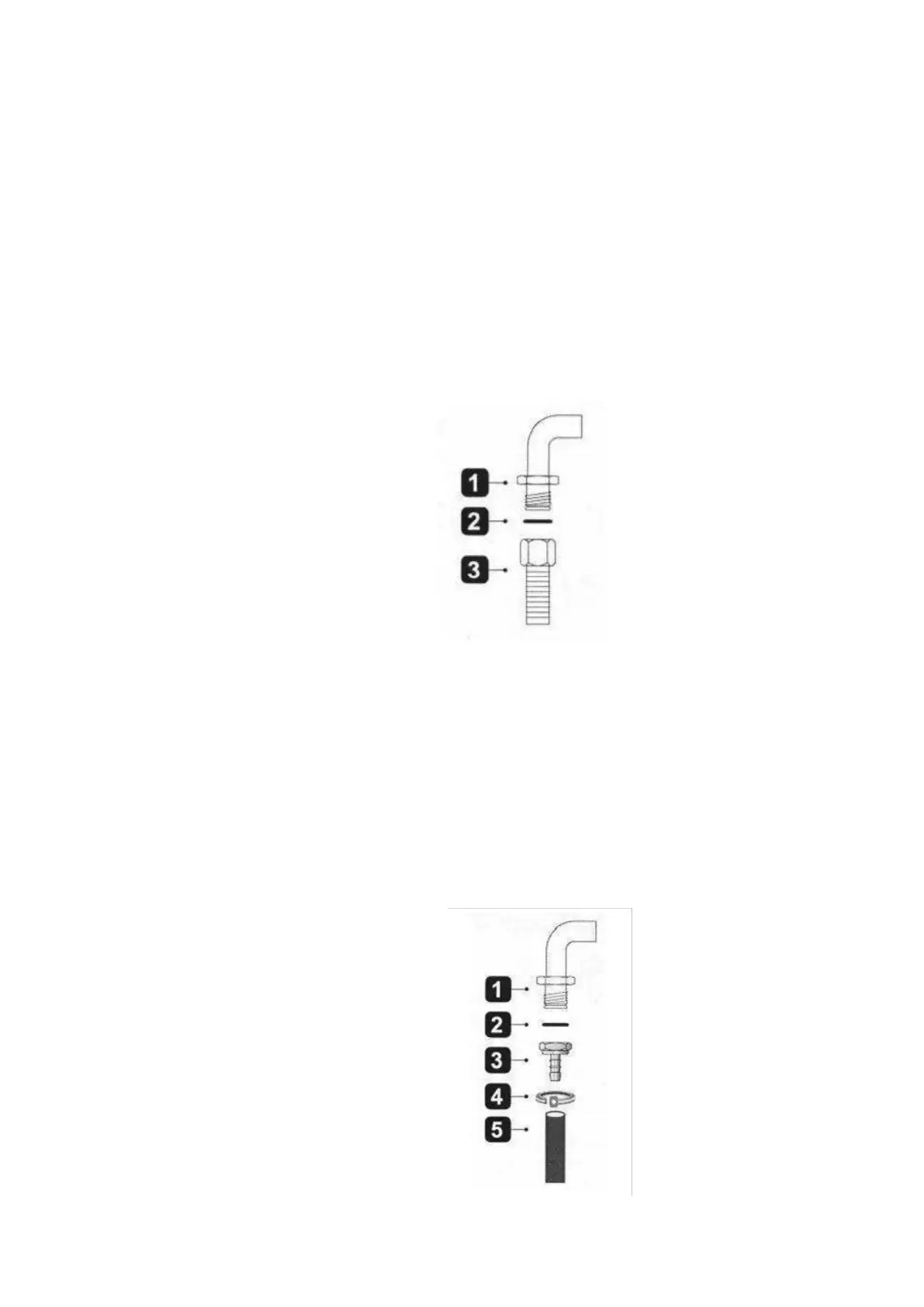

1. Nipple G1/2
2. Silicone gasket
3. G1/2 gas hose (compliant with EN 14800
2. Connection to liquid gas
A certified rubber hose should be used to connect the device to the cylinder.
To connect the gas cylinder, use a reducer with a nominal gas pressure of 37 mbar
Connect the rubber conduit to the appliance spigot using a 0.5 m section of steel installation pipe (seamless).
The length of the hose must not exceed 1.5 meters without any kinks or twists.
The hose must not run close to sharp edges or objects with sharp ends.
The hose should not be routed near sources of high temperature.
The cable must be accessible to allow inspection for abrasion or wear along its entire length.
If the hose is not perfectly tight and gas is leaking, do not try to repair it: replace it with a new one.
Check the hose for expiry date (marked with a series on the hose itself).
ATTENTION! Installation and replacement of gas cylinders should be carried out away from sources of ignition.
1. Nipple G1/2
2. Silicone gasket
3. G1/2 connector
4. Clamp
5. Rubber hose (inner diameter 8 mm)
