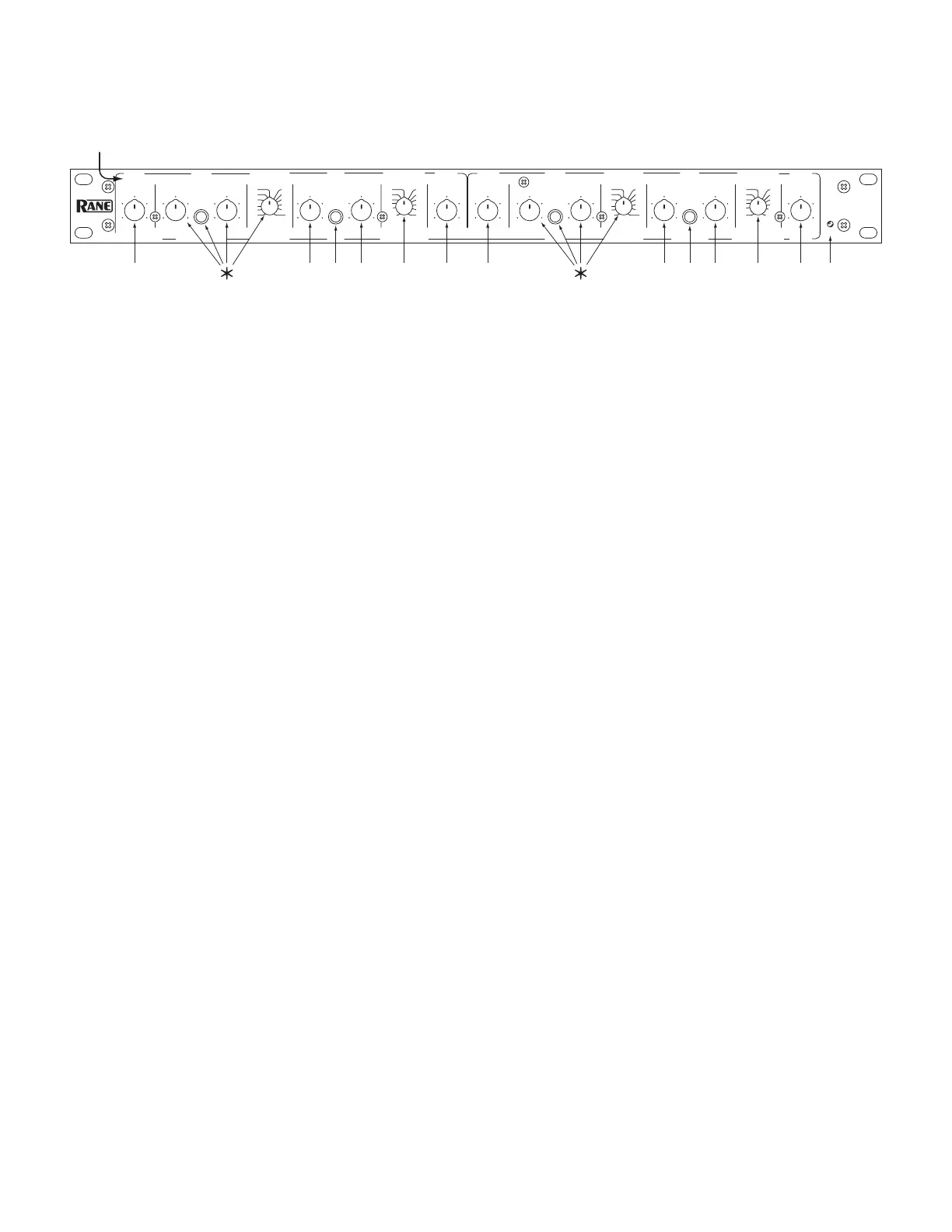

FRONT PANEL: STEREO 2-WAY CONFIGURATION
Observe the labels above the controls for stereo operation.
*Not used for 2‑channel 2‑way
1 Channel 1 MASTER LEVEL control: Sets the overall Level of Channel 1 without altering the relative settings of the Low and
High frequency Outputs. Unity gain for all level controls is at “7”.
2 Channel 2 MASTER LEVEL control: Sets the overall Level of Channel 2 without altering the relative settings of the Low and
High Outputs.
3 LOW LEVEL control: Sets the Level of signal going to the Low Frequency output in this channel. Refer to ‘Setting the Output
Level Controls’ on page Manual-13.
4 LOW MUTE switch: When pressed to the in position, all signal is removed from the Low Frequency Output. is eases tune-up
procedures as described on pages Manual-9-14.
5 LOW DELAY control: Adds from 0 to 2 ms of time Delay to the Low Frequency Output only. is allows a low frequency driver
to be electronically phase-aligned with a mid frequency driver whose diaphragm is situated behind the low frequency diaphragm.
Refer to ‘Time Delay Adjustment’ on pages Manual-9-12.
6 LOW / HIGH crossover frequency selector: is 41-detent selector sets the crossover frequency between the Low and High
frequency Outputs. Refer to ‘Selecting Crossover Frequencies’ on page Manual-9.
7 HIGH LEVEL control: Sets the Level of signal going to the High frequency Output only.
8 POWER indicator: Two guesses. When this yellow LED is lit, you guessed right — the unit is on and ready.
