47
EN
(7) (12)
(12)(4)(3)
9
10
(2)
(12)
11
ATTENTION!
Inserting the tubular motor
(6) forcibly into the winding
shaft (12) will cause serious
damage.
◆ Never knock the tubular
motor (6) with force into
the winding shaft (12).

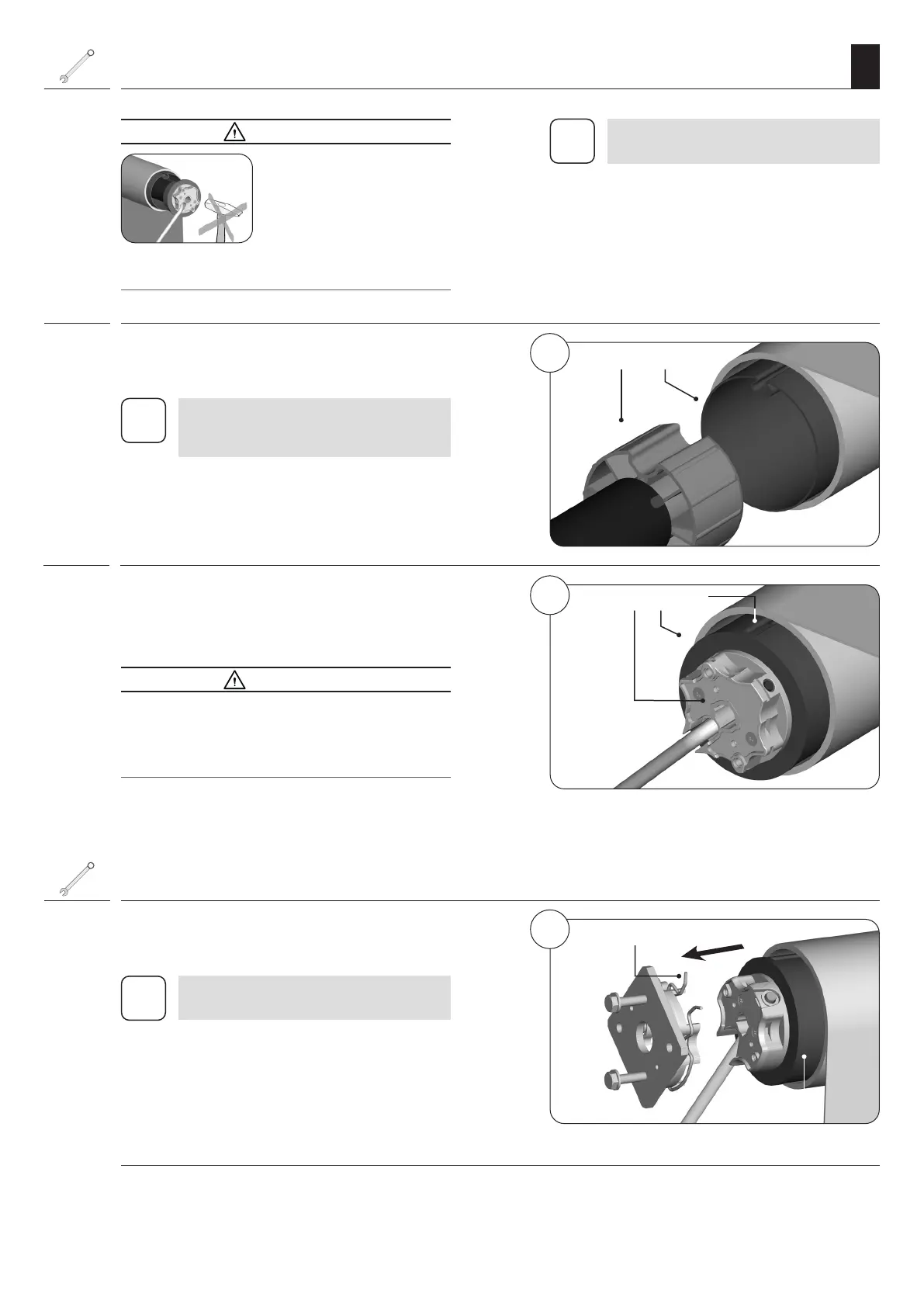

7.5 Sliding the tubular motor (6) into the winding shaft (12)
1. First slide the catch (7) into the
winding shaft (12).
2. Subsequently press the tubular motor into the
winding shaft (12) until the adapter (4) is fully
inserted in the shaft.
ATTENTION!
◆ Ensure that the adapter (4) does not slip off the
magnetic ring (5) on the drive head (3) during
the installation process. Otherwise malfunctions
may occur, see page 59.
i
The motor cable (10) must be laid with-
out kinking.
i
The motor must have sufficient free
space for winding shafts with internal
felt.
7.6 Inserting the motor into the drive bearing (1)
1. Press the drive head (3) lightly into the click bear-
ing (1) until it engages.
i
The tubular motor can be fitted into the
click bearing (1) in 4 positions.
The motor can be released from the
click bearing (4) at any time by means of
expanding the retaining spring (2).
7.6.1 Inserting the winding shaft (12) into the counter bearing
Finally, insert the winding shaft back into the exist-
ing counter bearing.
