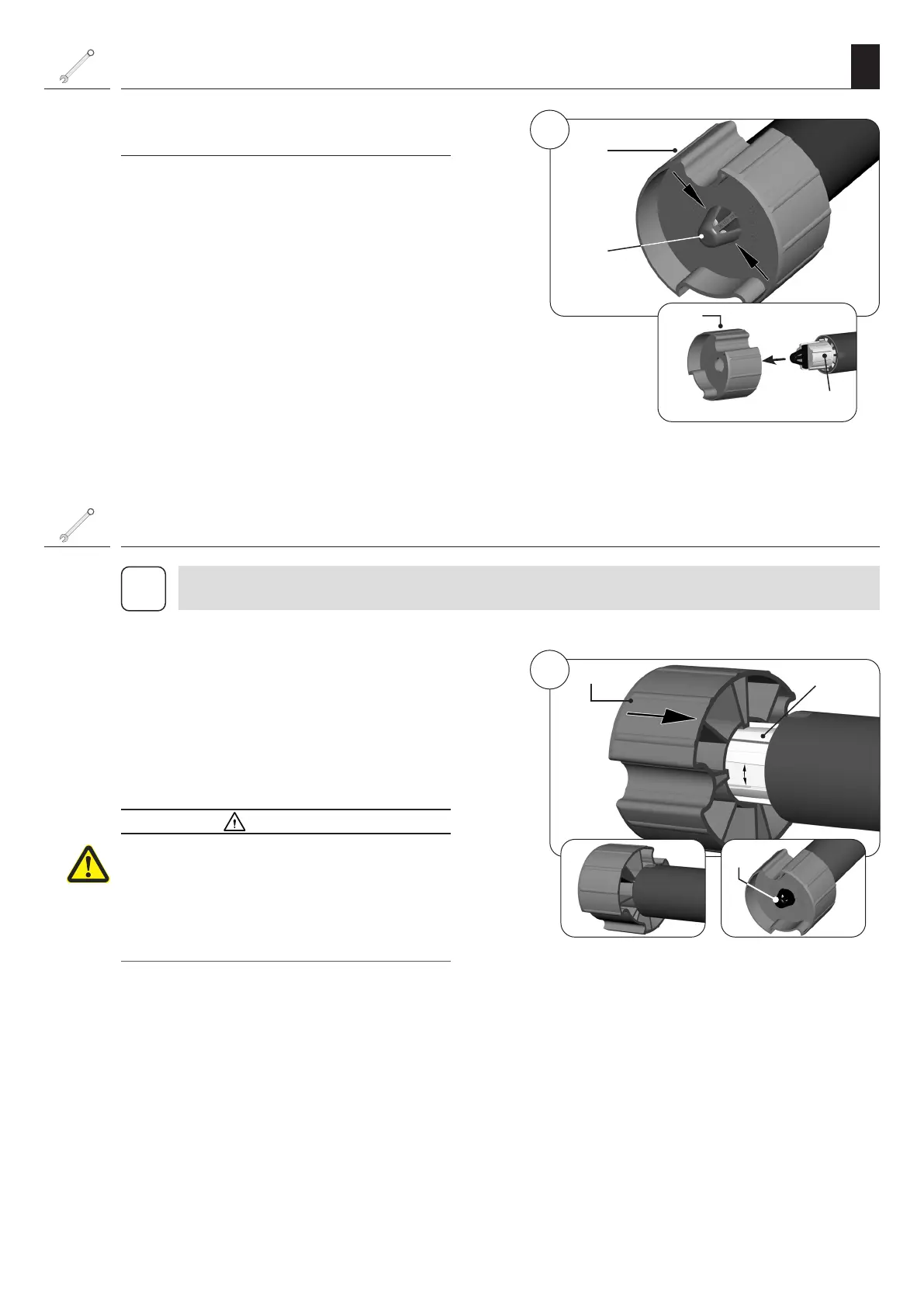

7.3 Dismantling the catch (7)

The catch (7) can be mounted with or without

the freewheel mechanism.

◆ The factory pre-setting for the catch is

“with the freewheel mechanism”.

◆ The catch (7) must ﬁrst be dismantled before

changing the mounting mode.

1. Press the side parts of the retaining clip (8) togeth-

er and pull the catch (10) oﬀ the drive adapter (9).

7.4 Mounting the catch (7) with the freewheel mechanism

1. Slide the catch (7) onto the drive adapter (9) so

that it can freewheel and so that it engages behind

the retaining clip (8).

The catch (7) can be easily turned back and forth

when freewheeling.

If the tubular motor is to be operated with the self-learning end point setting and obstacle detection, the

catch (7) must be mounted with the freewheel mechanism (original factory settings).

ATTENTION!

Installing the catch (7) without the freewheel

mechanism can cause damage to the screen or

lead to malfunctions with the self-learning and

manual end point setting.

◆ Never install the catch (7) without the free-

wheel mechanism.
