45
EN
(5)
(4)
5
6
(1)
(11) Mounting screw
The screws must be flush.
(11)
3
4

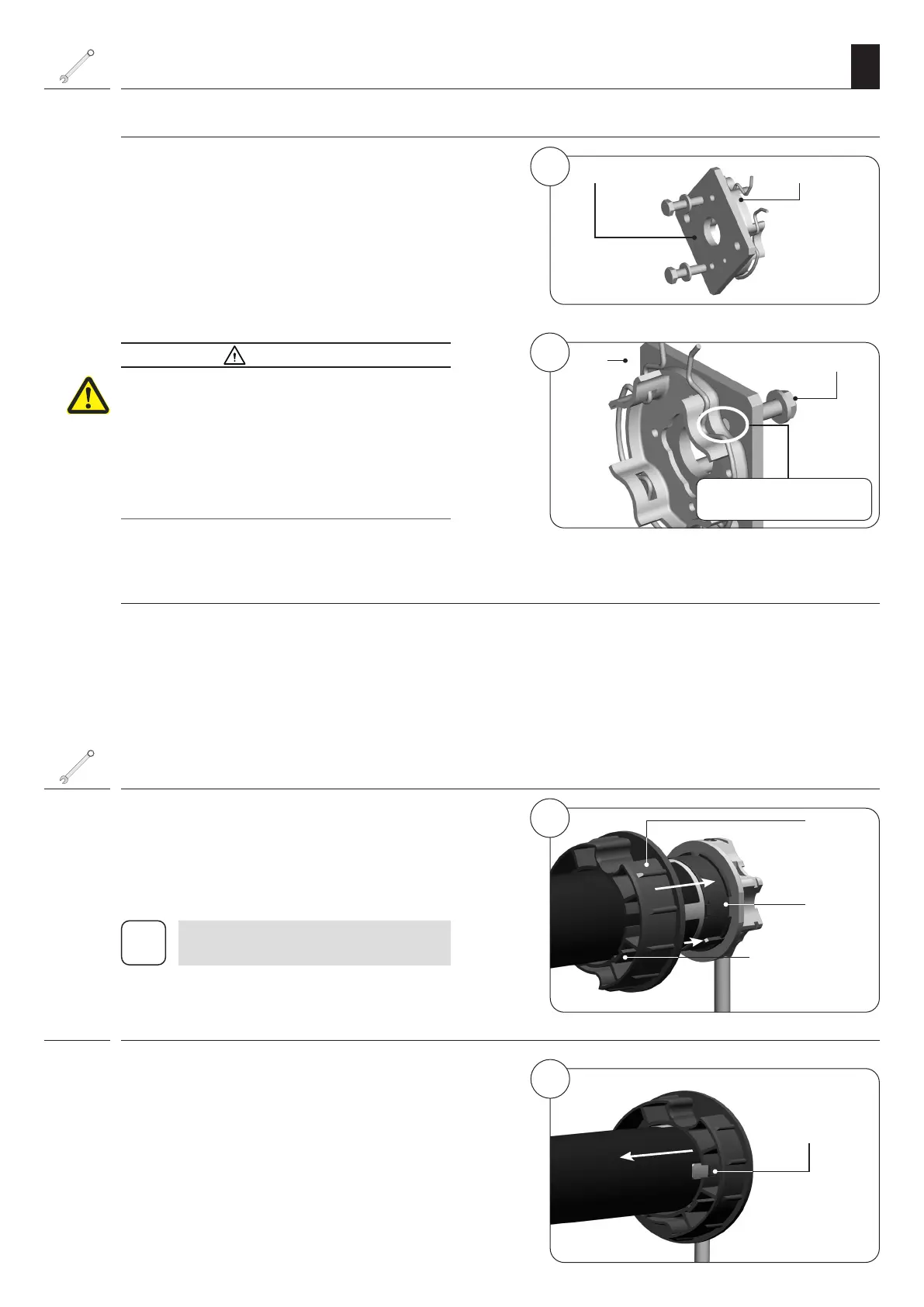

7.2 Mounting/dismantling the adapter (4)
7.1 Mounting the drive bearing (1)
The drive bearing as a click bearing
Mounting the adapter (4)
1. Slide the adapter (4) over the magnetic ring (5) on
the drive head until it engages. Check the correct
positioning of the groove in the adapter.
Dismantling the adapter (4)
1. Press the two retaining springs on the magnetic
ring (5) downwards and pull the adapter (4) off the
magnetic ring.
i
The adapter is supplied pre-installed at
the factory.
Press the retain-
ing spring down-
wards.
Slide the groove
over the lug.
1. Screw the drive bearing (1) to the designated mount-
ing device of the Zip system.
ATTENTION!
If excessively long assembly screws are used,
the drive bearing (1) may be bent or damaged.
◆ The assembly screws must sit flush with the base
plate (11) as otherwise the drive bearing (1) may
be bent and pushed off the base plate.
◆ This applies particularly if the inner assembly
holes are used on the base plate.
Mounting other drive bearing variants
The assembly of other bearing variants is undertaken in the same way as in the previous description. Pay attention to
the special characteristics of the respective bearing type, e.g. the securing of the drive head to the drive bearing with
a cotter pin.
