Attero Tech by QSC unD4I-L
User Manual
QSC, LLC 2020 614-00025

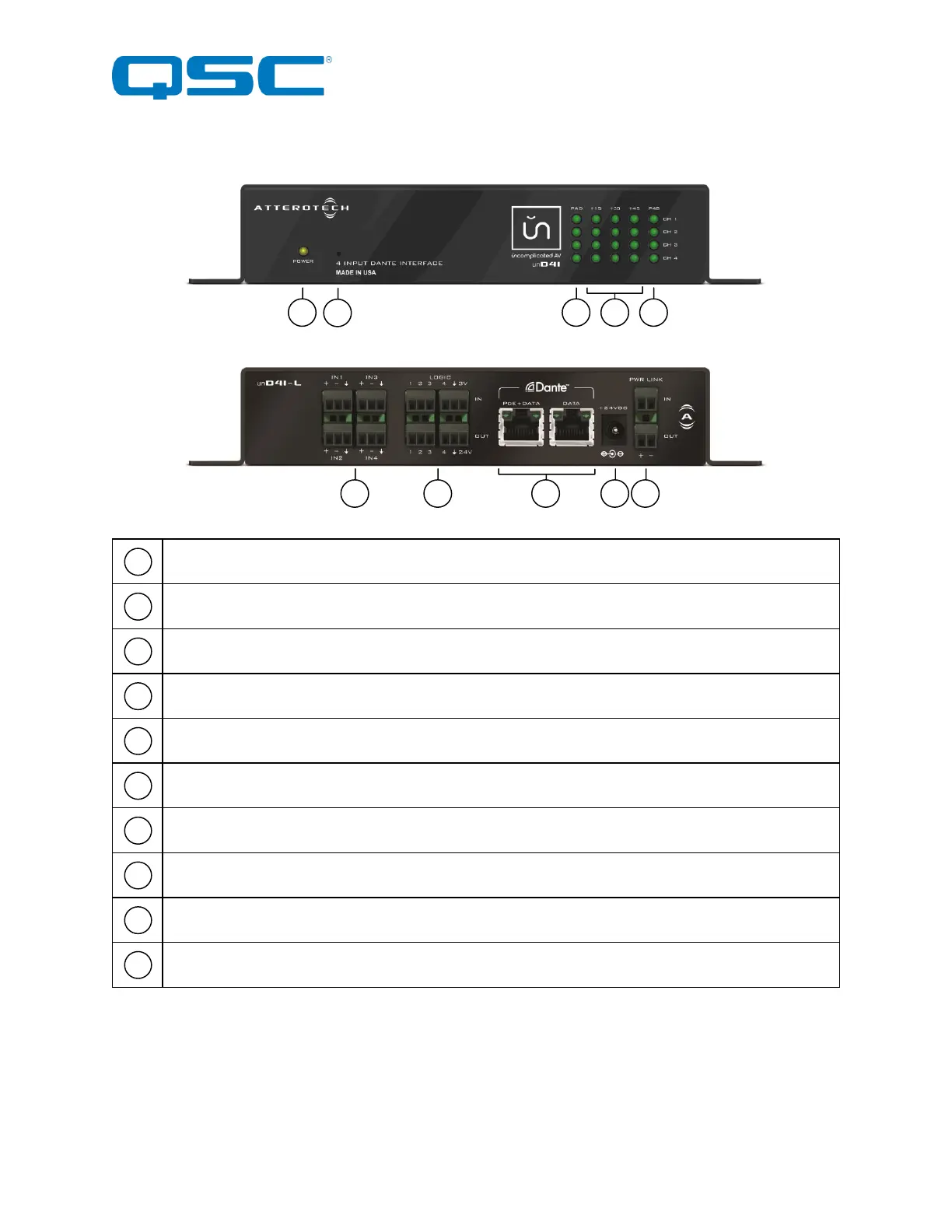

2 – Device Installation
1 3 4 5
6 7 8 A9
2
1
Power LED
2
Factory reset switch access
3
Pad active LED for each input
4
Input gain active indicators for each input
5
Phantom power active LED for each input
6
4 x Balanced audio inputs
7
Four logic inputs and four logic outputs
8
2 x Dante® Ethernet interface connector and indicators
9
Power Socket – Use with optional 24 V DC supply only
A
Power Link input and output
*Note: All devices have a label on one of the mounting flanges shows that devices MAC address. This is important for
initial device identification as the last 6 digits make up part of the devices default network name that is shown when the
device is detected by Dante Controller. The MAC address is also repeated on the bottom of the unit.
