Attero Tech by QSC unD4I-L
User Manual
QSC, LLC 2020 614-00025
1 – Overview
The unD4I-L is a four input Dante interface ideal interface for adding mic/line inputs to a Dante system. It comes in a
small form factor with integrated mounting bracket allowing it to be mounted discretely in small spaces (such as under
desks) close to the sources or sinks to reduce the amount of interference-prone analog cabling that is required.

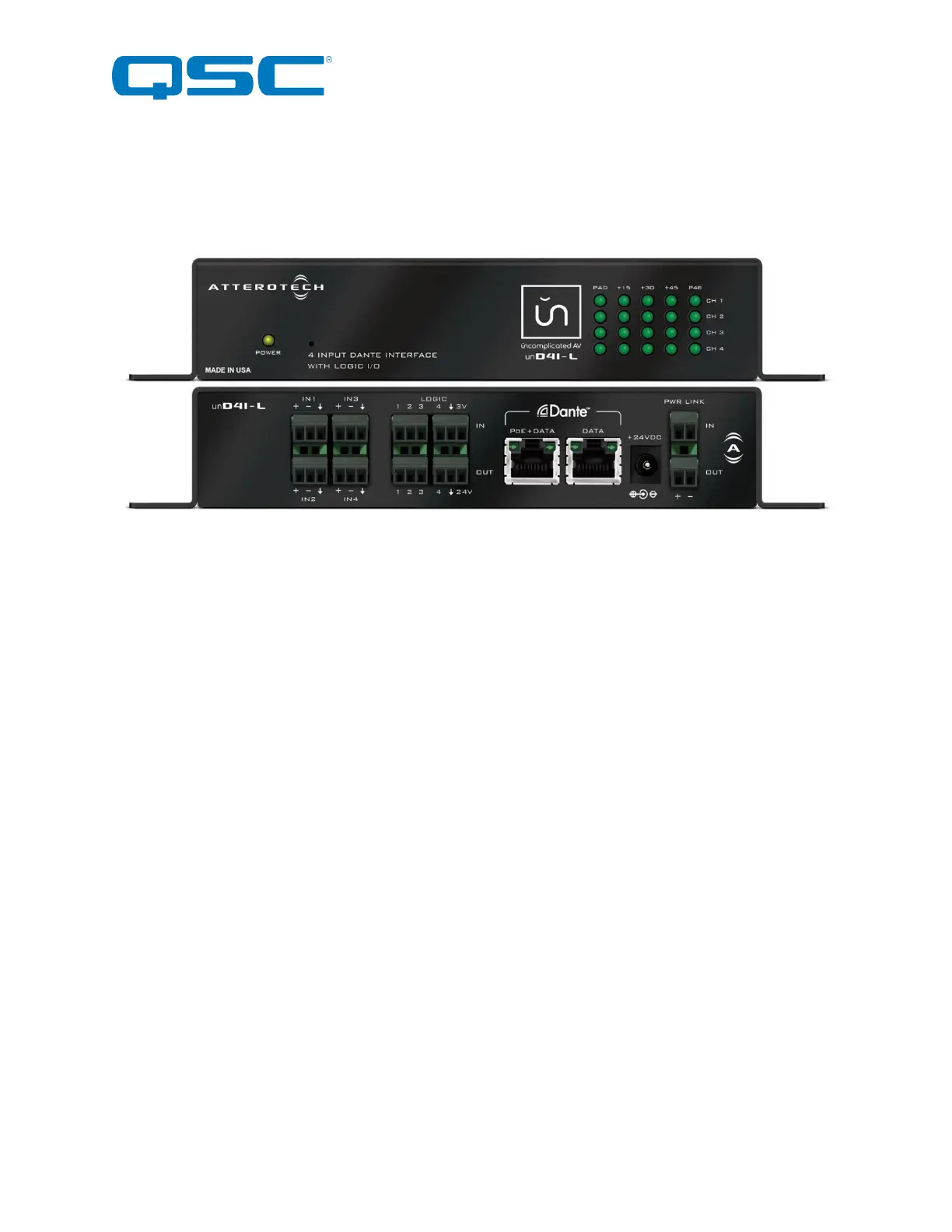

Figure 1 - Front and Rear Panels
The unD4I-L features four balanced mic/line inputs using 3-pin depluggable connectors for balanced or unbalanced
connectivity. Each input supports eight different gain levels from -12dB to +45dB. Each input also supports a +48V
phantom power option. Front panel indicators show each channel’s gain and phantom power status for easy
troubleshooting.
The unD4I-L can be powered by an external +24VDC power supply (ordered separately) but also supports the use of PoE.
This allows them to be powered over the network cable from a suitable PoE source (IEEE 802.3af). The PoE power option
is particularly useful when mounting in a remote location where access to a mains outlet is limited or indeed, non -existent.
There are two network connections to allow daisy chaining. Daisy chaining further simplifies system infrastructure wiring
by allowing multiple devices that support it to use a single CAT 5 home run connection to a network switch. Power can
also be daisy chained to additional devices that support power link connectors.
Audinate’s Dante Controller or other 3rd party manufacturer's Dante routing software can be used to control the audio
routing configuration of the device while the Attero Tech unIFY Control Panel application can be used to configure the
device-specific features. The device also supports control by third party systems allowing external configuration of its
settings such as phantom power and input gain in real time. Further information on 3
rd
party control can be found later
in this document in section 3.3.
Additionally, the unD4I-L has support for four logic inputs and four logic outputs. These GPIO can be read and/or set via
the third party control protocol. The inputs can be read either as a digital on/off or as an analog voltage between 0V and
3.3V (reported as the 12-bit ADC value in decimal). The logic inputs can also be used to trigger a customized UDP event
message. There are several different event modes, selectable on an input by input basis. When an event is triggered, a
custom UDP packet is transmitted to the programmed destination IP address. The logic events, message payloads and
the recipient information are all configurable on an input by input basis. The logic outputs can be controlled remotely
over the network using the third party control protocol or linked to mirror the digital state of one of the logic inputs.
1.1 – What’s in the Box
The device comes supplied with the following:
o unD4I-L device
1.2 – Optional Extras
The following are available as options for the unD4I-L that may be ordered separately:
o 24 V DC power supply (P/N: 900-00175)
