Extraction and installation of sewing needle must be implemented with power off and
comply with the following steps:
Turn "OFF" the power and rotate the hand wheel.

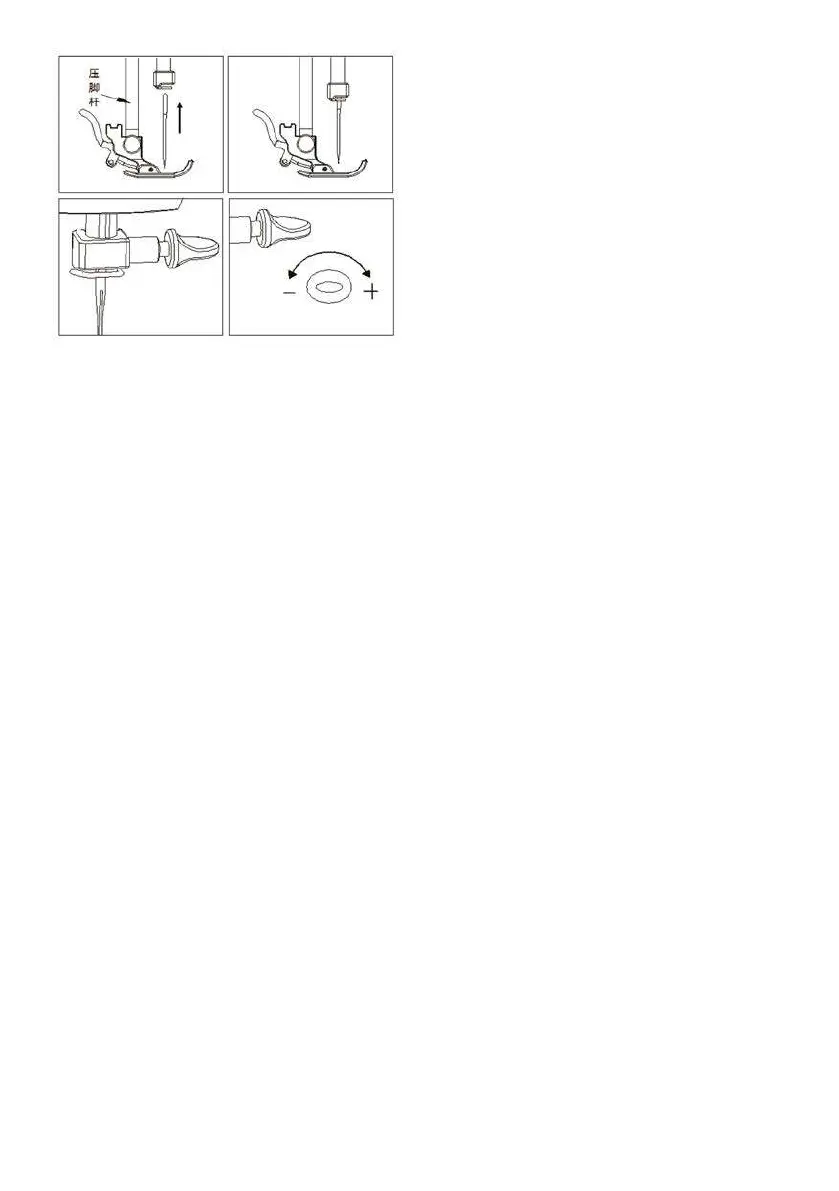

Lift the needle bar and sewing needle to the height shown in the Fig after the hand wheel
rotated, and then stop rotating hand wheel to keep it in static.
Screw counterclockwise to screw off thimble screw.
Take out the sewing needle to be replaced.
Pass the sewing needle through the thread guiding spring by right bottom-up approach
and insert needle bar to its bottom. Then screw clockwise to screw on thimble screw.
Make sure install the sewing needle in place until it can't insert into any more. Normal
sewing needle installation must insert 7.5mm into the end of needle bar(shown in Fig),
otherwise, it will cause firing-pin, thread hook, or skipped stitches.
The plane position of the needle needs to be behind.
Operation
NOTICE
Texture-relative attentions:
The machine can't provide ordinary sewing to elastic textures, such as towel cloth, lint,
elastic knitted fabric, etc.
Keep in strict accordance with the following steps in sewing.
Function adjustment wheel is not allowed to rotate when the machine is running.
Adjustment of function adjustment wheel requires rotating counterclockwise the hand
wheel to lift the sewing needle to the highest position.
Pattern selecting
CAUTION
Risk of damage!
Do not turn the pattern selection wheel when the needle is down into the fabric.
Otherwise, the needle may bend or break.
