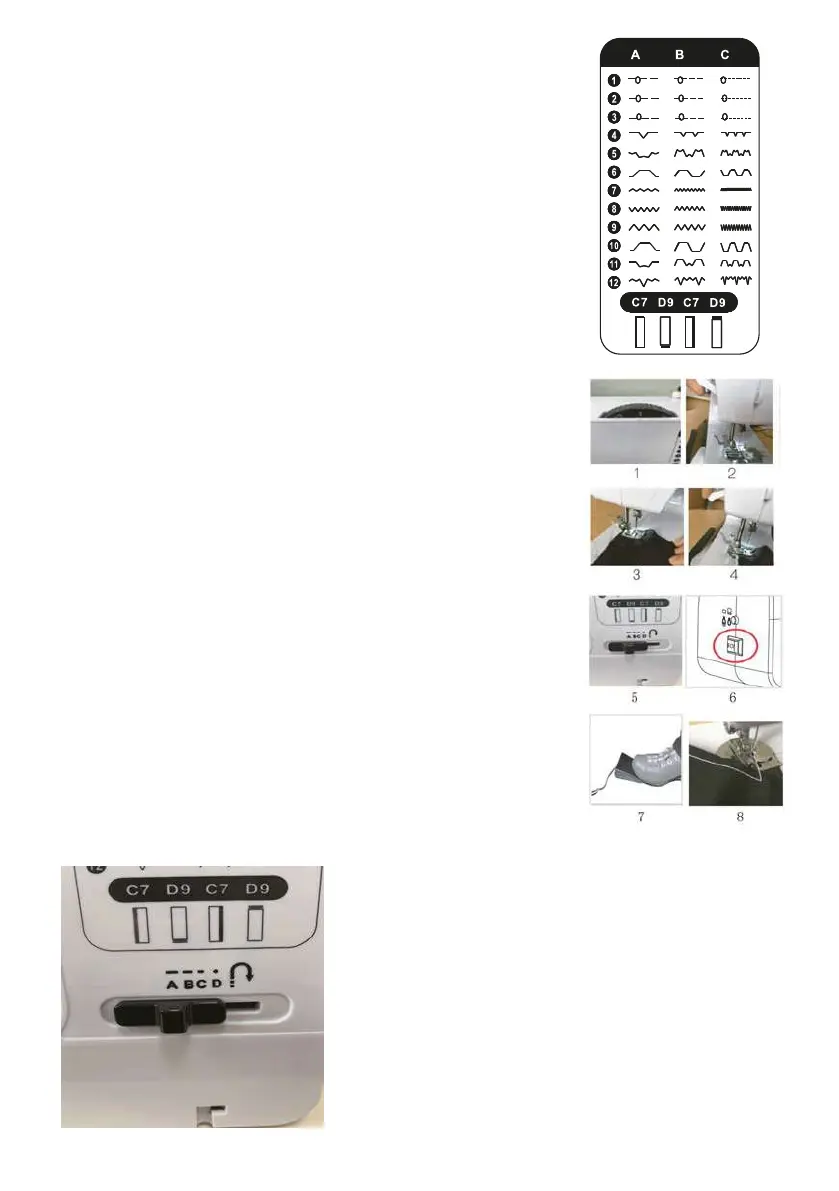

Straight sewing
CAUTION
Risk of damage!
The upper and bobbin threads must be threaded properly.
The correct upper thread tension must be set.
1. Select different stitch. Stitch 1-3 for Straight line sewing.
2. Move presser bar lifter upward, lift press faot and pull the
bobbin thread and upper thread backward far about 10cm.
3. Put fabric under the press faot and move presser bar lifter
downward to hold the fabric.
4. Turn to A or B.
5. O is pedal mode(manual),I and II are automatic
mode.l is low speed,11is high speed.
6. Switch on O, then stamp foot pedal gently to start sewing.
7. Rotate counter clockwise the hand wheel after finishing
sewing to lift
the needle to highest position. Then move presser bar lifter
upward and lift presser faot to move out the texture and cut
thread with cutter.
Reverse sewing
NOTICE
Do not add more than 6 reverse stitches at a time.
Move button to reverse when finishing sewing and sew
several stitches to strengthen stitches for loose prevention,
show in Fig. Reverse stitches shall not exceed 5cm. After
sewing, move button to A/B position, and the machine will
start sewing forward again. Reverse sewing distance is
1.5~4.5mm.
It requires accomplishing "preparation before
operation" step by step described in the
instructions before sewing.
Different stitches of sewing can be selected by the
function adjustment wheel whose numbers are
corresponding to the figure shown on functions
indication panel, enabling you to choose different
stitches according to different needs. Please refer
to the fallowing Figs for more information.
