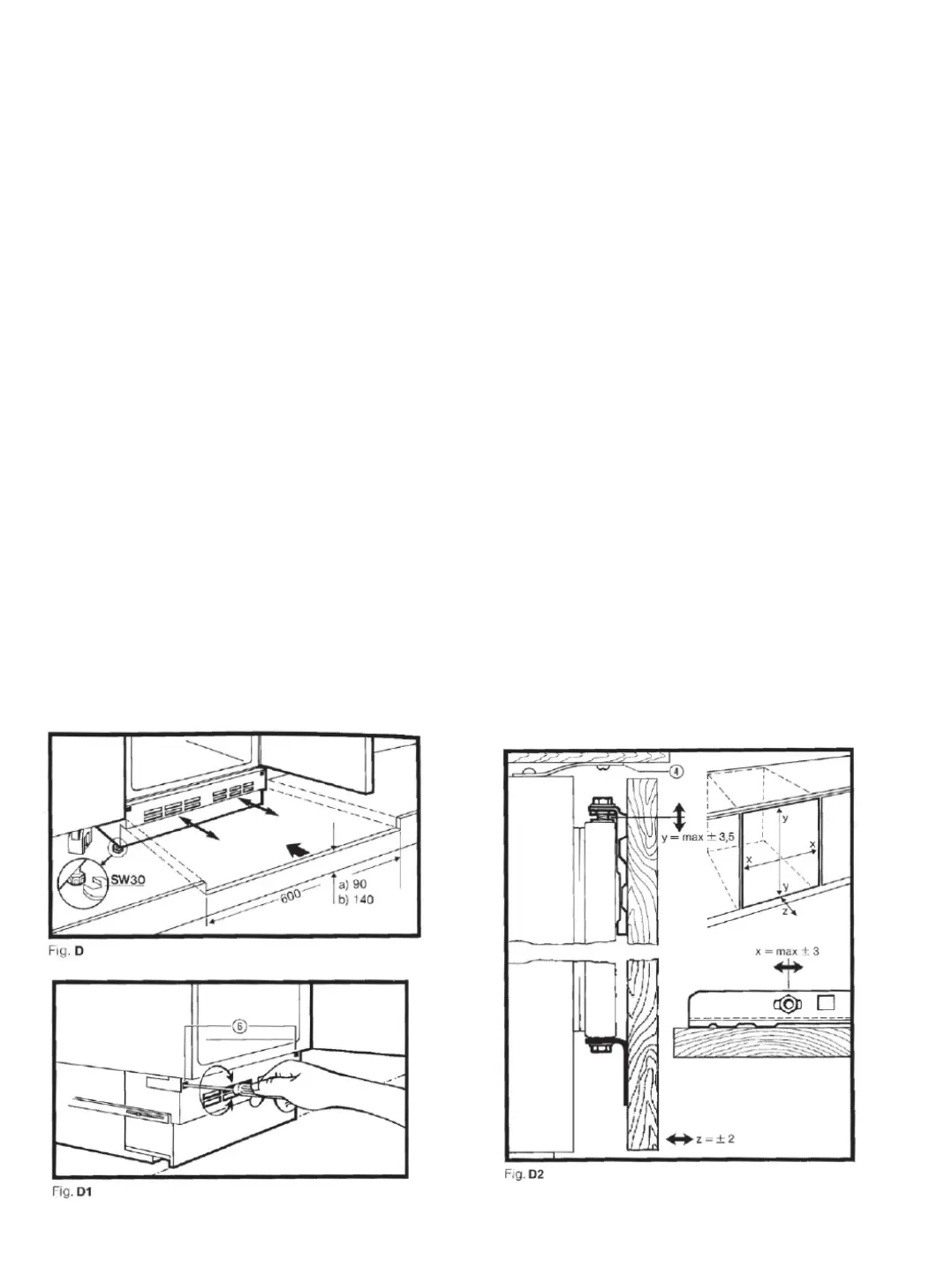

Installing under the worktop
• The appliance can be installed into a niche with a height between 820-870mm. The height of
the appliance can be increased by adjusting the feet using a 30mm open-ended spanner as
shown in Figure D.
• 820mm high opening – Locate the appliance into position and level accordingly.
• 870mm high opening – Increase the height of the feet by approximately 50mm. Locate
the appliance in posi
tion and level accordingly.
• Once in position, ensure the décor door panel lies flush with the adjacent cabinetry then fix the
appliance to
the underside of the worktop by means of the stability bracket (4) (See Fig D2).
Adjusting the plinth depth
Using the appliance’s plinth:
• Open the appliance door.
• Grip the appliance’s plinth and pull forwards until it is aligned with the plinth of the adjacent cabinetry.
Using a continuous plinth:
• Open the appliance door
• Grip the appliance’s plinth and pull forwards until aligned with the rear of the continuous plinth.
• Cut away the continuous plinth as shown in Figure D, ensuring the ventilation slots are not blocked.
• In both cases, secure the plinth in position by turning the screws (6) clockwise until considerable
resistance is felt, as shown in Figure D1.
１６
