Final adjustments to the décor door panel
Once the appliance is in its final location, it may be necessary to make some minor adjustments
to the decor door to ensure correct alignment.
If necessary:
• Loosen the locking nuts
• Adjust the height of the adjusting pins Y as required to a maximum of + or – 3.5mm as shown in
Figure D2 overleaf.
• Adjust the side measurement X by means of the slots in the mounting bracket as shown in
Figure D2 to a maximum of
+
or – 3mm
• Unscrew the adjusting pins until contact is made with the mounting plate then secure in position
with the locking nuts.
•
Once final adjustments have been made, take the 2 “L” shaped brackets supplied with the fixing
kit and locat
e loosely in the pre-drilled holes on the underside of the appliance door (as shown in
Figure D2).
• Secure in position on the décor door using 4 screws.
• Re-position and tighten the screws on the underside of the appliance door.
IMPORTANT – Once

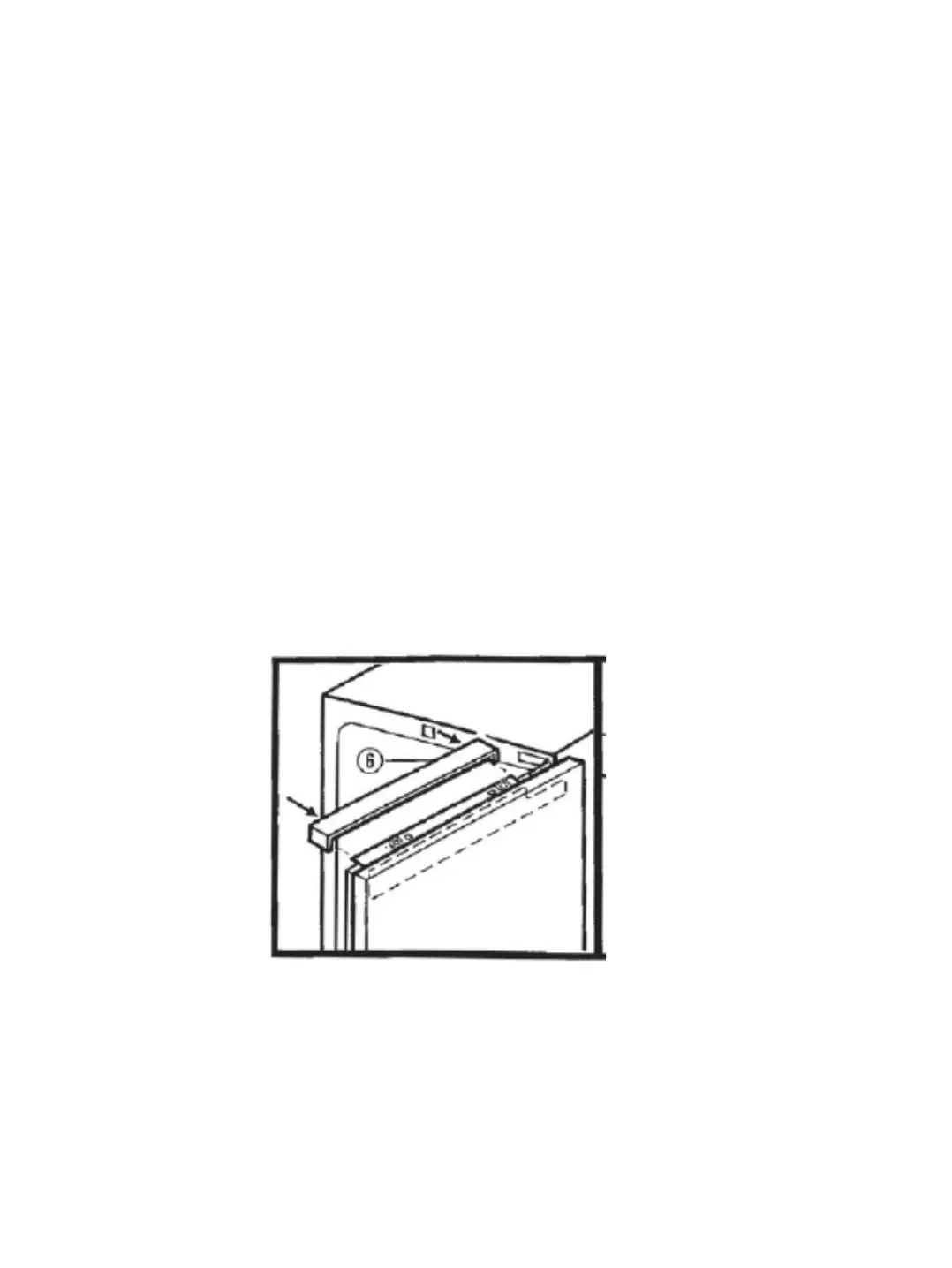

installation is complete re-fit the cover trim as shown in Figure D3 as this
turns the light of
f when the appliance door is closed.
Fig. D3
