17
3 Fat Channel Controls
3.4 Limiter
UC Surface
Reference Manual
10. High Shelf EQ On/O. Enabling the High Shelf button turns the High band
into a shelving EQ. A high shelving EQ is like a treble-control knob on a stereo.
In this mode, the Center Frequency control selects the shelving frequency.
11. Output Meter (Series III only). Displays the post-EQ output signal.
12. Post (Series III only). Enables the RTA to displays the post-Fat Channel signal.
13. Pre (Series III only). Enables the RTA to display the pre-Fat Channel signal.
14. RTA (Series III only). Turns on the RTA in the EQ graph.
Note: StudioLive AI-series mixers feature the SMAART RTA and Spectrograph tools.
Please see Section 4.1 for more information.
15. EQ Type (Series III only). This drop down menu allows
you to select the EQ type for the current channel.
3.4 Limiter

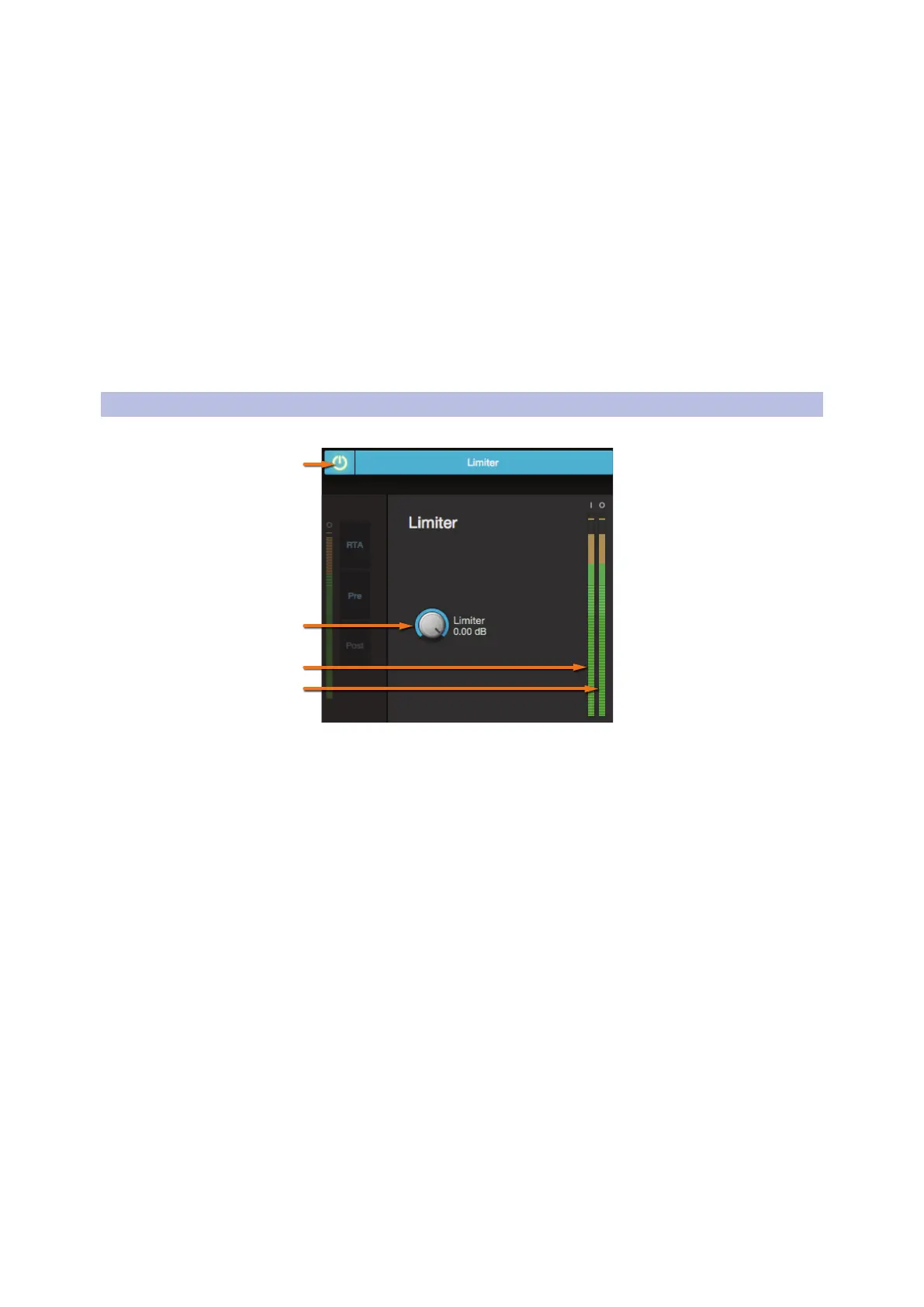

To view the controls for the limiter, click on the Limiter tab.
1
2
3
4
1. Limiter On/O. Turns on the limiter for the
selected input channel. The ratio is ∞:1.
2. Limiter Threshold. Sets the threshold of the limiter for the selected
channel. When the signal’s amplitude (level) exceeds the threshold setting,
the limiter is engaged. The threshold can be set from -28 to 0 dB.
3. Input Meter (Series III only). Displays the input signal to the limiter.
4. Output Meter (Series III only). Displays the outputs signal to the limiter.
